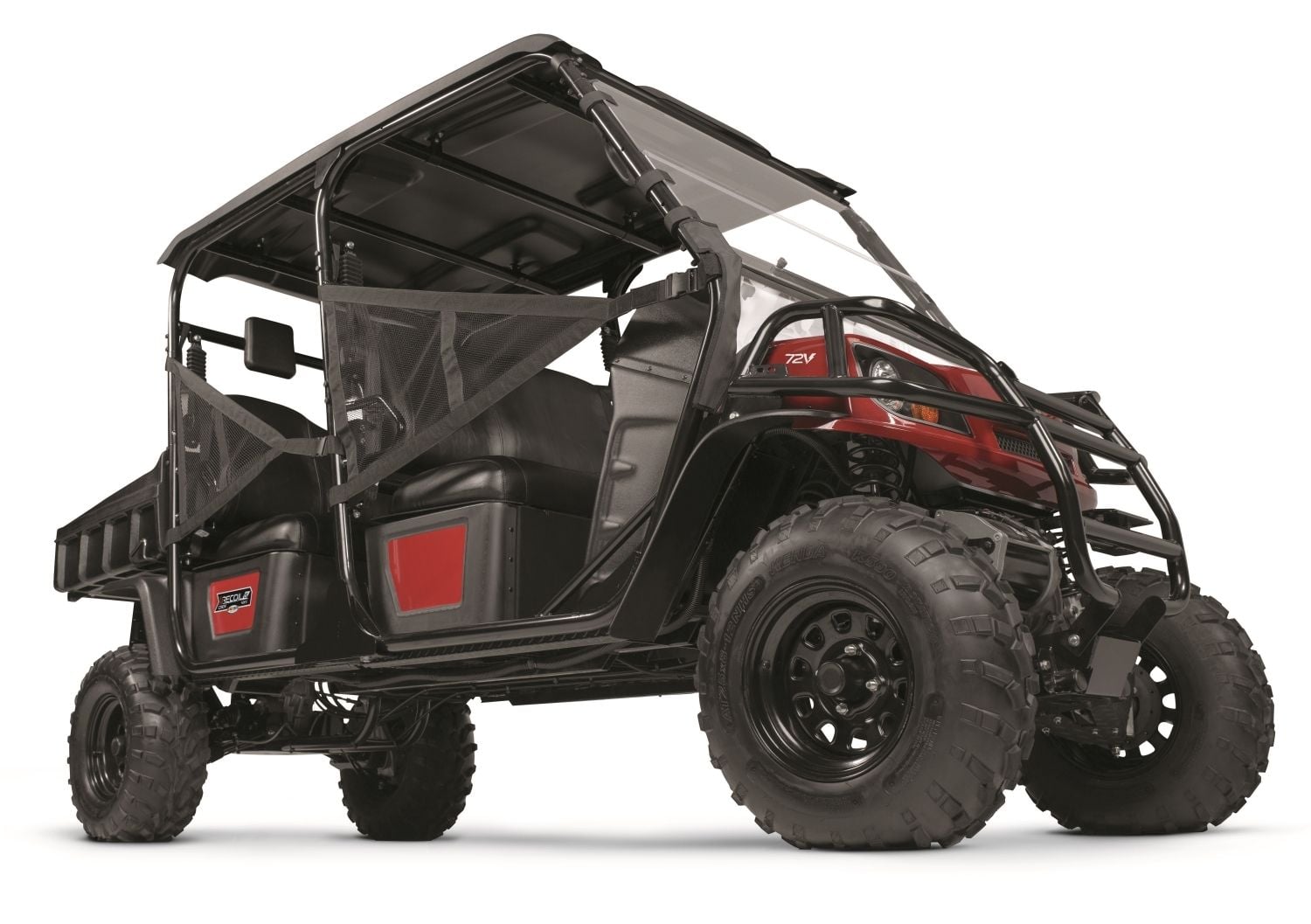

Bad Boy Buggies Recoil iS Crew
The Recoil iS Crew from Bad Boy Buggies is the perfect recereational and hunting vehicle. Built tough this Bad Boy will get you anywhere.
Standard Features
72V AC dual motor system
4 forward facing seats
5.9 cubic foot cargo bed
On board charger option
9-8V batter configuration
Under seat rear storage
Ergonomically contoured seats
Ergonomically improved dash with storage
New rear body styling
Options/Accessories
Specifications
Overall Length: 371 cm
Overall Width: 137 cm
Overall Height (with canopy): 194 cm
Wheel Base: 272 cm
Ground Clearance (at differential): 20cm
Power Source: 72 Volts DC
Motor Type: Front 72 V, Rear 72 V
Electric System: 72 Volt
Horsepower: 38 hp (16.7kW) Peak
Battery (qty/type): Nine, 8 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: Onboard, 72 V DC
Speed Controller: 300 Amp AC Controller
Rear Axle Ratio: 17:1
Seating Capacity: 4 Person
Vehicle Load Capacity: 953 Kg (Inc Passengers)
Steering: Rack and Pinion
Front Suspension: Macpherson Struts
Rear Suspension: Macpherson Struts
Service Brake: 4 Wheel Hydraulic Disk Brake
Parking Brake: Hand Actuated
Frame: Welded steel with powder coat protection
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
)
)
