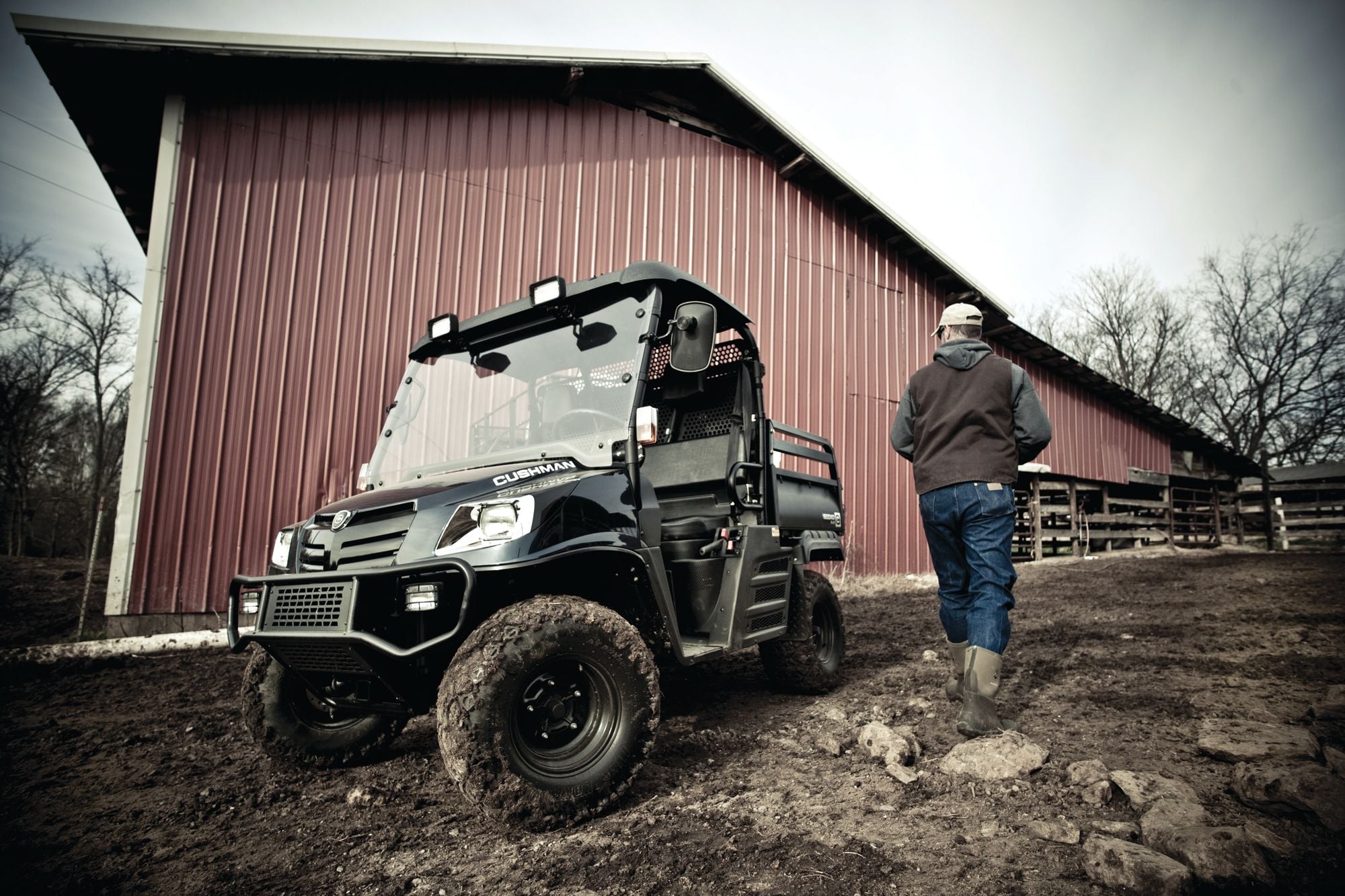

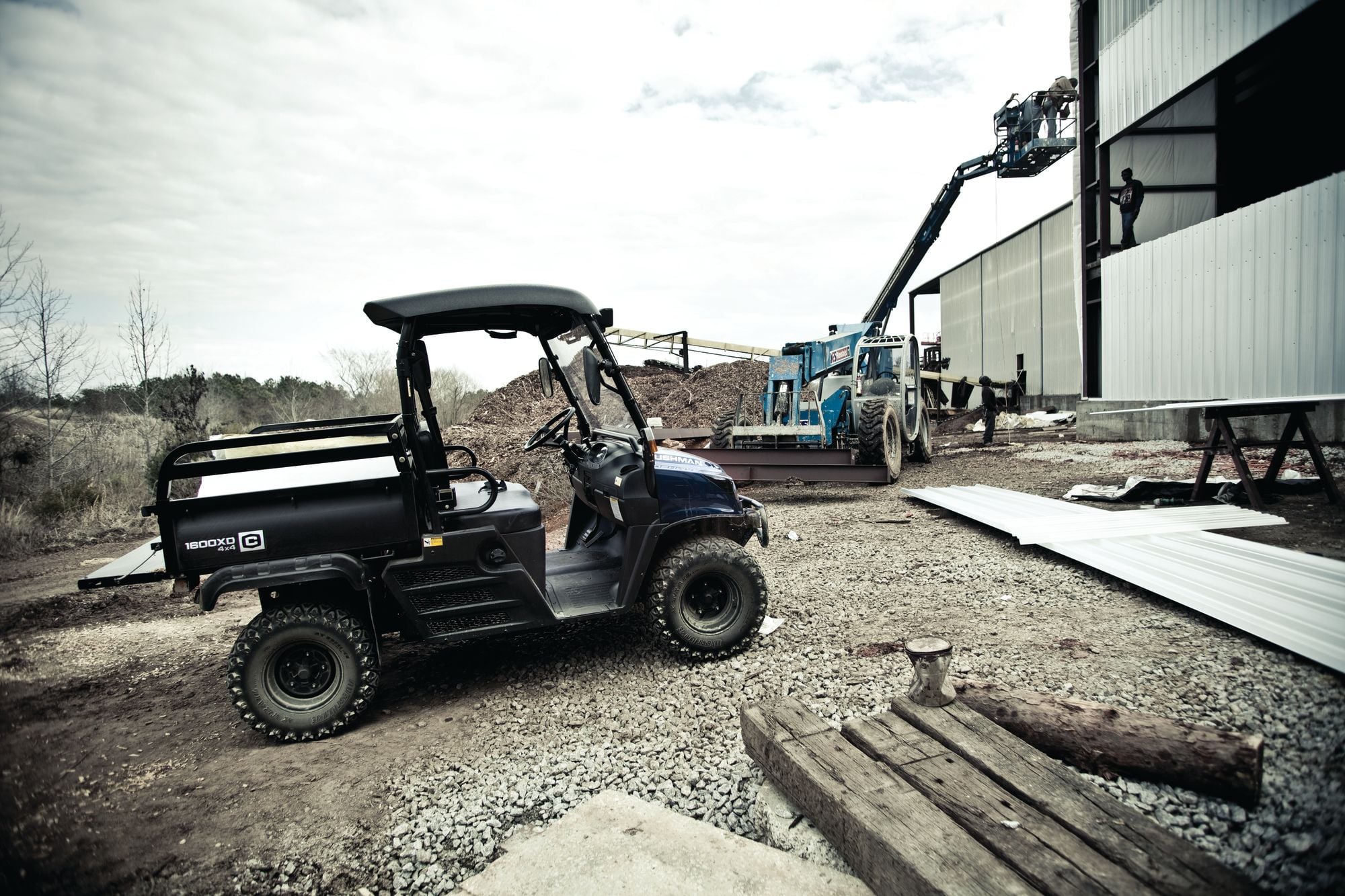

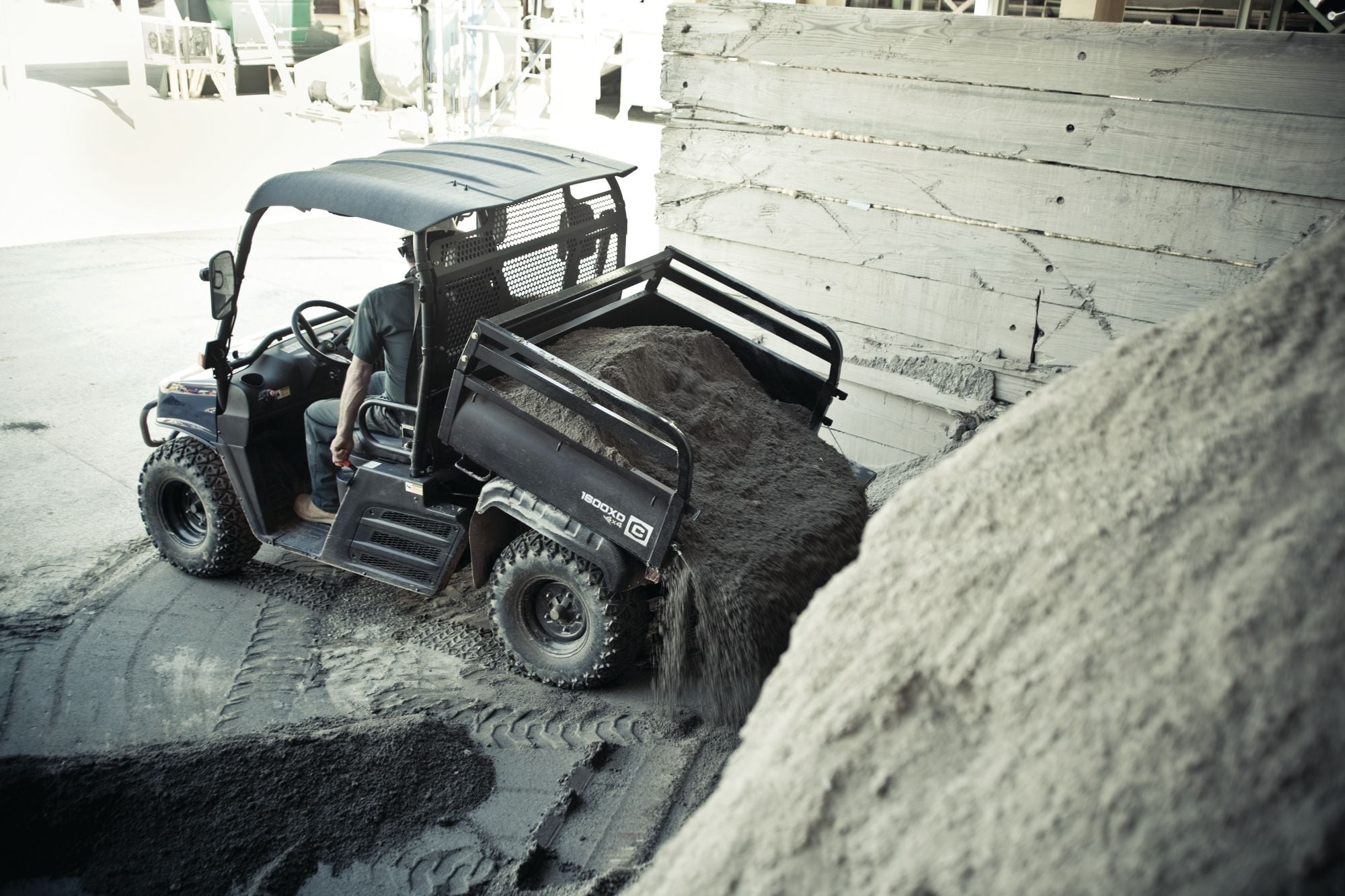

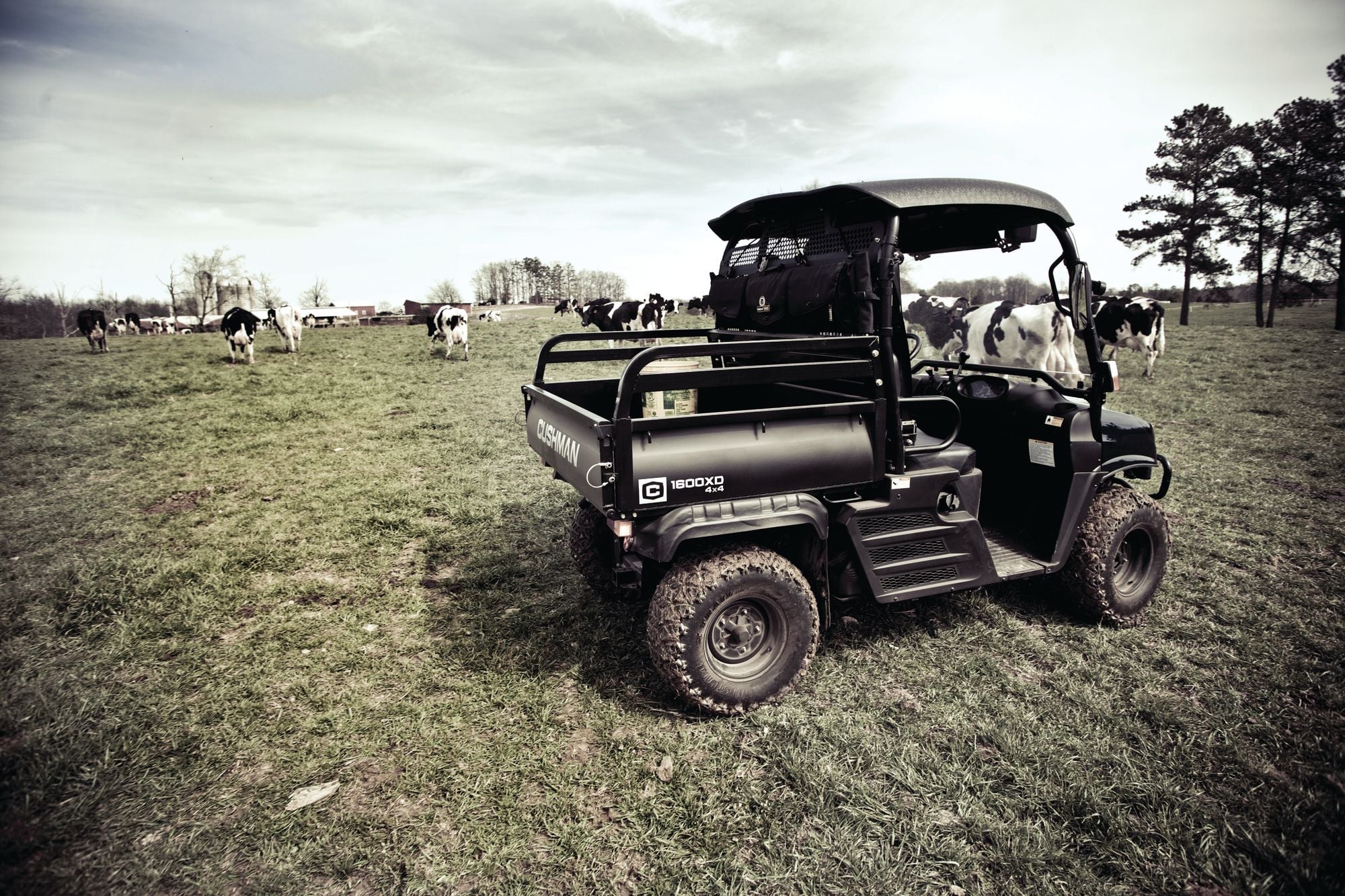

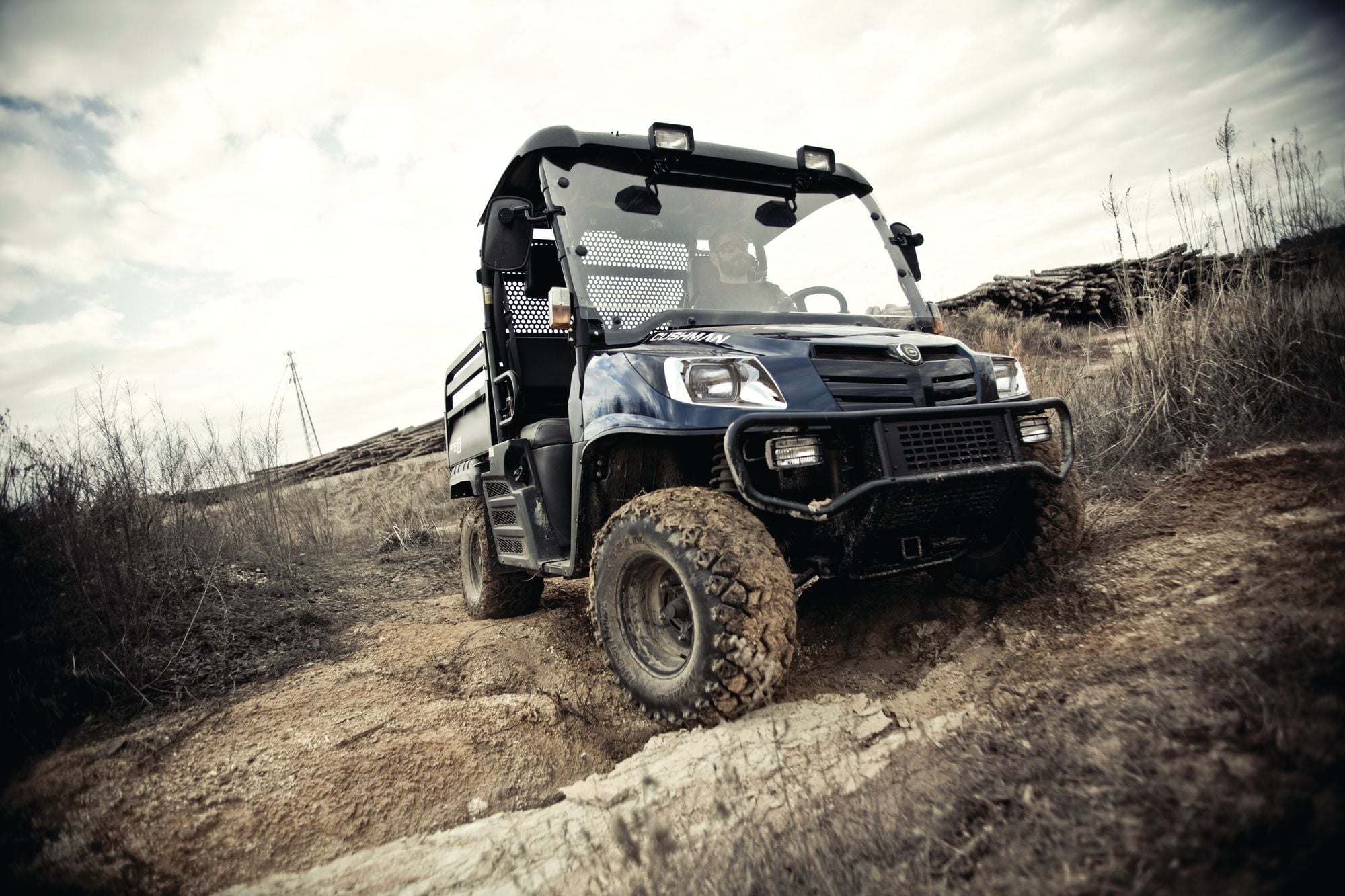

Bad Boy Buggies XD

The 1600XD combines four-wheel-drive with a 22-horsepower diesel engine. Automatic, continuously variable transmission has low- and high-gear ratios, a user-selectable locking rear differential, four-wheel independent suspension, and a maximum vehicle load of 1,600 pounds.

Specifications

Dimensions

Overall Length: 290.5cm
Overall Width: 154.2cm
Overall Height (with canopy): 194.1 cm
Wheel Base: 194.1 cm
Ground Clearance (at differential): 30.5 cm

Power

Power Source: 61.5 ci(1007 cc) Cylinder Diesel
Valve Train:  3-Cylinder OHV
Electric System: Starter/Alternator
Horsepower: 22.4 hp (16.7kW) Peak
Battery (qty/type): One, 12 v Maintenance Free
Key or Pedal Start: Key Start
Air Cleaner: Dry-Cyclone Type
Lubrication: Pressurized Oil System
Oil Filter: Spin On
Cooling System: Liquid Cooled
Fuel Capacity: 28 L
Drive Train: Belt, Continiously variable transmission, CVT
Transaxle: Differential Lock (Limited Slip Diff on Front Axle)
Gear Selection: Forward H -Forward - L - Neutral-Reverse

Performance


Seating Capacity: 2 Person
Curb Weight: 765 Kg
Vehicle Load Capacity: 726 Kg
Safety: 3-point seatbelts and rollover protection system
