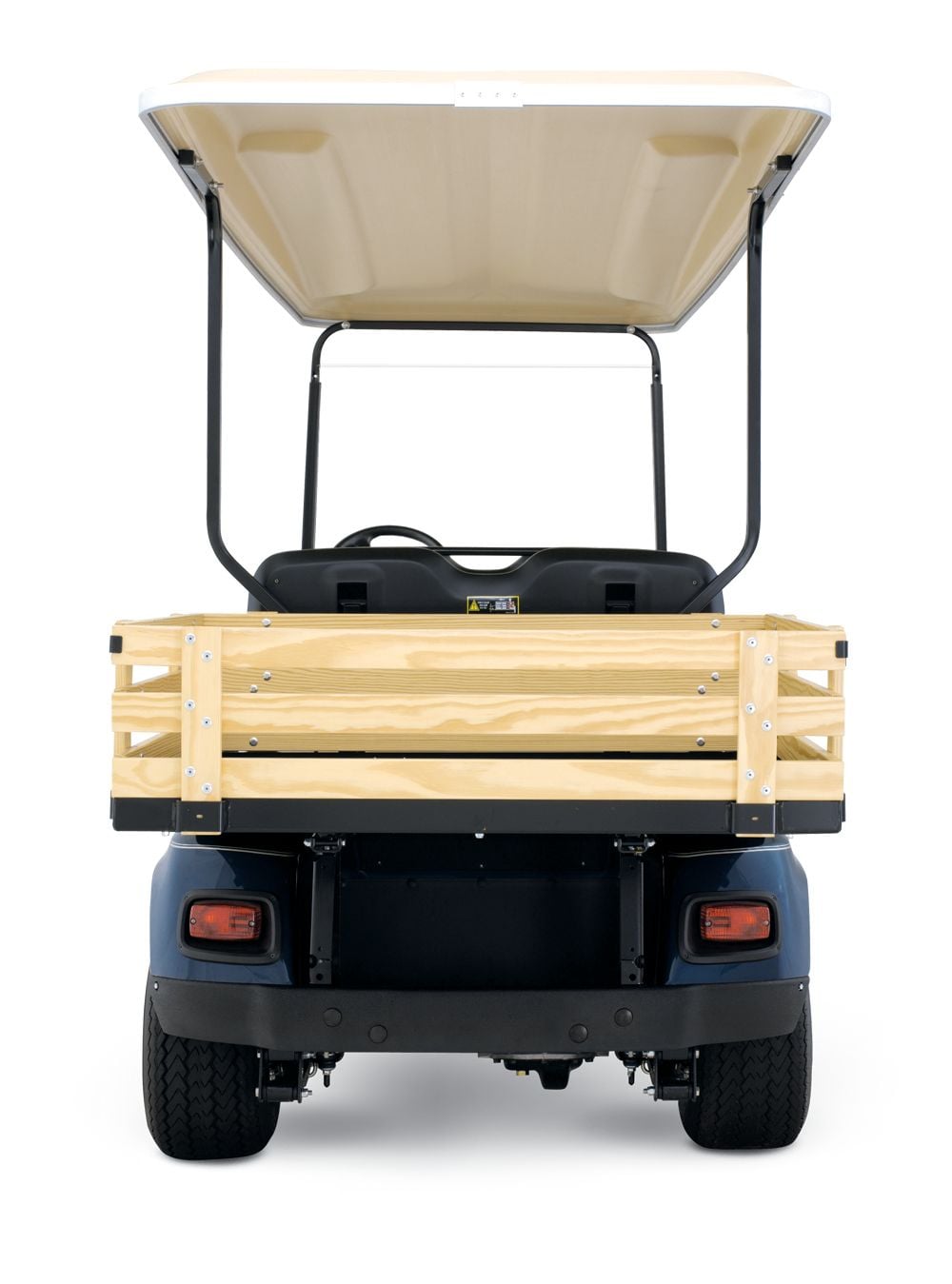

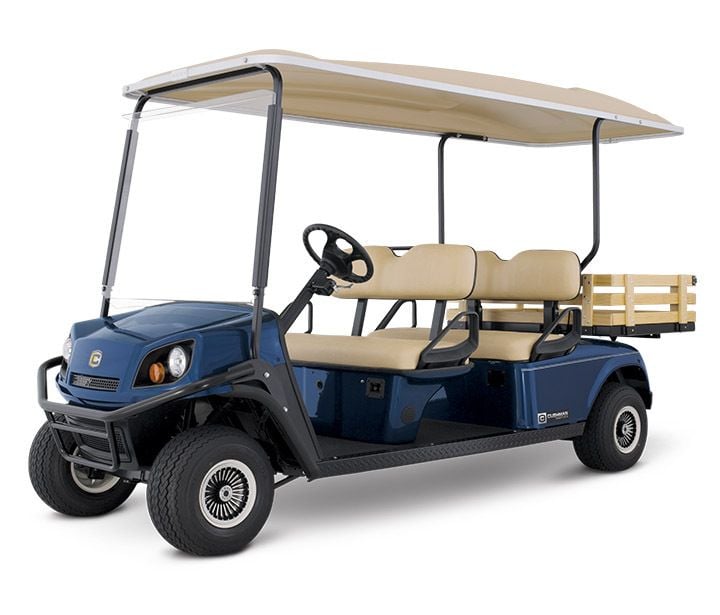

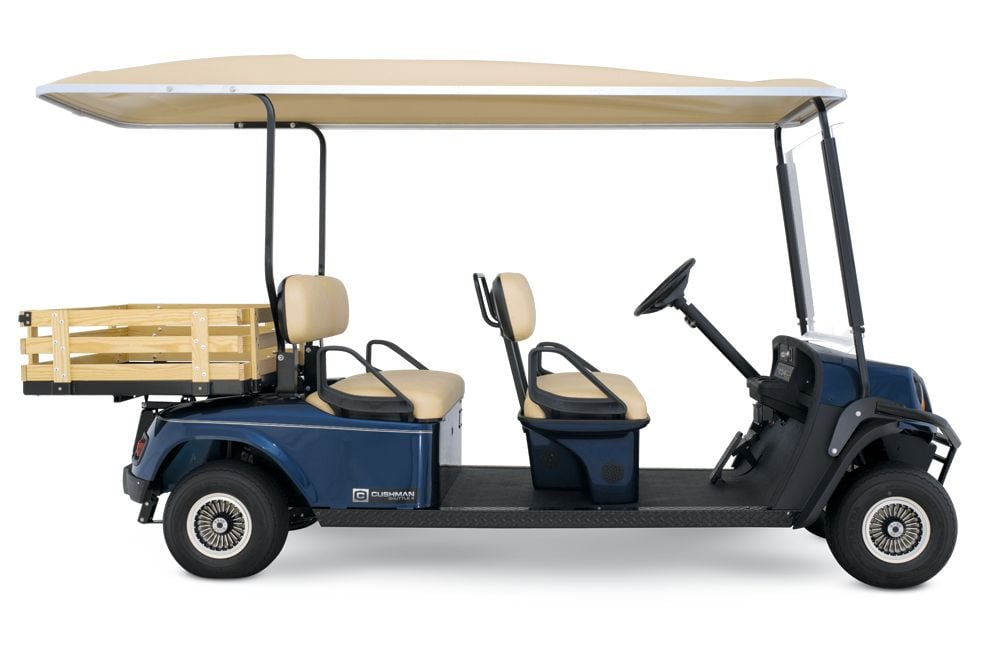

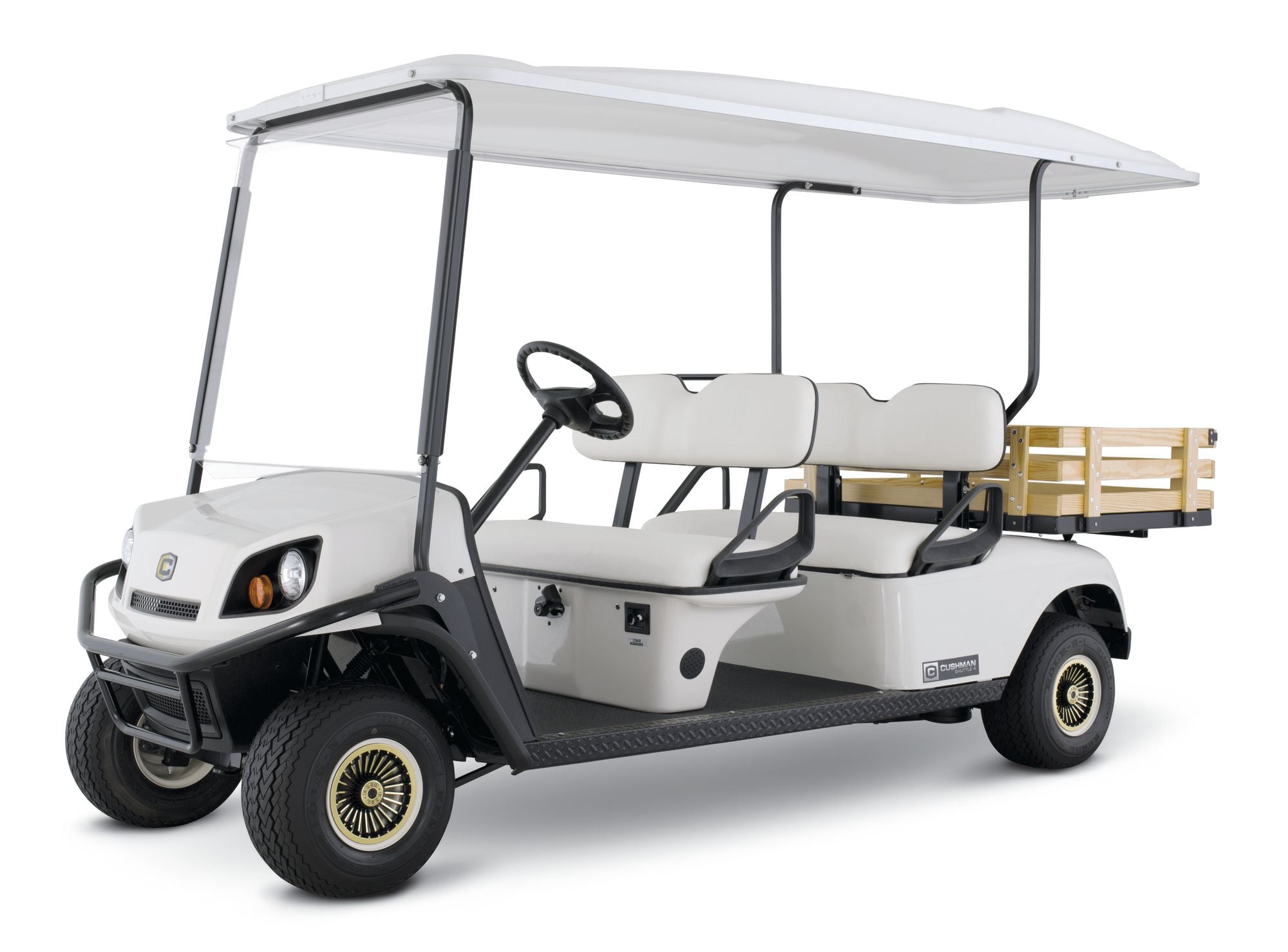

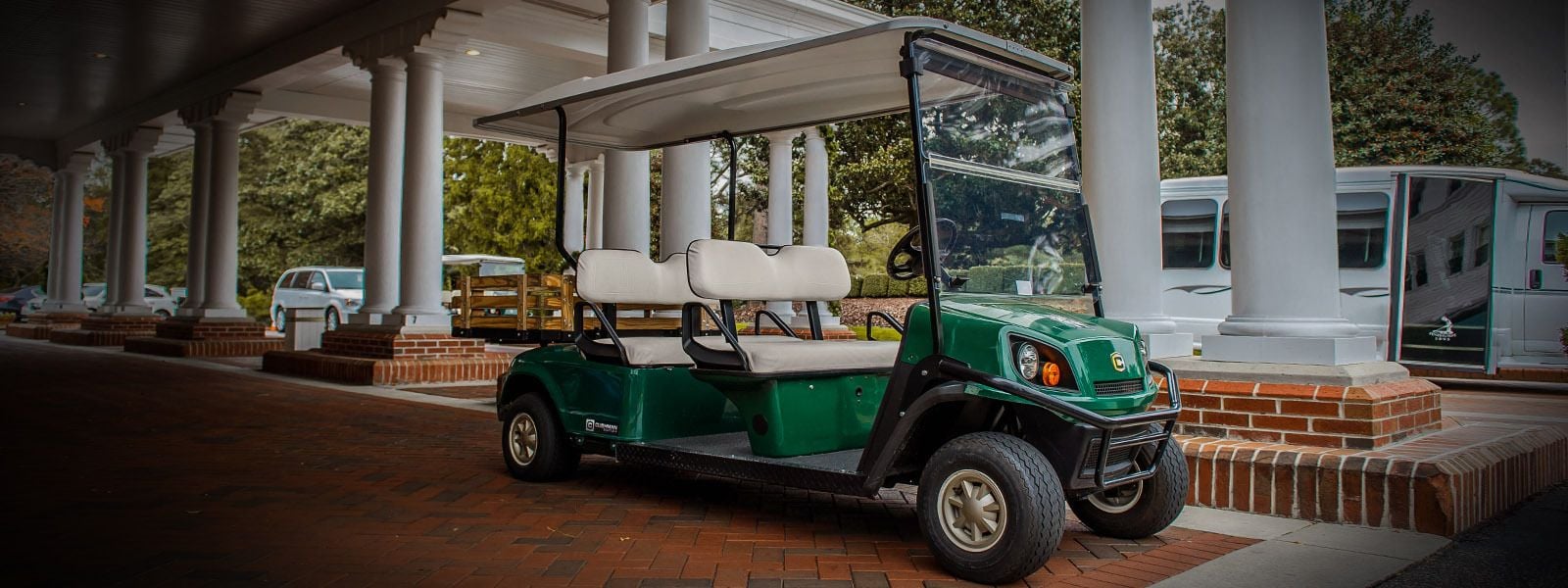

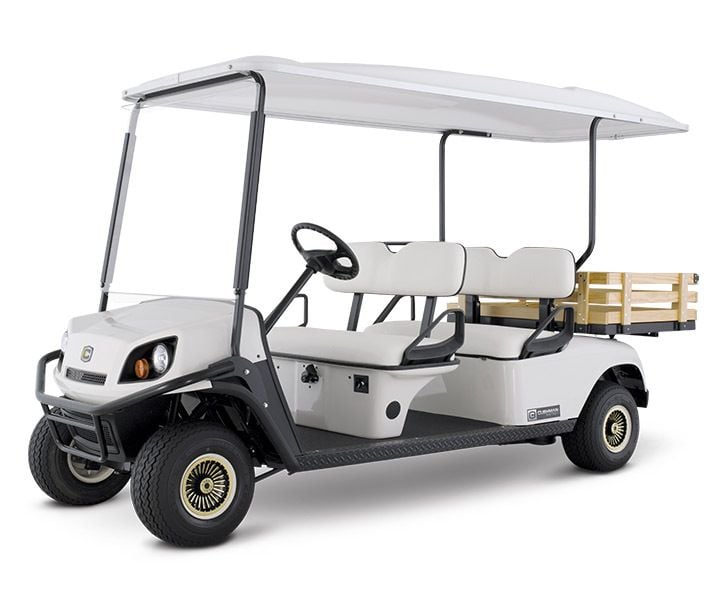

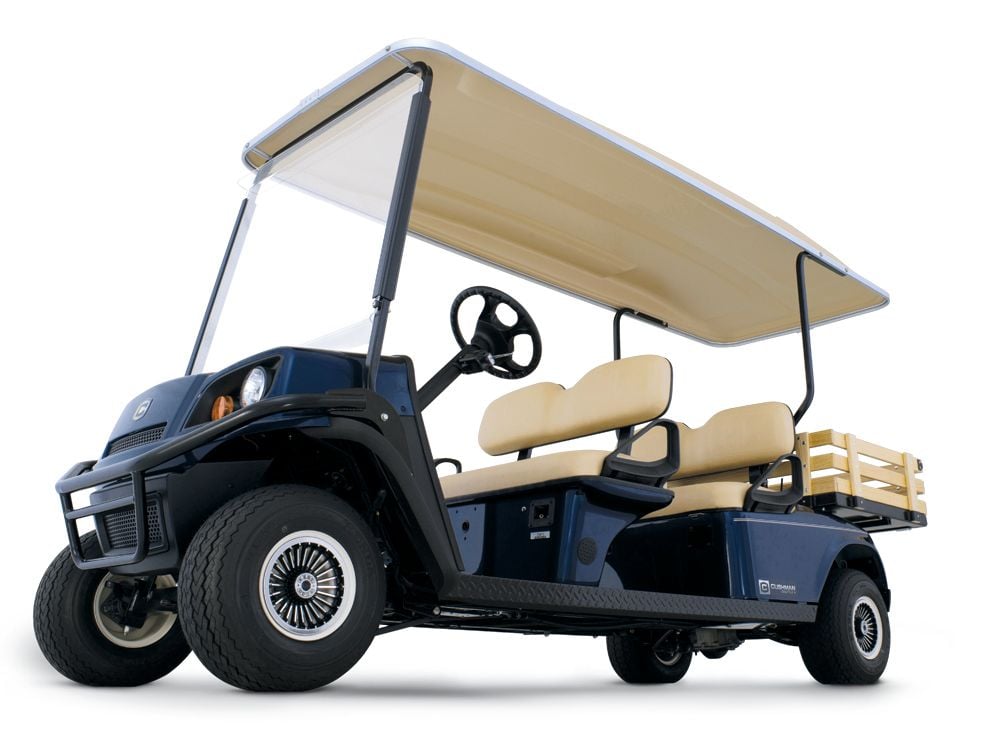

Shuttle 4 - Petrol

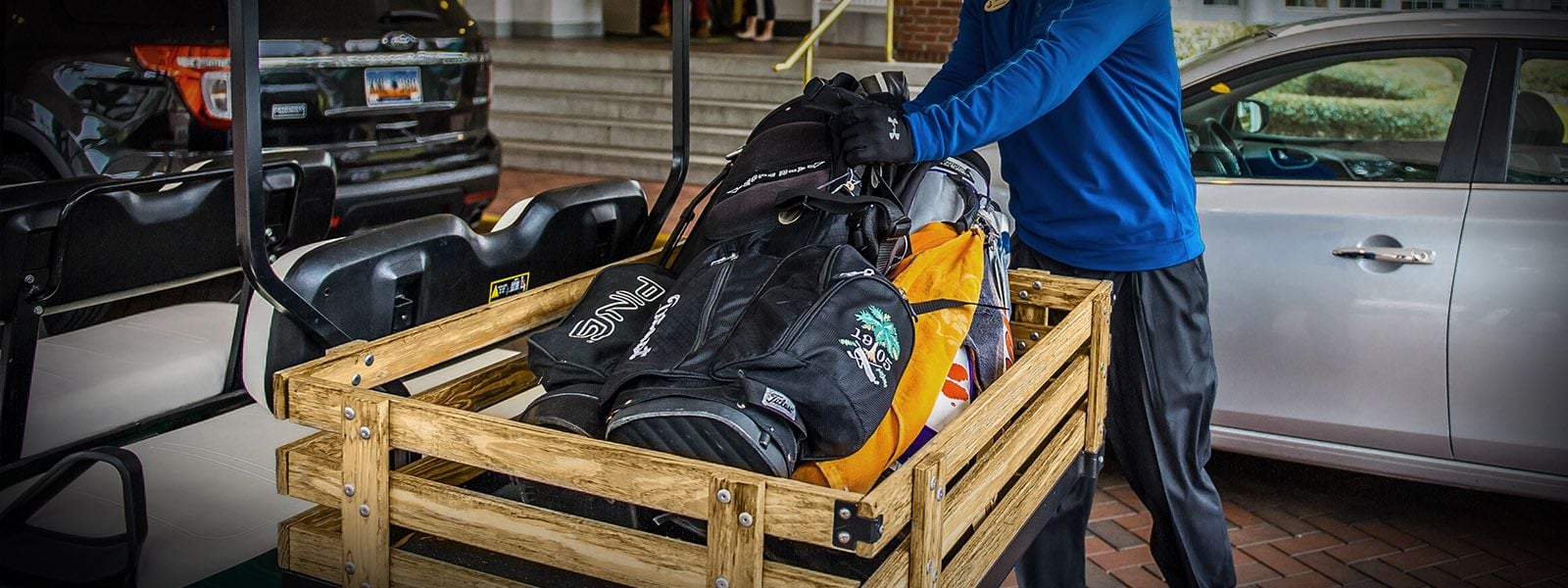

Throw your bags and supplies in the back and let's get moving. The Shuttle 4 offers extra space for luggage, gear and more, so you can help workers, guests and volunteers get all their stuff wherever it needs to go quickly.

Specifications

Dimensions

Overall Length: 339 cm
Overall Width: 119 cm
Overall Height (with canopy): 183 cm
Cargo Box Capacity: 9 Cu ft (0.25m³)
Cargo Box Material: Wood Stake Sides


Power

Powertrain: 4 Cycle, 24.5 ci (401cc) Cylinder
Valvetrain: Single Cylinder OHV
Horsepower: 13.5 hp (10.1kW) Exceeeds SAEJ1940 Standard
Electric System: Starter/Generator. Solid State Reg
Battery (qty/type): One, 12v Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner: Replaceable Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin On
Cooling System: Air Cooled
Fuel Capacity: 22.7 Litre
Drive Train: Continuously Variable Transmission
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Reverse

Performance

Seating Capacity: 4 Person
Dry Weight (without battery): N/A
Curb Weight: 425 Kg
Vehicle Load Capacity: 544 Kg
Bed Load Capacity: 181 Kg
Outside Clearance Circle: 7.8 m
Speed (level ground):  26 kph ± 0.8 kph
