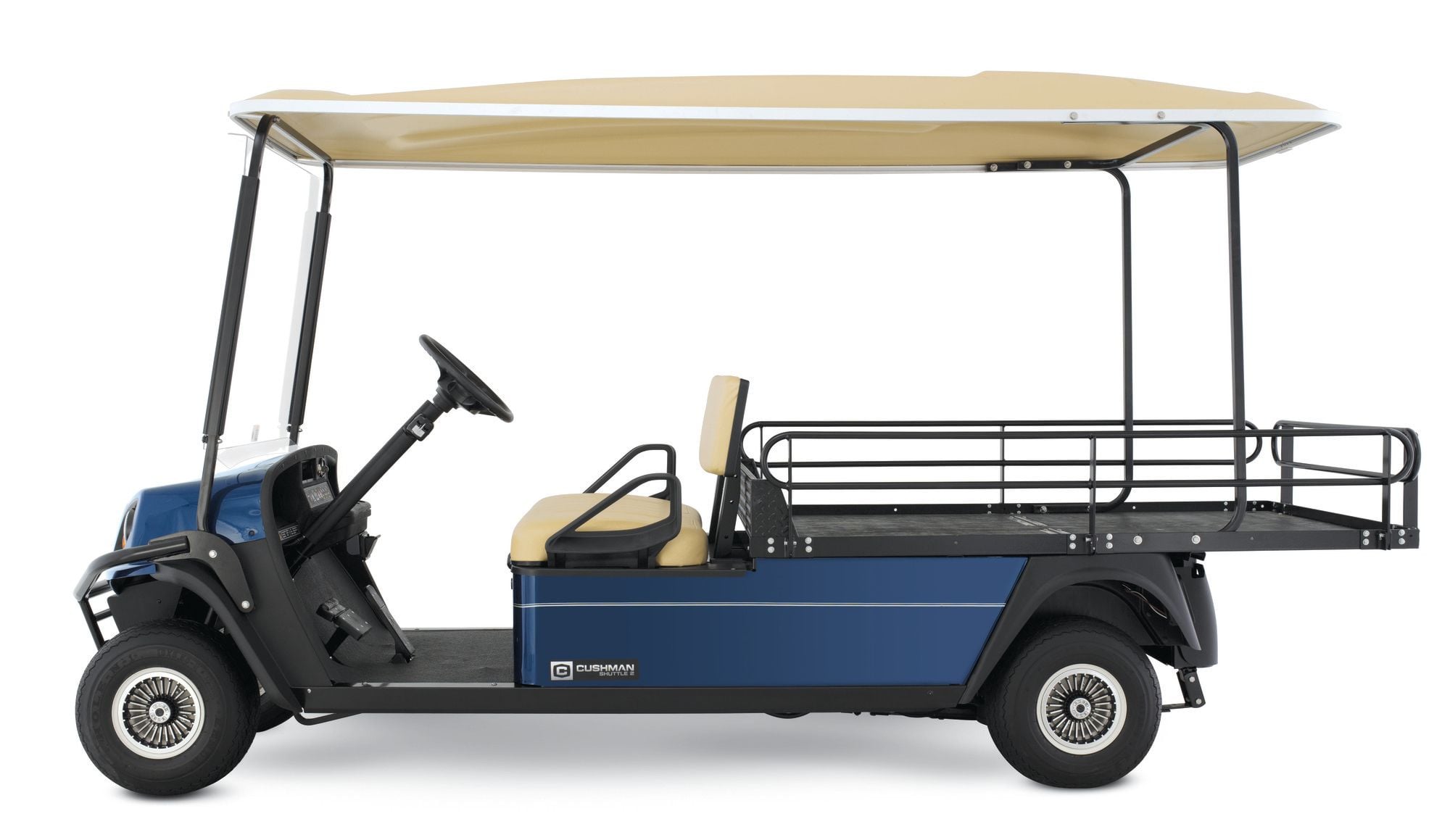

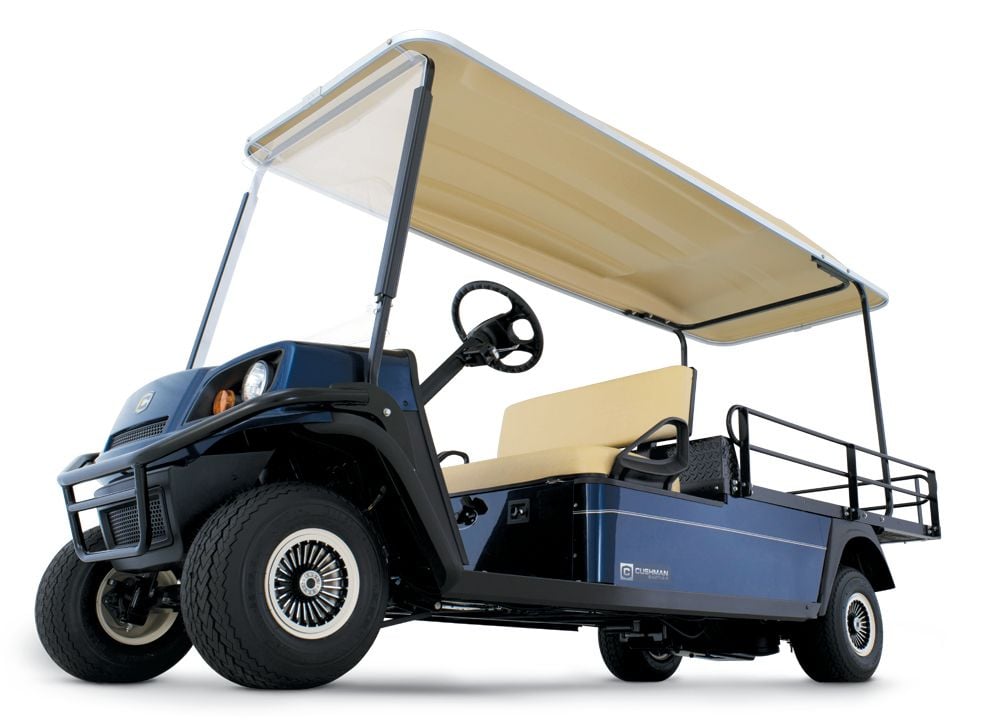

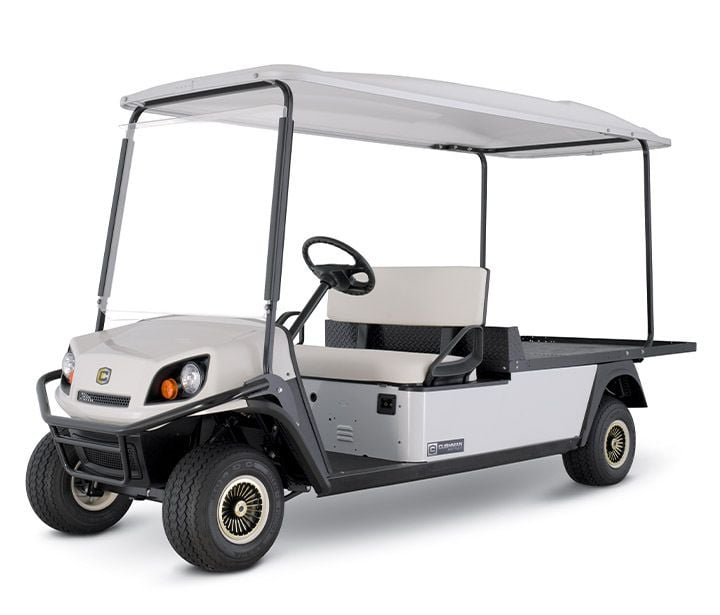

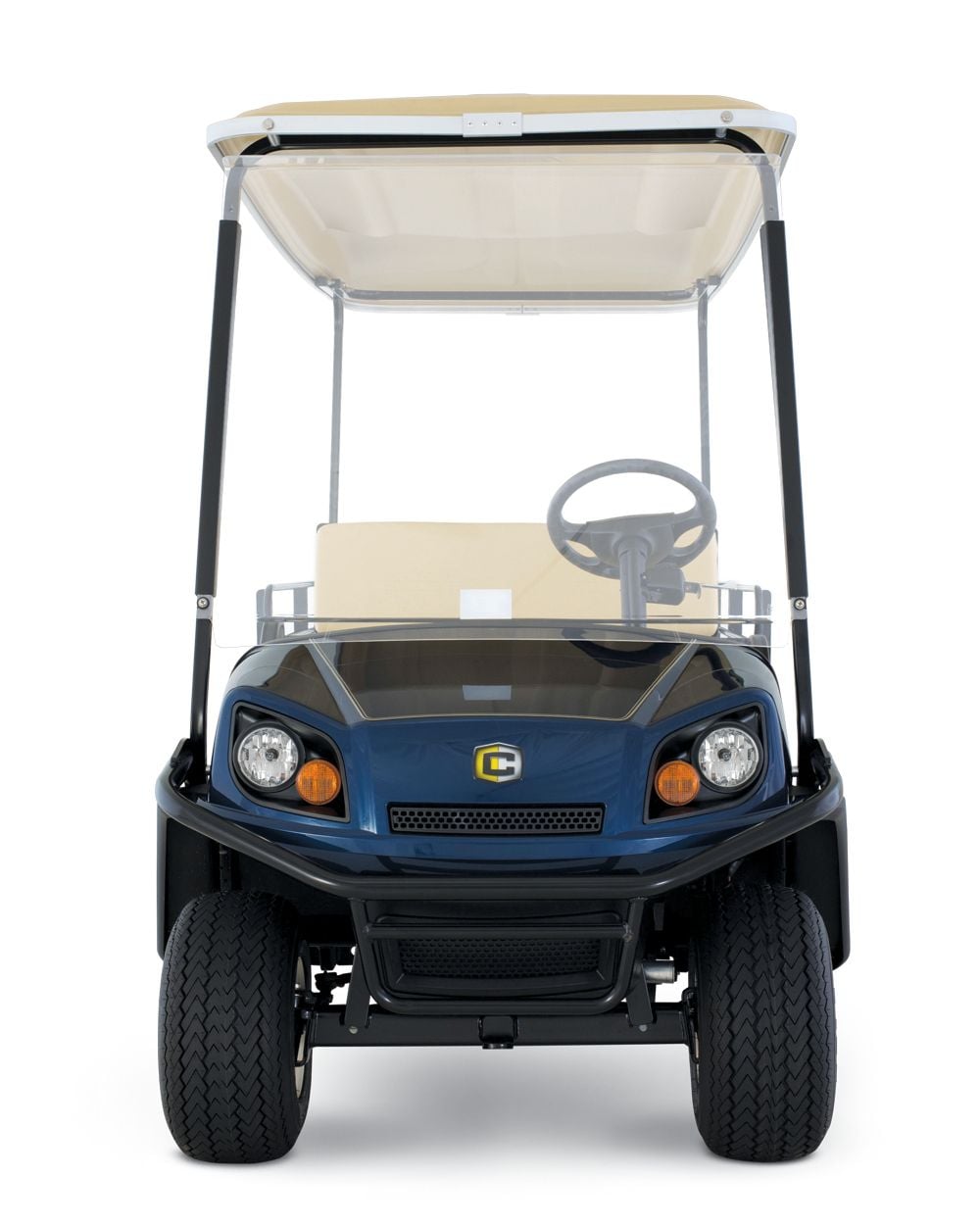

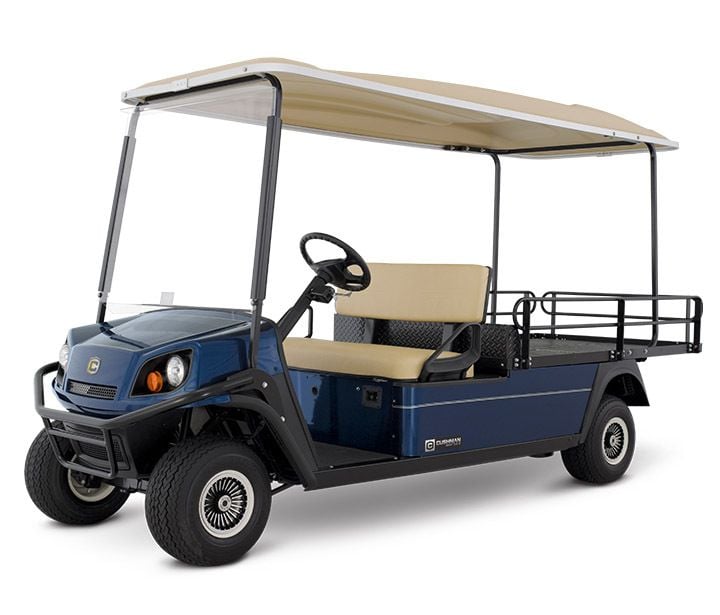

Shuttle 2 - Electric

This vehicle was built for big hauling and big possibilities with a 20.9-sq-ft cargo deck. Whether you're hauling tools and supplies or luggage and catering, the Shuttle 2 personnel transport vehicle makes sure that you're driven to get it done right.

Standard Features

  • 8 x 6v Trojan T105 Deep Cycle Lead Acid Batteries
  • 48V Delta Q DC Lightweight DC Portable Charger
  • 2 Seater with Flatbed Rear Deck (Grey Seating)
  • Extended Top Assembly ( Black, Beige or Oyster)
  • State of Charge Meter
  • Tail & Brake Lights,
  • Turn Signals
  • Hour Meter
  • DC Converter
  • Front Hydraulic Disc Brakes
  • USA Trail Tyres 18x8.50 - 8 (Load Range C)
  • Limited Slip Differential
  • Unique Group Key Switch
  • Steel DuraShield Epoxy Coated Chassis
  • Body Finish Injection Moulded TPO
  • Split Windshield
  • Round Convex Mirror
  • Metallic Gold Hubcaps
  • Front Bumper/Brush Guard
  • High Output LED Headlights
  • Horn and Reverse Beeper
  • Rear View Mirrors


Specifications

Dimensions

Overall Length: 358 cm
Overall Width: 123 cm
Overall Height (with canopy): 183 cm
Wheel Base: 237 cm
Front Wheel Track: 87 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 11 cm
Cargo Box Capacity: 20.9 Sq ft (1.94m³)


Power

Powertrain: 48 Volts DC
Horsepower: 18.1 HP ( 16.7 kW) @1900 rpm
Electric System: 48 Volt
Battery (qty/type): Eight, 6 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 48V, 120AC, UL/CSA
Speed Controller: 400 Amp Precision Drive System
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 14.7:1


Performance


Seating Capacity: 2 Person
Dry Weight (without battery): 367 Kg
Curb Weight: 590 Kg
Vehicle Load Capacity: 454 Kg
Outside Clearance Circle: 7.8 m
Speed (level ground): 21 kph ± 0.8 kph

Steering & Suspension

Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension:  Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: Links 18 - 8.5 - 8 (4 Ply Rated)

Body & Chassis

Frame: Welded steel with Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Steel Base Coat/Clear Coat
Standard Colour: Patriot Blue
Optional Colour: Almond, Black, Electric Blue, Flame Red, Ivory, White, Safety Yellow, Forest Green, Platinum, Metallic Charcoal, Sunburst Orange
Available Seat Colours: Tan, Oyster, Grey
