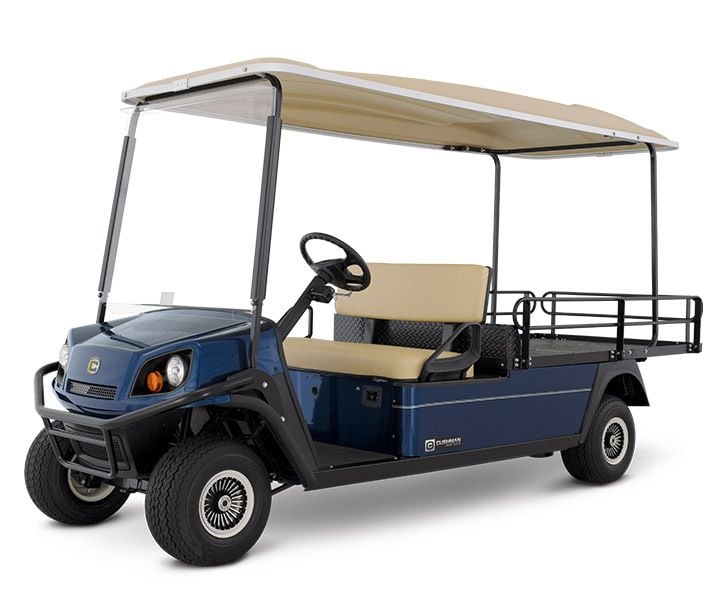

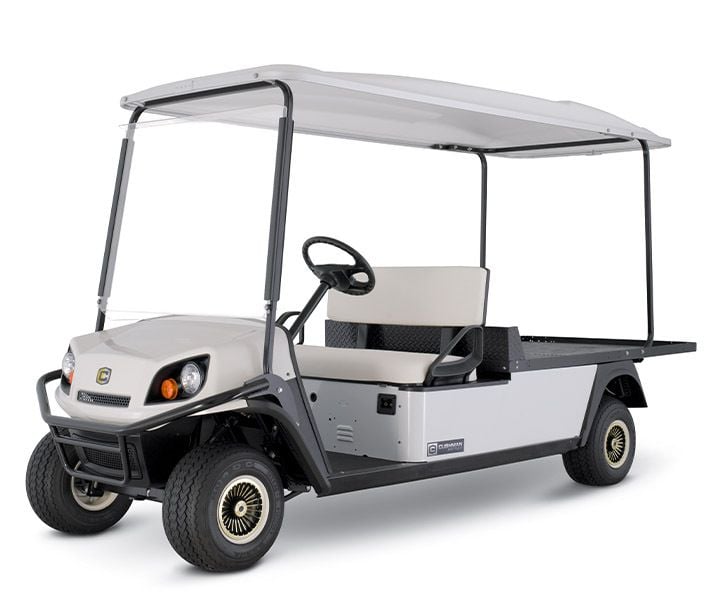

Shuttle 2 - Petrol

This vehicle was built for big hauling and big possibilities with a 20.9-sq-ft cargo deck. Whether you're hauling tools and supplies or luggage and catering, the Shuttle 2 personnel transport vehicle makes sure that you're driven to get it done right.

Specifications

Dimensions

Overall Length: 358 cm
Overall Width: 123 cm
Overall Height (with canopy): 183 cm
Wheel Base: 237 cm
Cargo Box Capacity: 20.9 Sq ft (1.94m³)


Power

Powertrain: 4 Cycle, 24.5 ci (401cc) Low Emission
Valvetrain: Single Cylinder OHV
Horsepower: 13.5 hp (10.1kW), Exceeds SAE J1940 Std
Electric System: Starter/Generator. Solid State Reg.
Battery (qty/type): One, 12 v Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner: Industrial Rated Dry Cartridge
Lubrication: Pressurized Oil
Oil Filter: Spin On
Cooling System: Air Cooled
Fuel Capacity: 22.7 Litres
Speed Controller: 400 Amp Precision Drive System
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 14.7:1


Performance


Seating Capacity: 2 Person
Dry Weight (without battery): N/A
Curb Weight: 420 Kg
Vehicle Load Capacity: 544 Kg
Outside Clearance Circle: 7.8 m
Speed (level ground): 26 kph ± 0.8 kph
