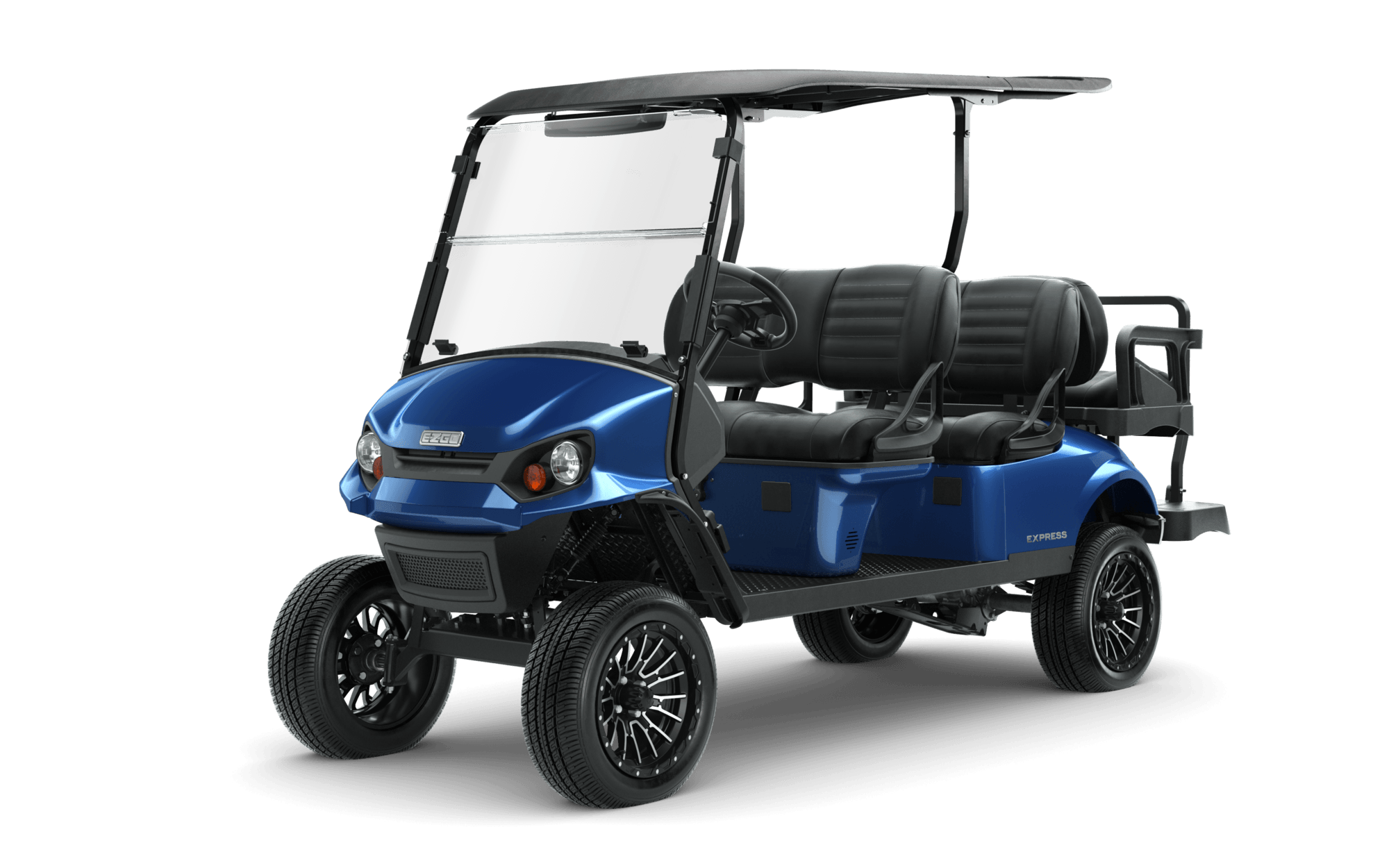

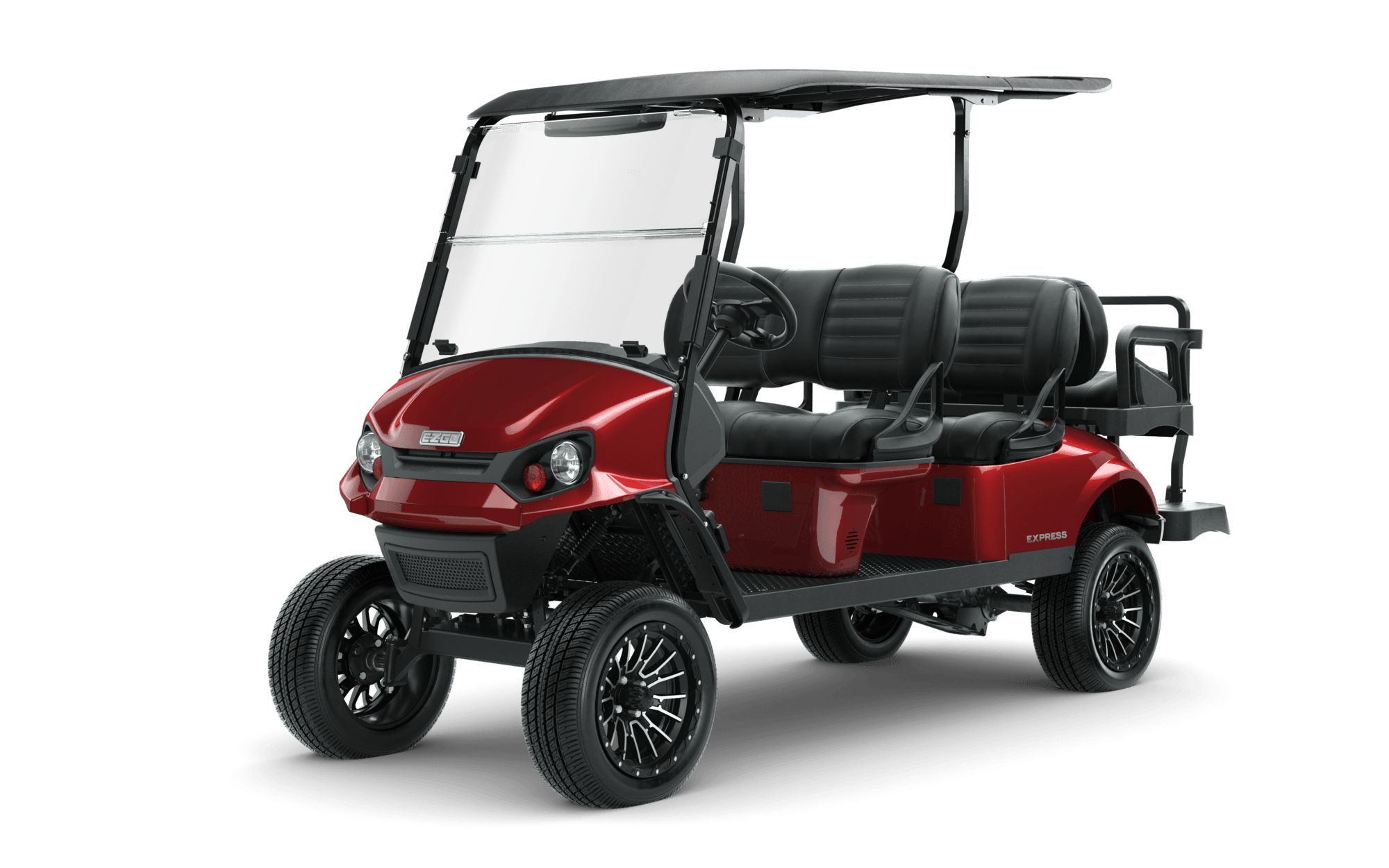

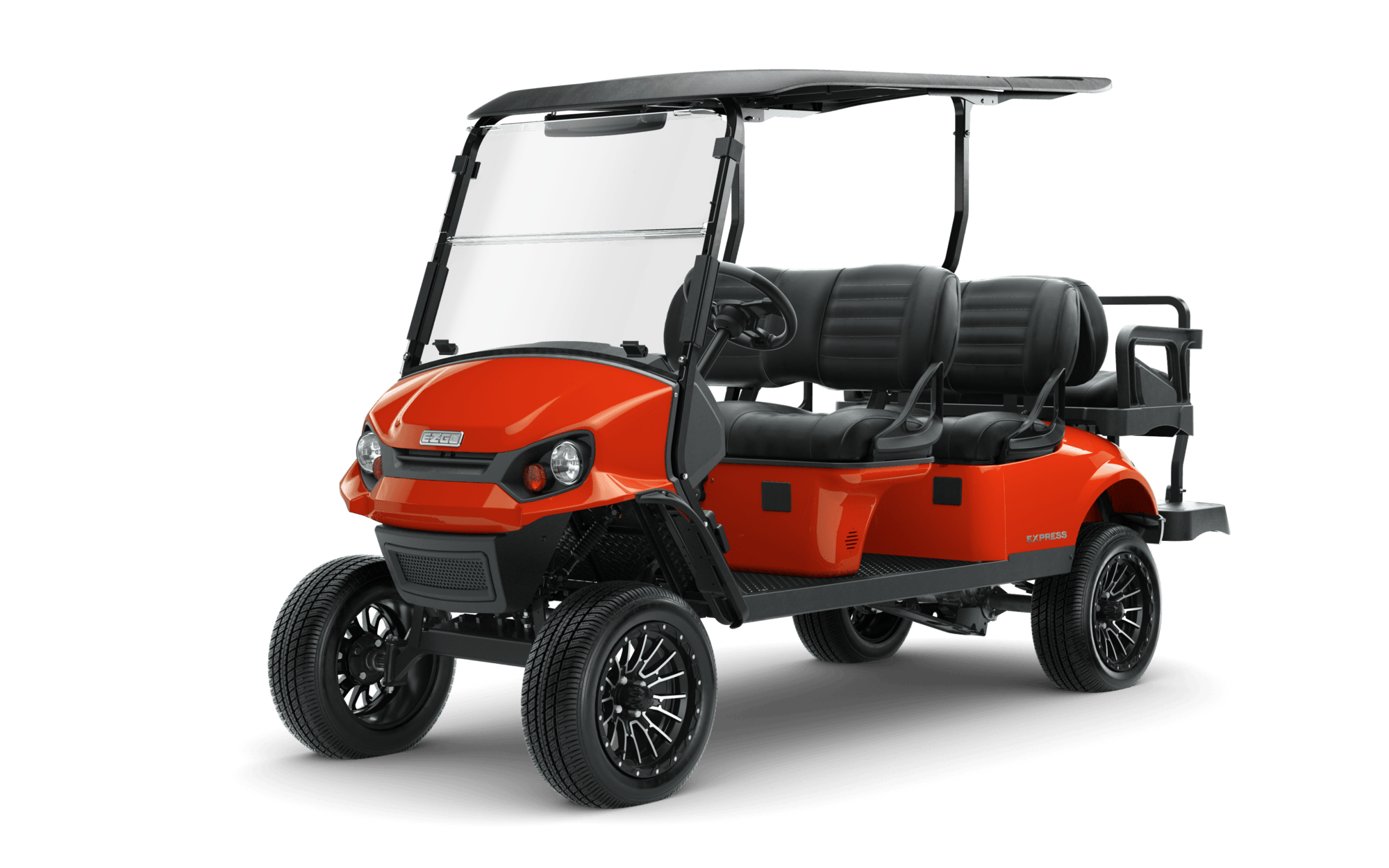

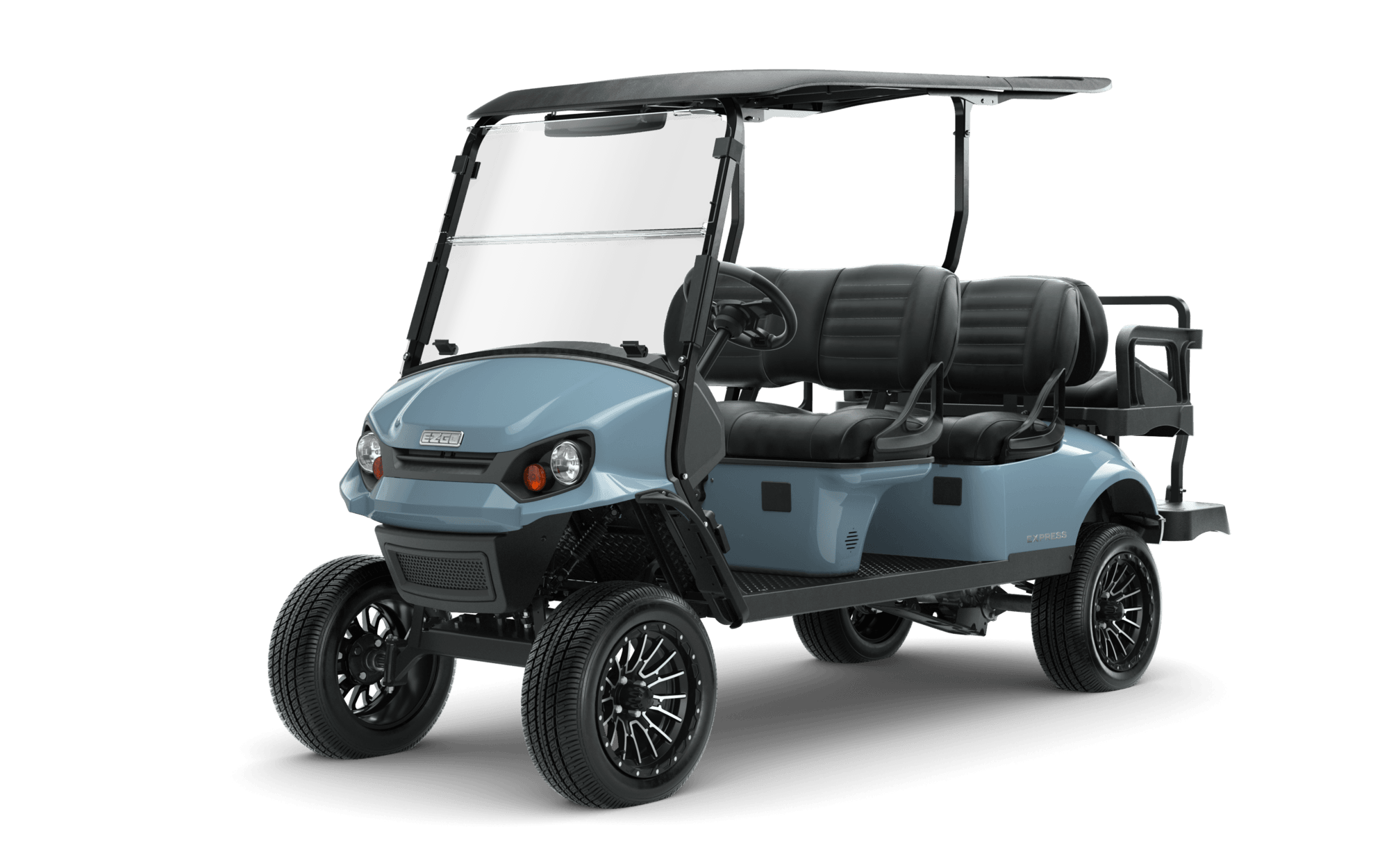

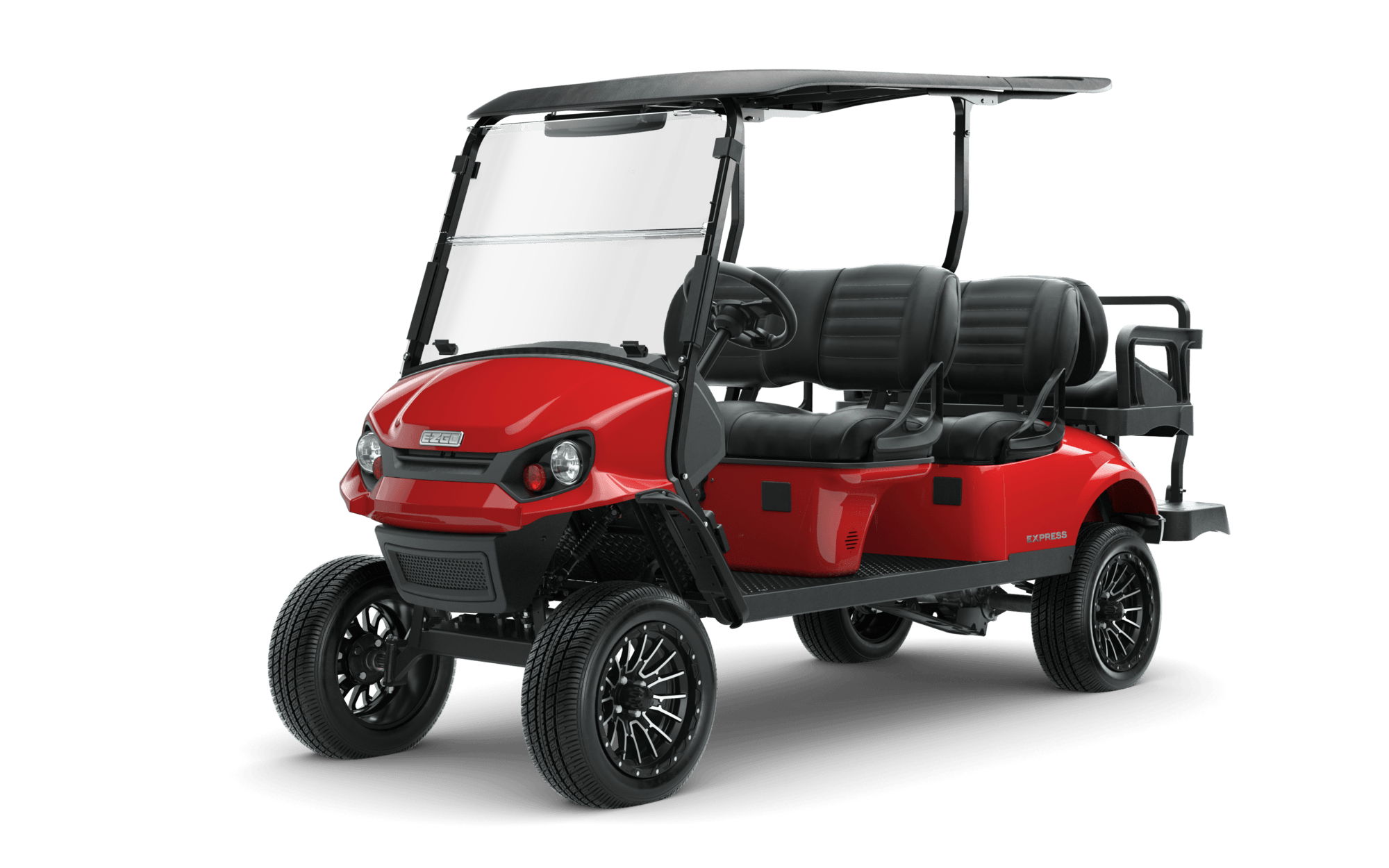

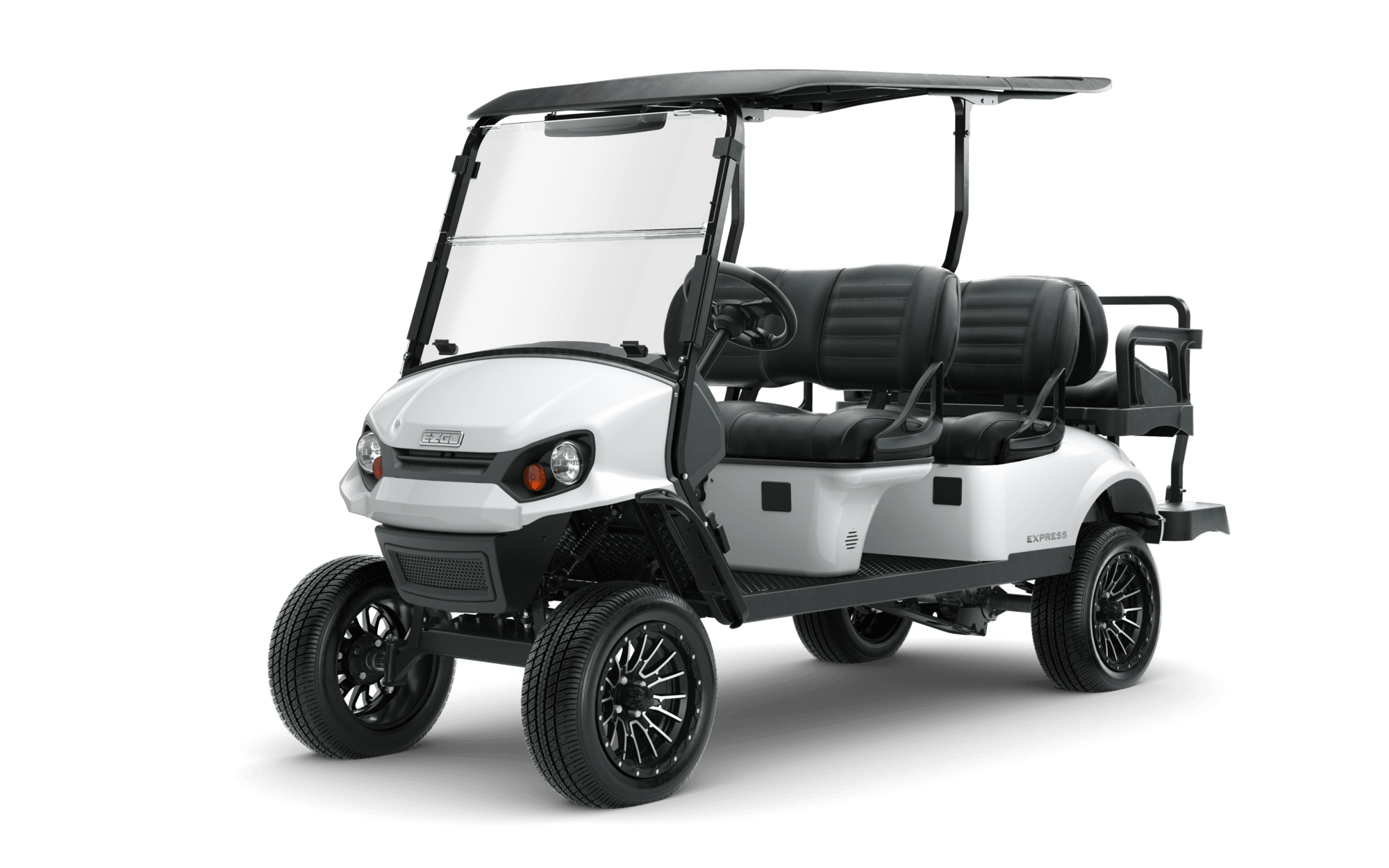

Express 6 - Elite Lithium
Take everyone along for the ride in the 6-passenger Express 6 with extended legroom, optional enhanced front suspension, and a bold, eye-catching design. Experience the perfect blend of performance and style for an unforgettable journey.
Standard Features
- 1 x Samsung Twin Pack Lithium Ion Battery Pack
- Extended Top Assembly
- Seats with 4 Caddi Flip Flop Rear Seat Kit
- Split Windshield
- State of Charge Meter
- Hour Meter
- Front Bumper/ Brush Guard
- Injection Moulded TPO Body finish
- Unique Key switch
- Tail & Brake Lights
- Turn Signals
- USB Outlet
- Rabbit/Turtle Speed Switch
- DC Converter
- Limited Slip Differential
- Comfort Grip Steering Wheel
- High Output LED Headlights
- Horn and Reverse Beeper

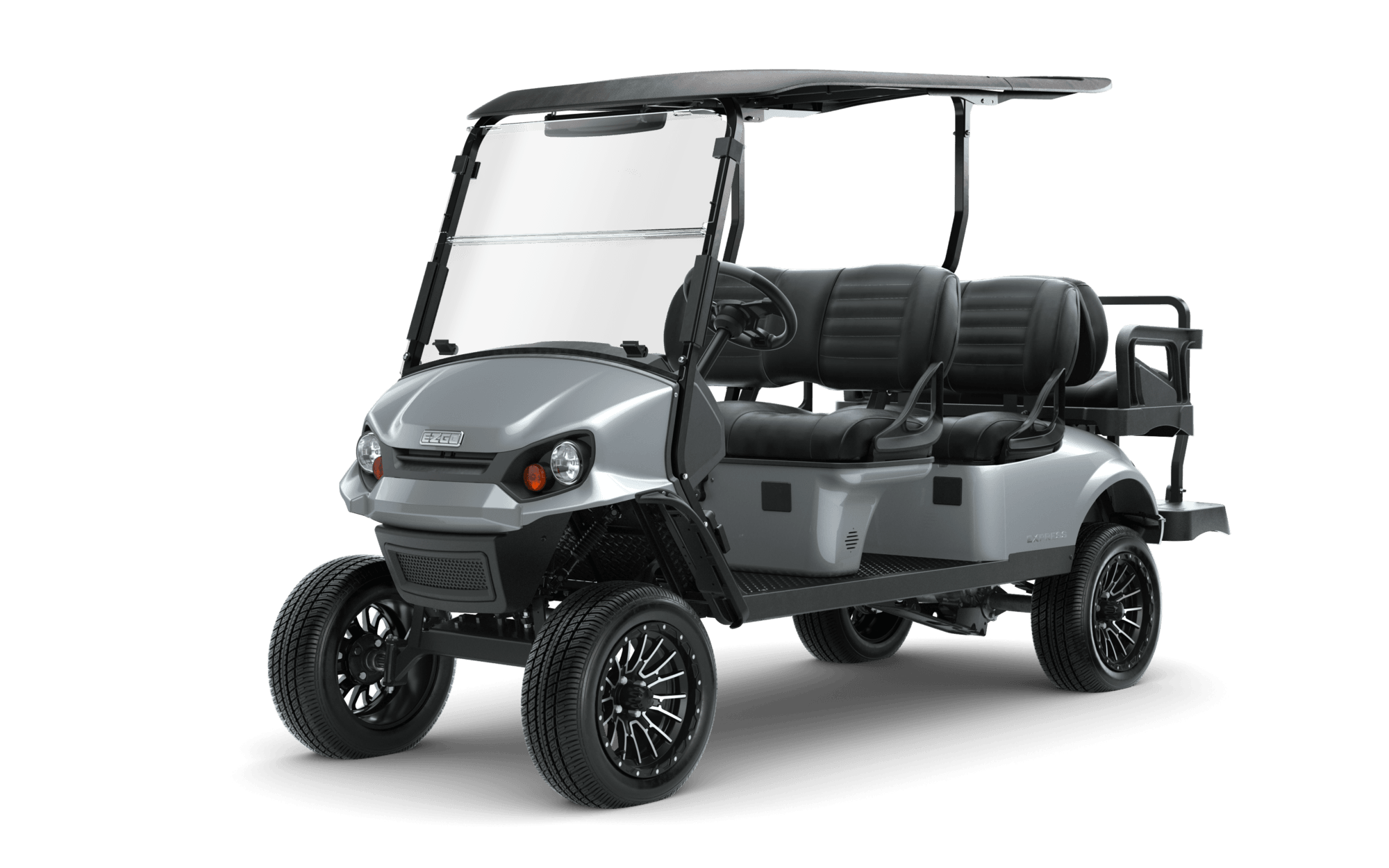

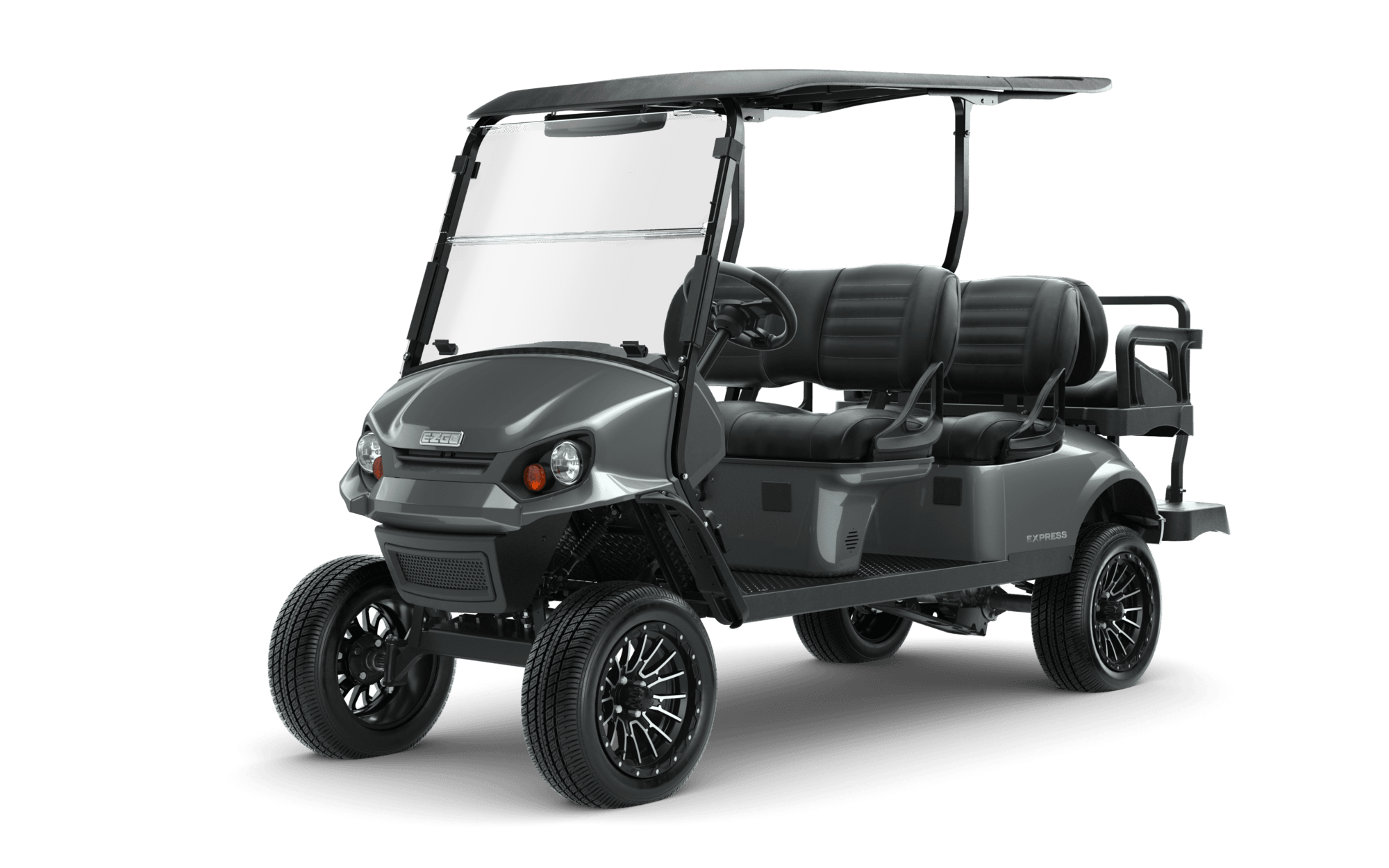

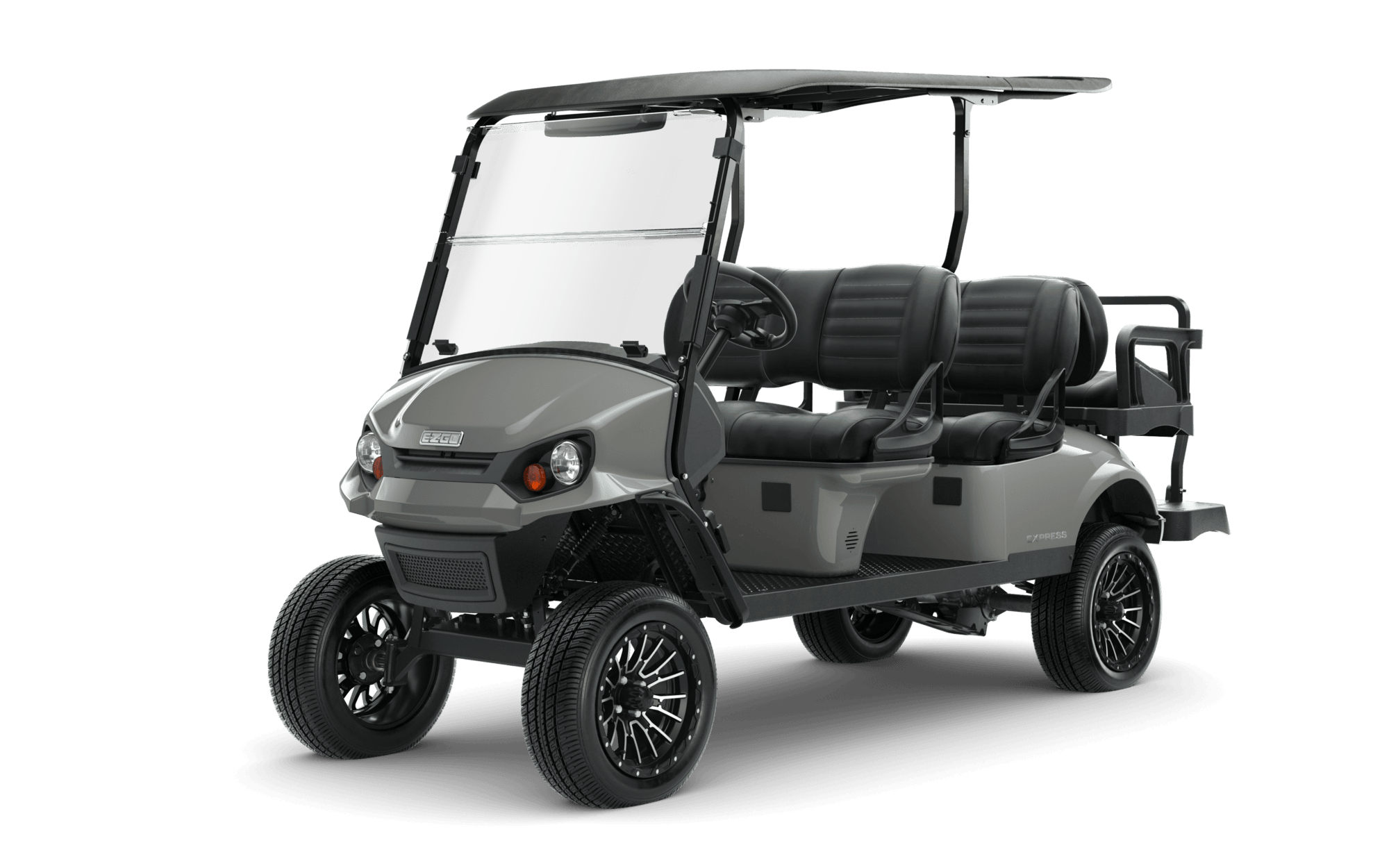

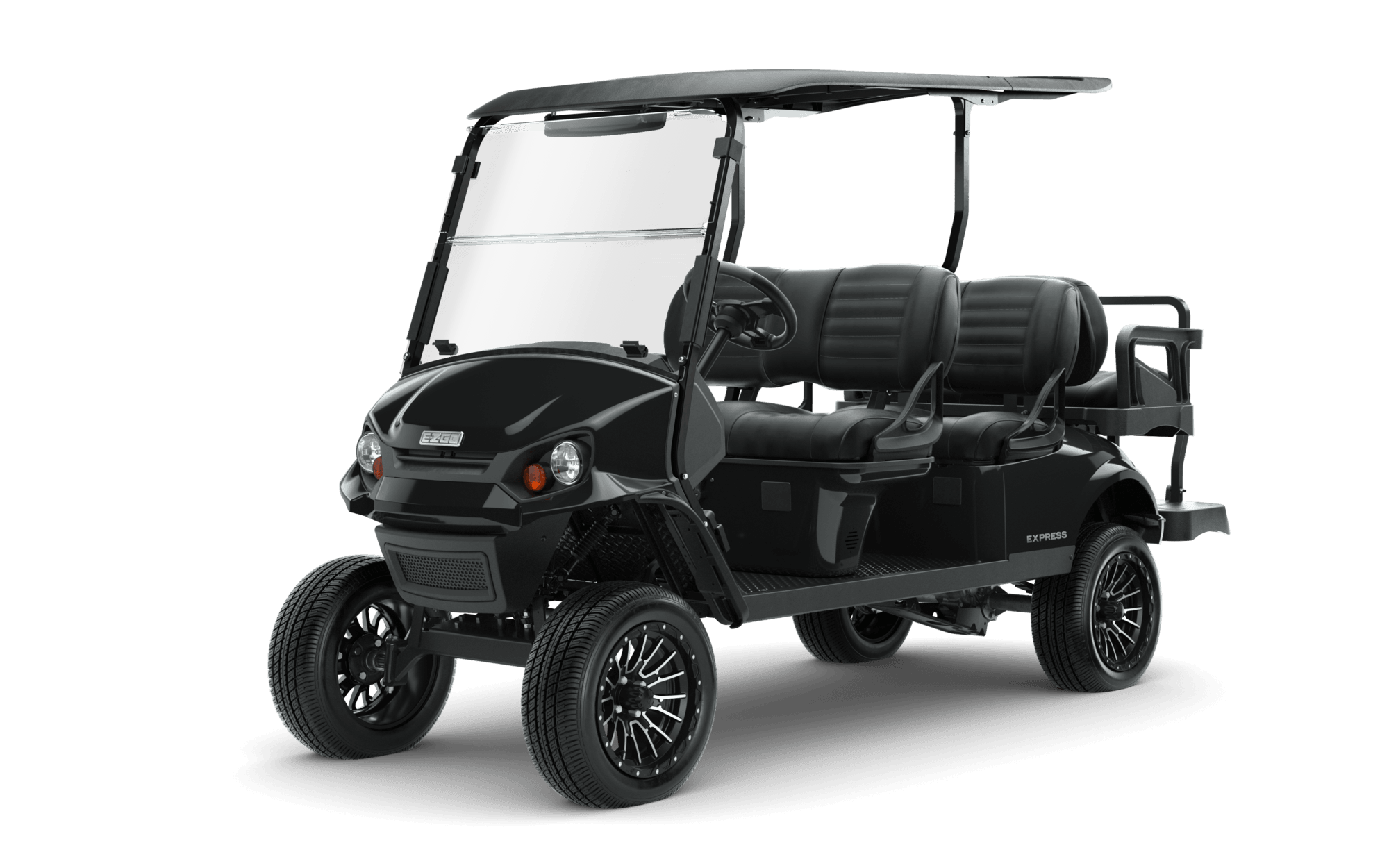

- Choice of Colour
Options/Accessories
- All Weather enclosures ( Clear or Tinted)
- Lift Kit
- 2 Inch (5cm) Front Hitch Receiver
- Trail Tyres
Specifications
Dimensions
Overall Length: 363 cm
Overall Width: 129 cm
Overall Height (no canopy): 124 cm
Overall Height (with canopy): 183cm
Wheel Base: 240 cm
Front Wheel Track: 102 cm
Rear Wheel Track: 105 cm
Ground Clearance (at differential): 18 cm
Power
Power Source: 56 Volts
Motor Type: AC Induction
Horsepower (kW): 14.9 hp (11.1 kW) Peak
Electric System: 48VDC
Battery (qty/type): ELiTE 4.2, Twin 56.7V Max Lithium
Charger: World Charger, 811W, 56.7V, 10 ft. DC Cord
Key or Pedal Start: Pedal Start
Speed Controller: 350 Amp AC
Drive Train: Direct-Drive AC Induction Motor
Transaxle: Clutch-Type Limited-Slip Differential with Helical Gears???????
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 17:1
Performance
Seating Capacity: 4/6 Person
Dry Weight (without battery): 486 Kg
Curb Weight: 556 Kg
Vehicle Load Capacity: 524 Kg
Outside Clearance Circle: 7.8 m
High Speed (level ground): 25.7 kph ± 0.8 kph
Low Speed (level ground): 19.3 kph ± 0.8 kph
Towing Capacity: N/A
Steering & Suspension
Steering: Self-compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical self-adjusting drum
Parking Brake: Automatic Electro-Magnetic (ELiTE Only)
Body & Chassis
Frame: Welded steel with DuraShield powder coat
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
)
