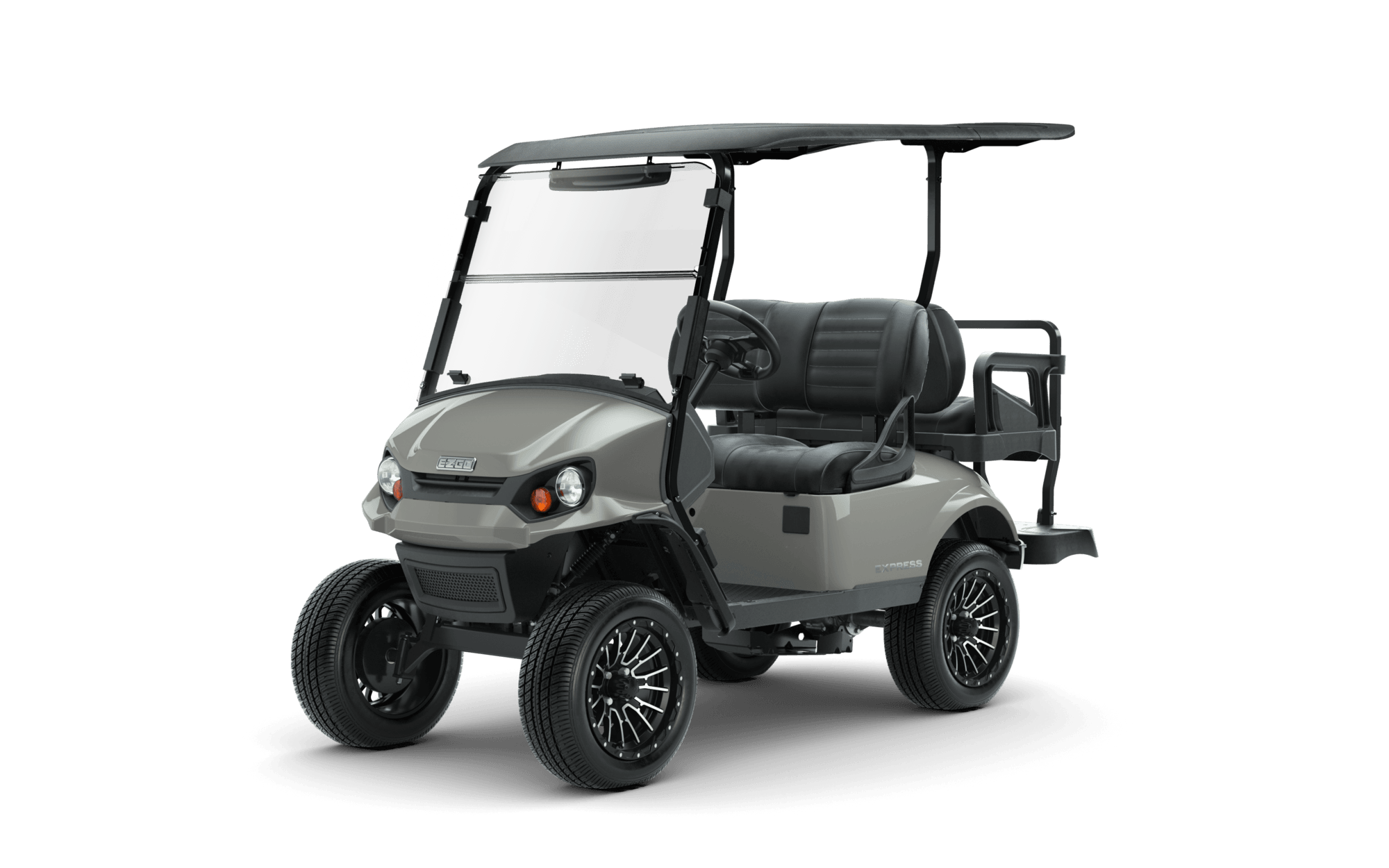

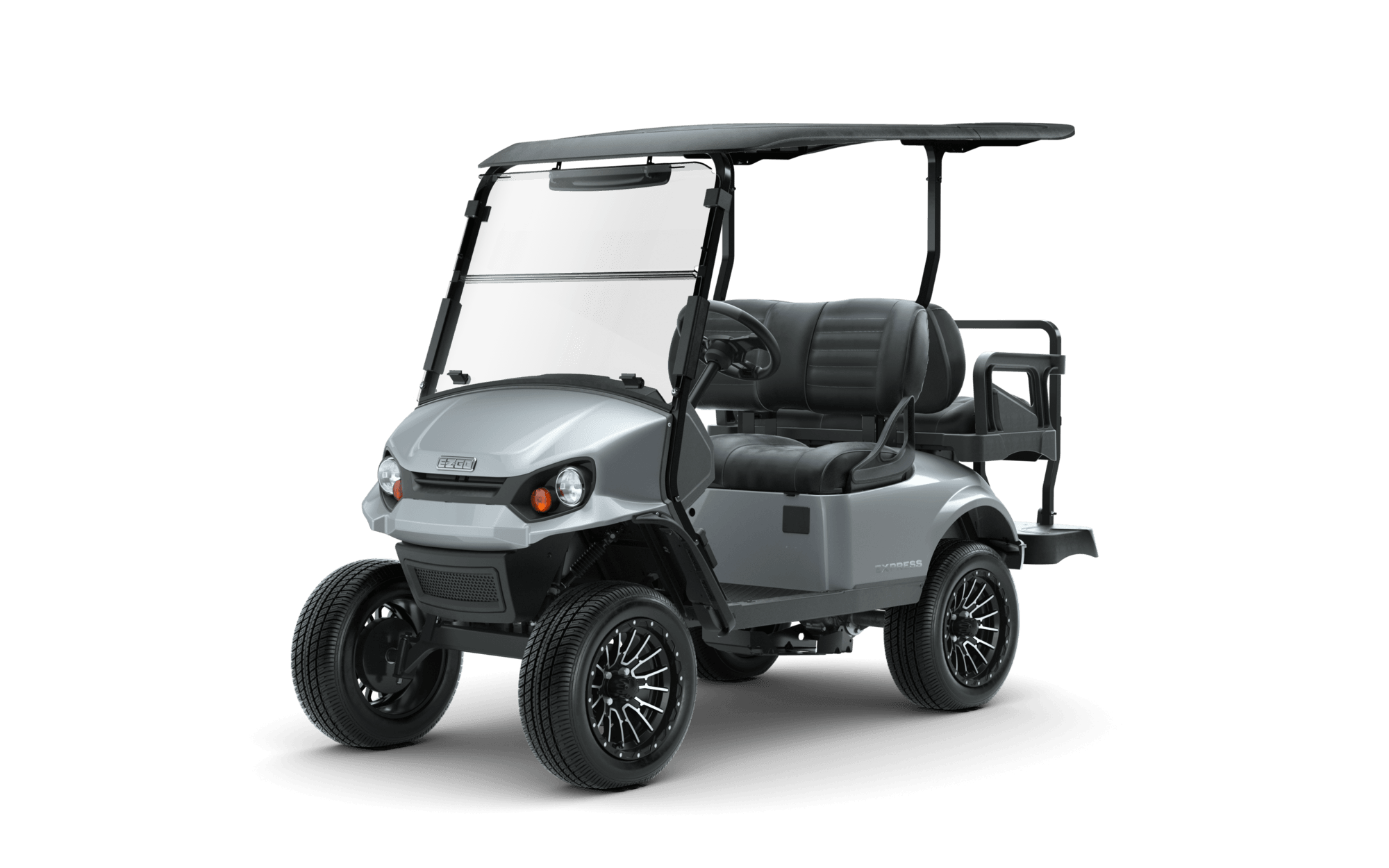

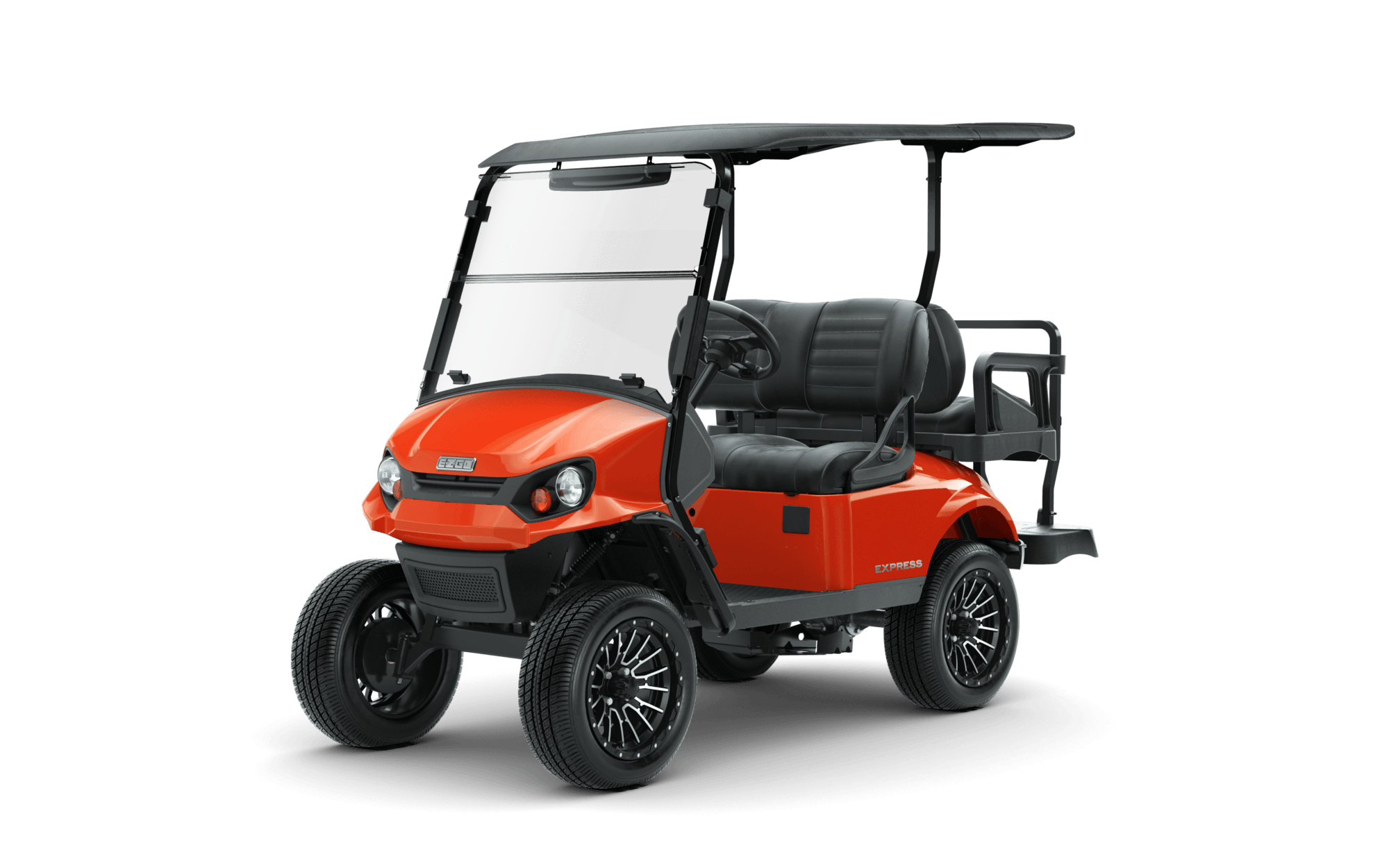

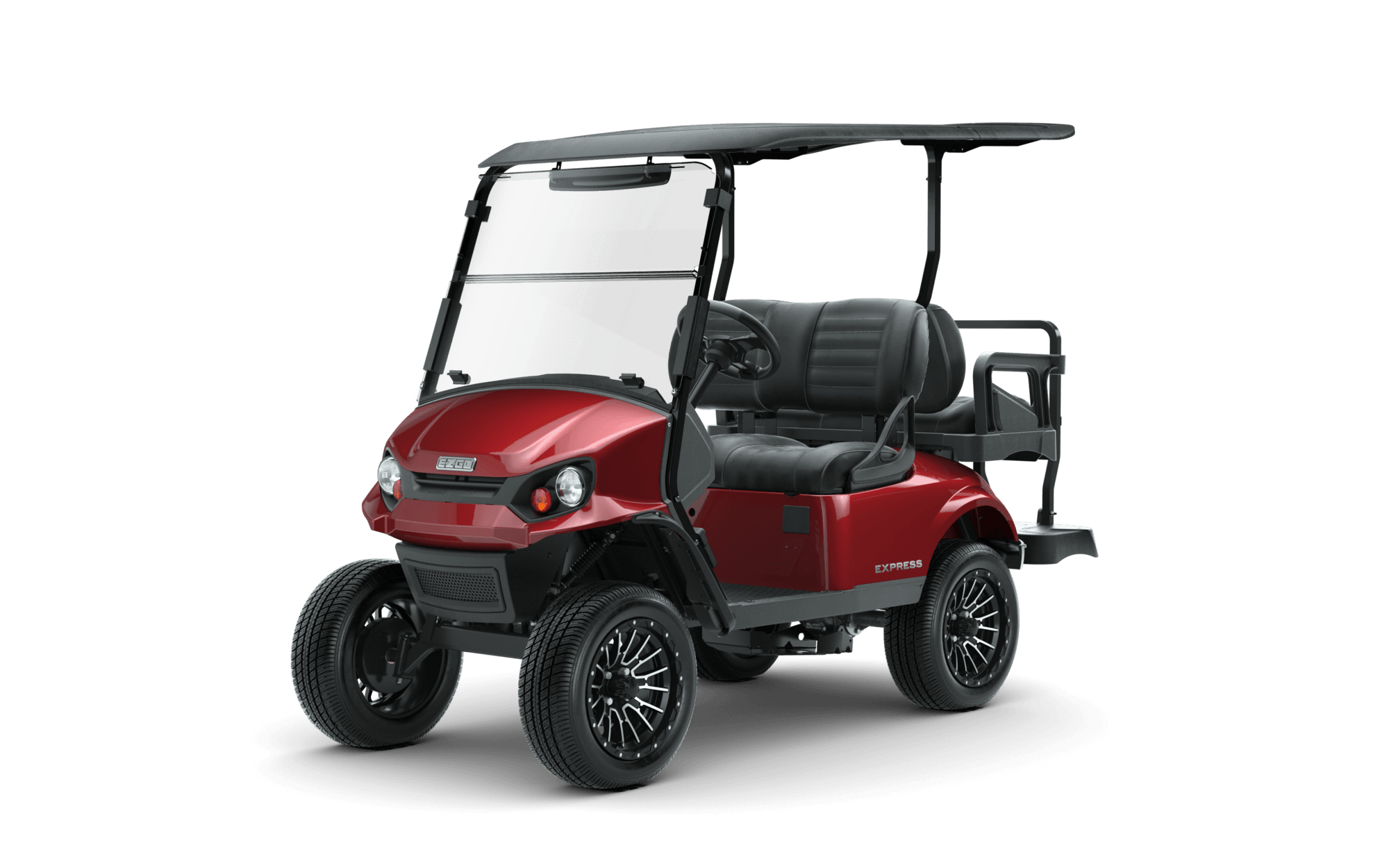

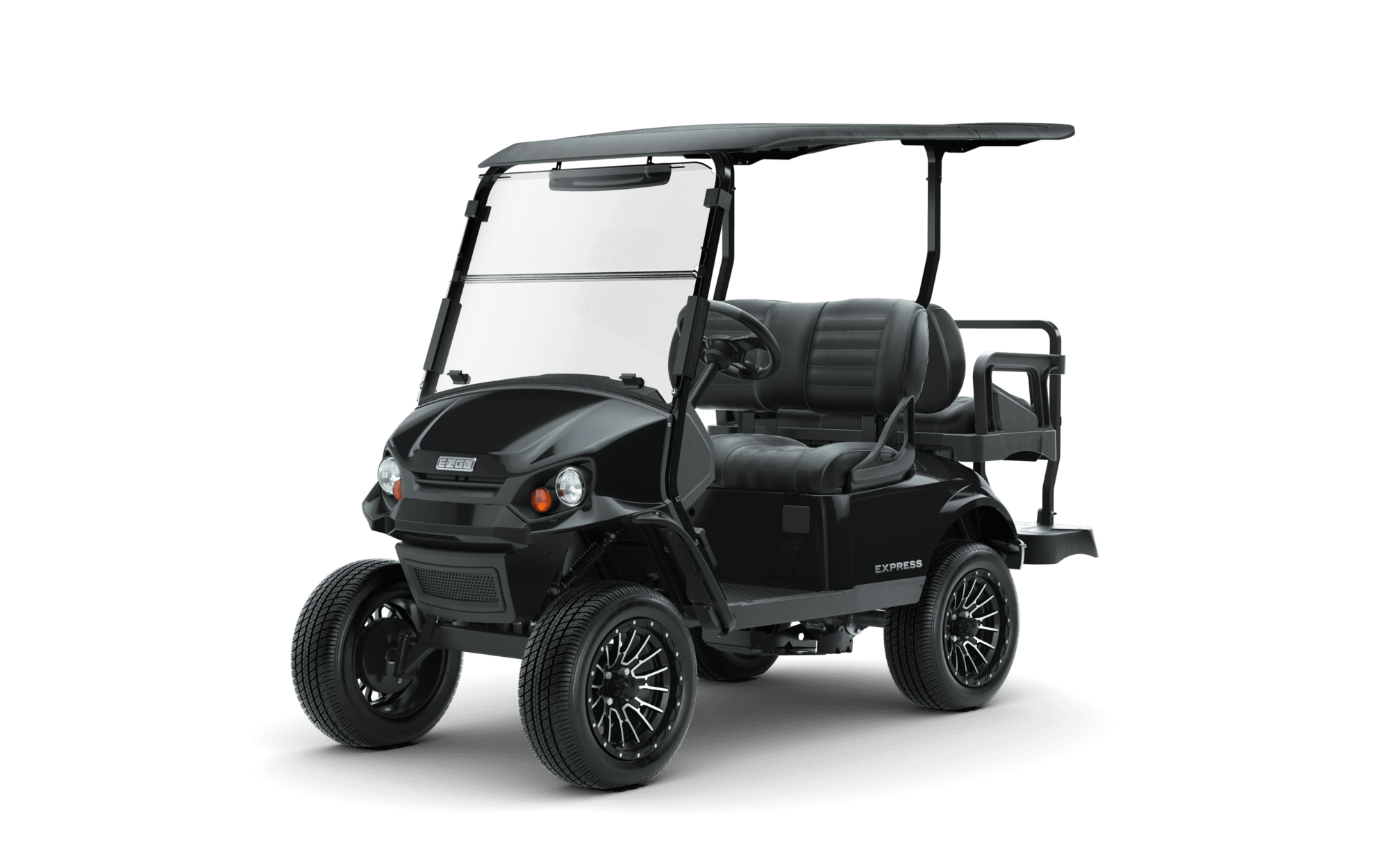

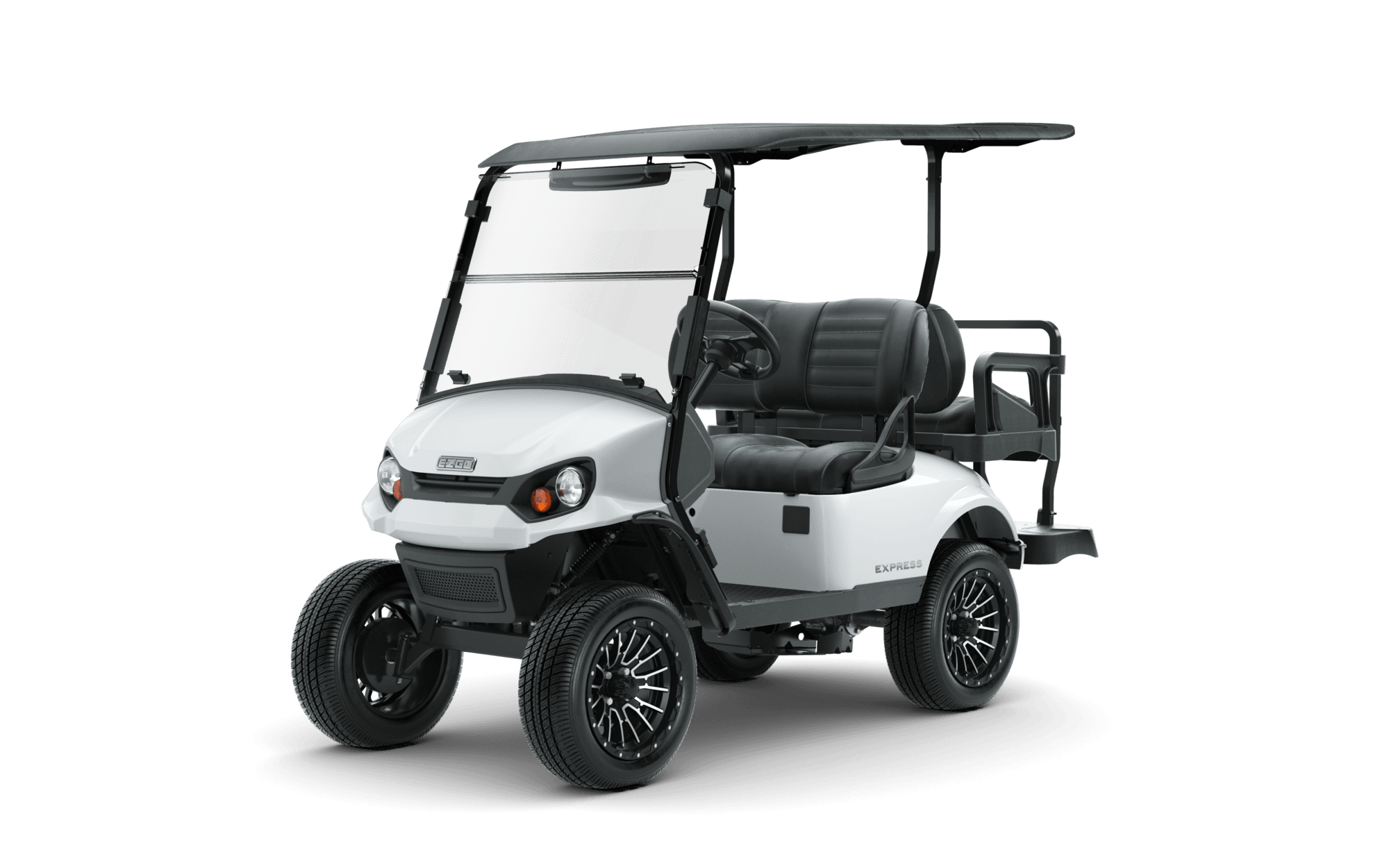

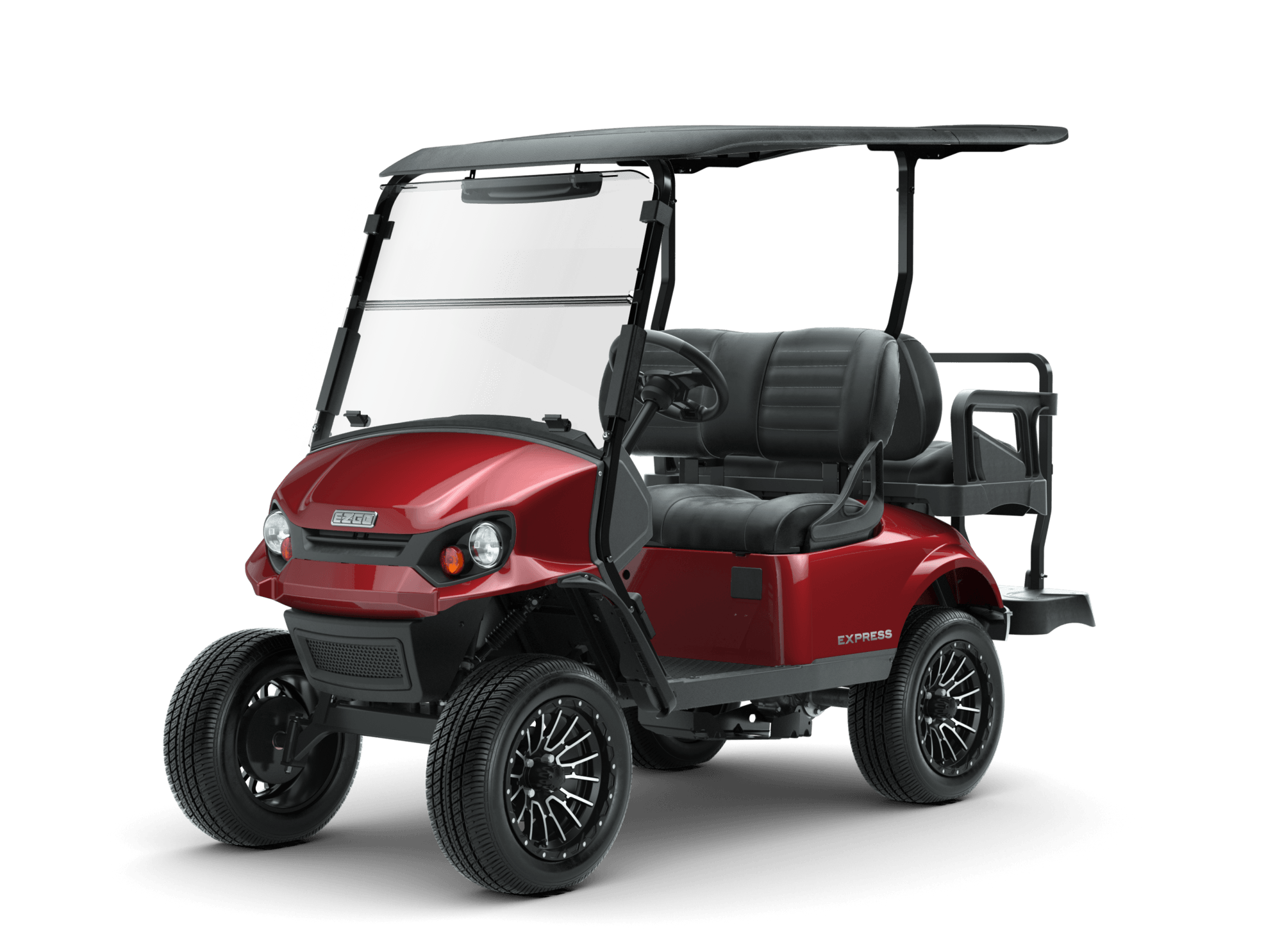

Express 4
The E-Z-GO® Express 4 is built to take you everywhere you never knew you could go in a golf cart, with stylish features such as LED headlights, lifted and standard ride height options, and premium packages featuring automotive-style seating and touch screen technology. Each turn of the ignition is the start of a great time in the Express 4.
Standard Features
- 13.5 Hp Engine
- Oyster, Black or Tan Extended Top Assembly
- Oyster, Black or Tan Seating with 4 Caddi Flip Flop Rear Seat Kit
- Split Windshield
- Fuel Guage
- Front Bumper/ Brush Guard
- Injection Moulded TPO Body finish
- Unique Key switch
- Tail & Brake Lights
- Turn Signals
- DC Converter
- Limited Slip Differential
- Comfort Grip Steering Wheel
- 12 Volt Outlet
- High Output LED Headlights
- Horn and Reverse Beeper
- Choice of Colour
Options/Accessories
- All Weather enclosures ( Clear or Tinted)
- Mag Wheels
Specifications
Dimensions
Overall Length: 293 cm
Overall Width: 123 cm
Overall Height (no canopy): 133 cm
Overall Height (with canopy): 210 cm
Wheel Base: 166 cm
Front Wheel Track: 98 cm
Rear Wheel Track: 98 cm
Ground Clearance (at differential): 15 cm
Power
Power Source: 4-Cycle 24.5 in³ (401 cc)
Valve Train : Single Cylinder OHV
Fuel System: Closed-Loop Electronic Fuel Injection
Key or Pedal Start: Pedal Start
Electrical System: Starter / Generator. Solid State Regulator???????
Drive Train: Automatic, Continuously Variable Transmission (CVT)
Transaxle: Differential with Helical gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 11.47:1 (Forward) 14.35:1 (Reverse)
Performance
Seating Capacity: 4 Person
Dry Weight (without battery): 481 Kg
Curb Weight: 499 Kg
Vehicle Load Capacity: 360 Kg
Outside Clearance Circle: 6.7 m
Intersecting Aisle Clearance: N/A
Speed (level ground): 28.2 kph ± 0.8 kph
Steering & Suspension
Steering: Self-compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical self-adjusting drum
Parking Brake: Self-compensating, Single Point Engagement
Body & Chassis
Frame: Welded steel with DuraShield powder coat
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
)
