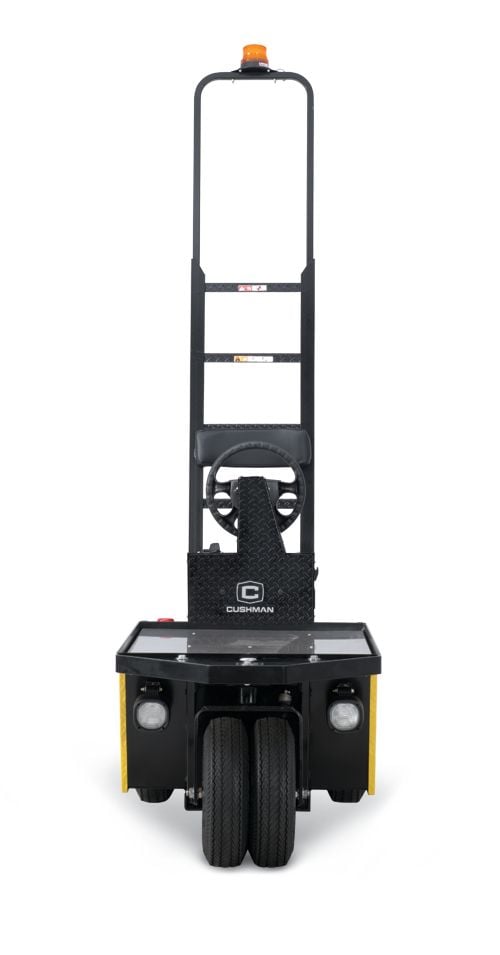

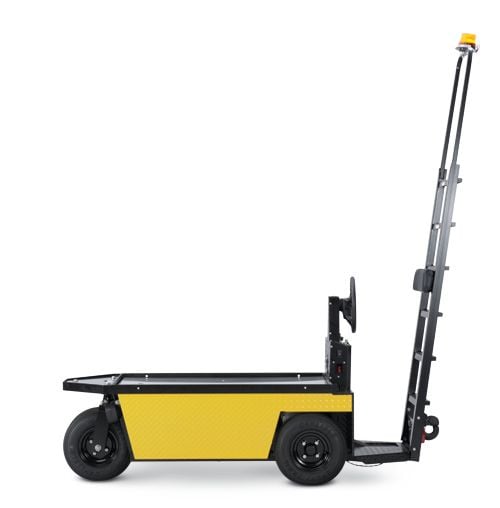

Stock Chaser - 24v DC Electric

With the Stock Chaser, every nook and cranny of your facility is accessible fast. Navigate tight corners and narrow aisles with the agile design. Then, climb the integrated ladder to retrieve items from up above. When other vehicles refuse to make the trek, the Stock Chaser burden carrier does not relent.

Standard Features

  • 4 x 6V Trojan T105 Deep Cycle Batteries
  • 24v Delta Q DC On-Board Charger
  • Single Seater
  • Head & Tail Lights
  • Hour Meter
  • State of Charge Meter
  • Horn
  • Forward Motion Indicator
  • Operator Presence Switch
  • Dual Front Wheel
  • Welded Steel with DuraShield coating Frame & Body
  • Body Finish painted Diamond pattern
  • Steering Wheel
  • Dual Rear Wheel Mechanical Drum Brakes
  • Mechanical Park Brake

Options/Accessories

  • Pintle or "E" Hitch
  • Counterweight
  • Cargo Deck (Galvanized)
  • Cargo Deck (Stainless Steel)
  • Strobe Light (Ladder Required)
  • Side Rails
  • Ladder - 4 Step (Counterweight included)
  • Ladder - 6 Step (Counterweight included)
  • Maintenance Free Gel Batteries
  • EE Certification
  • BFS Battery Filling System
  • Tow Hitch and 50 mm Tow Ball

Specifications

Dimensions

Overall Length: 225 cm
Overall Width: 75 cm
Overall Height : 122 cm
Height with 4-step Ladder: 198 cm
Height with 6-step Ladder: 246 cm
Wheel Base: 123 cm
Front Wheel Track: N/A
Rear Wheel Track: 63 cm
Ground Clearance (at differential): 10 cm
Cargo Deck Capacity: 340 Kg
Cargo Box Material: Ply Wood


Power

Power Source: 24 Volts DC Series Wound
Horsepower: 8.94 hp ( 6.67 kW) @ 1490 RPM
Electric System: 24 Volt
Battery (qty/type): Four, 6 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 24v On-board, 100-240V AC On-board, UL& CE
Speed Controller: Solid State 275 Amp
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 14.78:1


Performance


Seating Capacity: 1 Person
Dry Weight (without battery): 237 Kg
Curb Weight: 367 Kg
Vehicle Load Capacity: 454 Kg
Bed Load Capacity: 340 Kg
Outside Clearance Circle: 3.8 m
Speed (level ground):  13.7 kph ± 0.8 kph

Steering & Suspension

Steering: Direct Chain & Linkage
Front Suspension: Solid
Rear Suspension:  Solid
Service Brake: Rear Wheel Mechanical Drum
Parking Brake: Automatic Parking Brake
Tyres: 4.8 x 8 (Load Range B)

Body & Chassis

Frame: Welded steel with Durashield powder coat
Body & Finish: Diamond Plate Patterned, Poly Primer & Acrylic
Standard Colour: Safety Yellow
Optional Colour: Flame Red, Hunter Green, Arctic White
Available Seat Colours: Black
