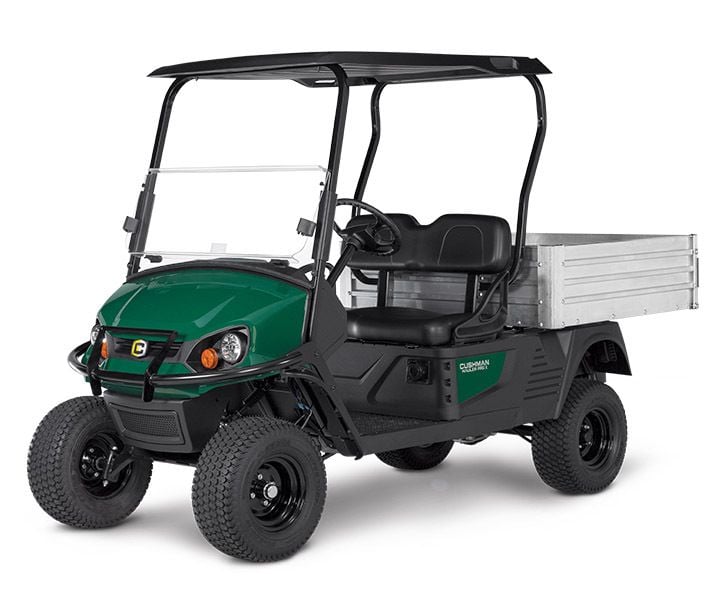

Hauler XL Petrol

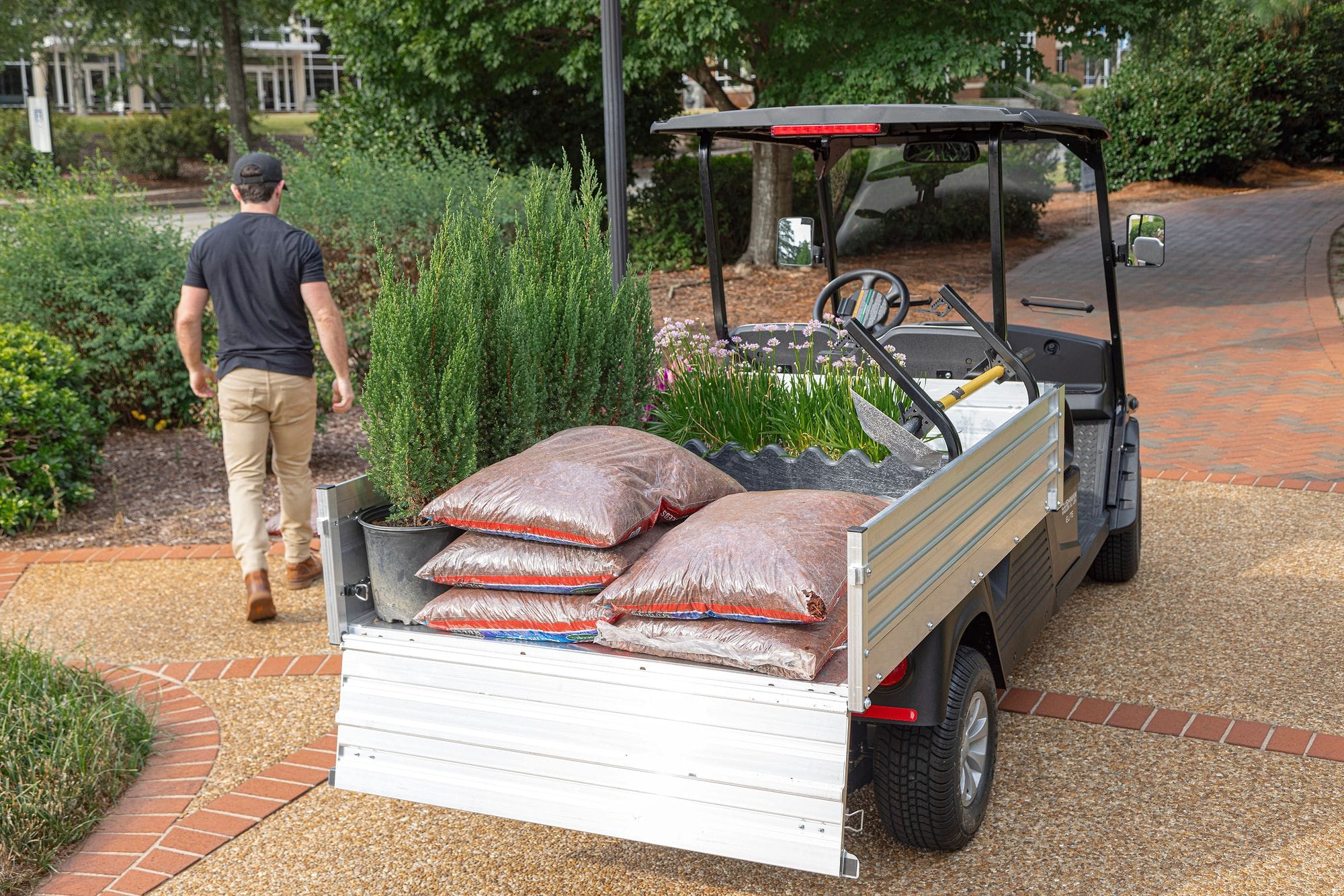

Carry a larger load with the Hauler XL which boasts a 68.5-in long aluminum cargo flatbed. Using the wide variety of Hauler XL options and accessories, you'll be sure to get the most of the 1200 lb bed capacity. With two high-performance powertrain options, the lightweight, maintenance-free ELiTE® lithium battery powered by Samsung SDI technology or 13.5 hp EFI gas engine, you'll have the power match your long workdays.
Standard Features
- 4-Cycle, 24.5 cu in (401cc) Kawasaki Engine
- Black Top Assembly & Seating
- Headlights, Tail & Brake Lights
- Turn Signals
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- Hour Meter
- DC Converter
- Front Black Bumper/ Brush Guard
- Unique Key Switch
- Fender Flare
- Rear Hitch Receiver
- Split Windshield
- Horn and Reverse Beeper
- Comfort Grip Steering Wheel
- Alluminium Bed with Tray Option
- Choice of Colours
Options/Accessories
- 4-Wheel Hydraulic Brakes
- Locking Glove Box
- Bed Dividers
- Floor Mount Attachment
- Aluminum Cargo Bed
- Steel Drop Side Rails
- Long-Handled Tool Holders
- Radio Holder
- LED Headlights
- LED Taillights/Brake Lights
- Rearview Mirror
- USB Port
- Unique Key Switch
- Side Body Color
- Weather Enclosure
- ROPS-Certified Cab
- Ball Cage
Specifications
Dimensions
Overall Length: 352.7 cm
Overall Width: 120 cm
Overall Height (with canopy): 178.4 cm
Wheel Base: 236.2 cm
Front Wheel Track: 86.7 cm
Rear Wheel Track: 96.36 cm
Ground Clearance (at differential): 12.7 cm
Cargo Flat Bed: 174 cm x 120 cm
Power
Powersource: 4-Cycle, 24.5 cu in (401cc)
Horsepower: 13.5 HP
Electric System: Starter/Generator. Solid State Reg.
Battery (qty/type): One 12 Volt Maintenance Free
Key or Pedal Start: Pedal Start
Drive Train: Continuously Variable Transmission
Transaxle: Differential with Helical Gears
Gear Selection: Forwardl-Reverse
Rear Axle Ratio: 11.47:1 (Forward) 14.35:1 (Reverse)
Performance
Seating Capacity: 2 Person Bench
Curb Weight: 454 Kg
Vehicle Load Capacity: 726 Kg
Bed Load Capacity: 544 Kg
Towing Capacity: 567 kg / 680 Kg with 4-Wheel Brake Option
Outside Clearance Circle: 5.8 m
Speed (level ground): 26.5 Kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Dual Rear Wheel Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single-Point Engagement
Tyres: Load Star K399, 215/60-8 (8 Ply Tyres)
Body & Chassis
Frame: Welded Steel with E-Coat & DuraShield™ Powder Coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded PP

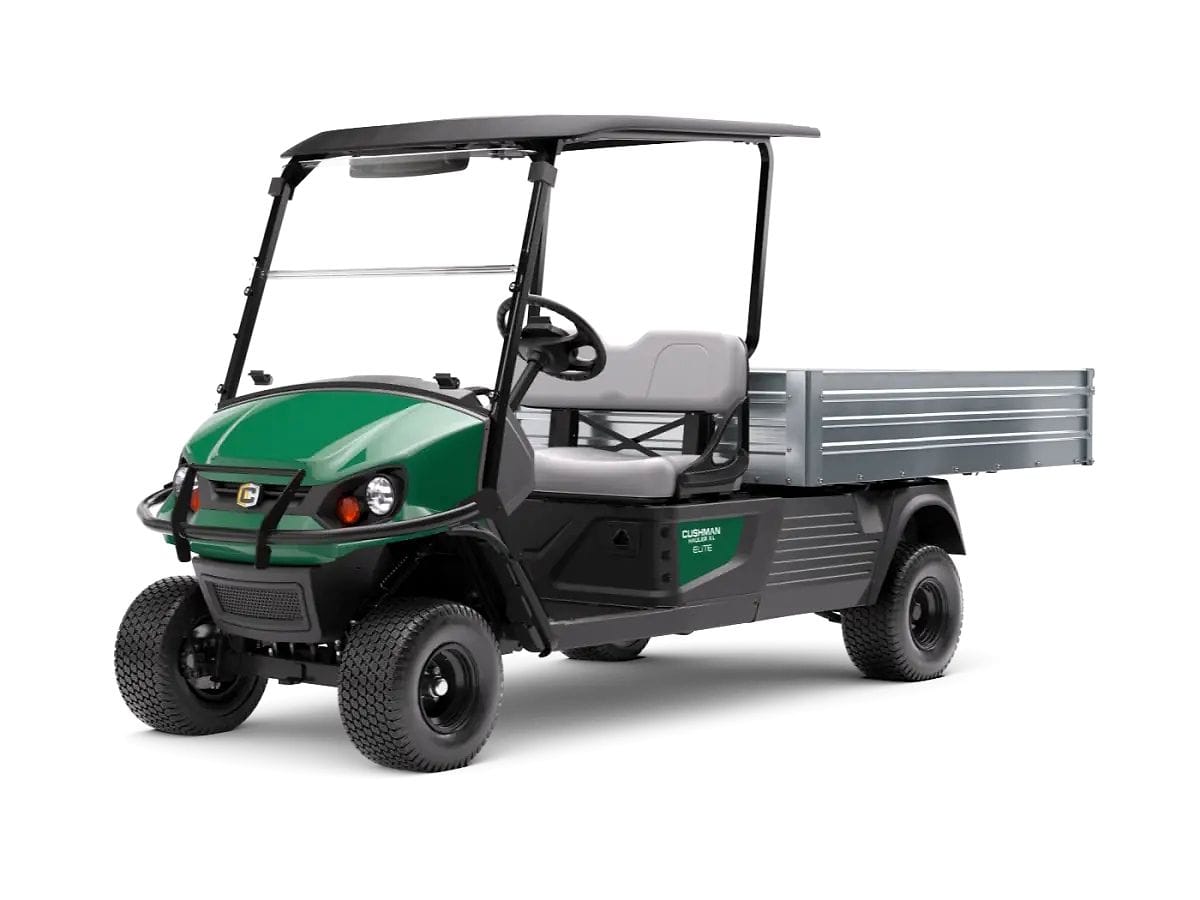

Standard Colour: Forest Green
Optional Colour: Flame Red, Patriot Blue, White, Black
)
)
)
