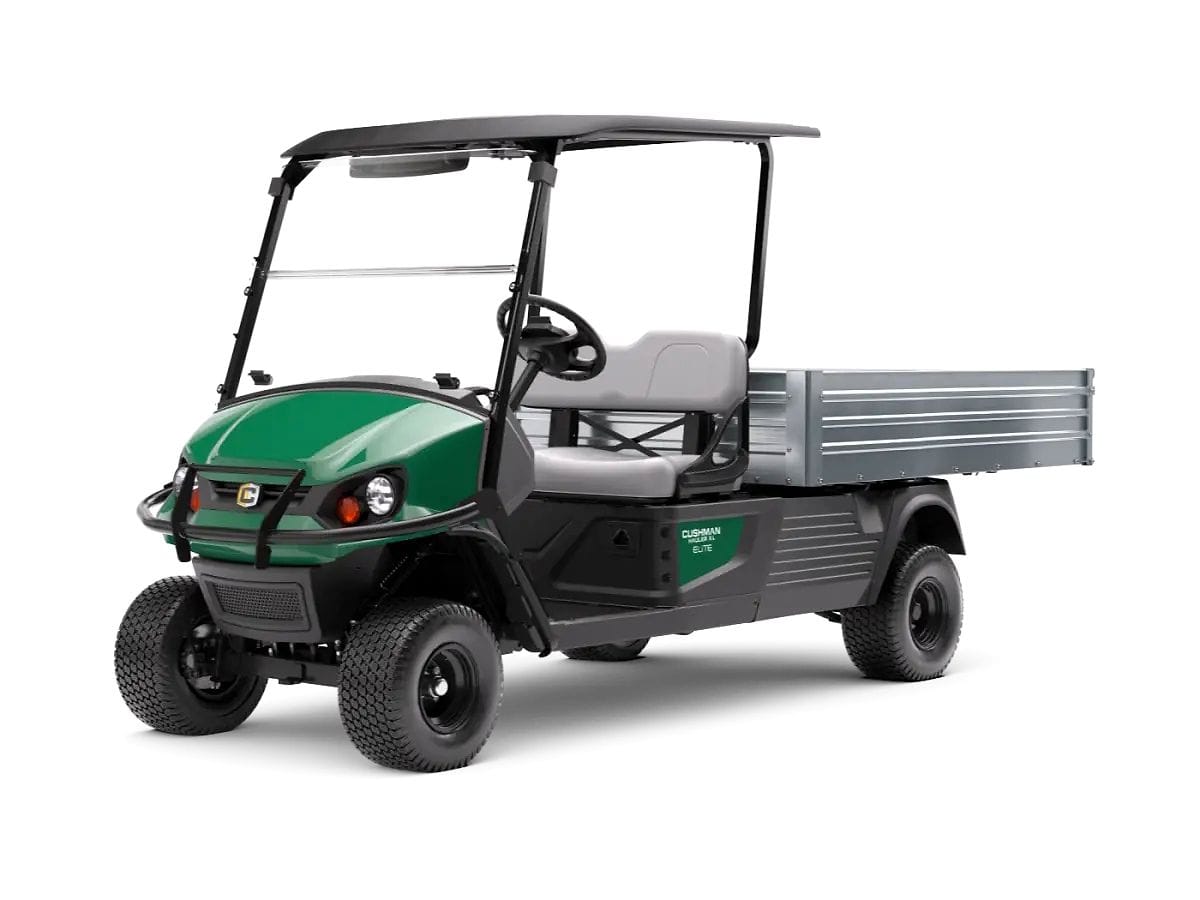

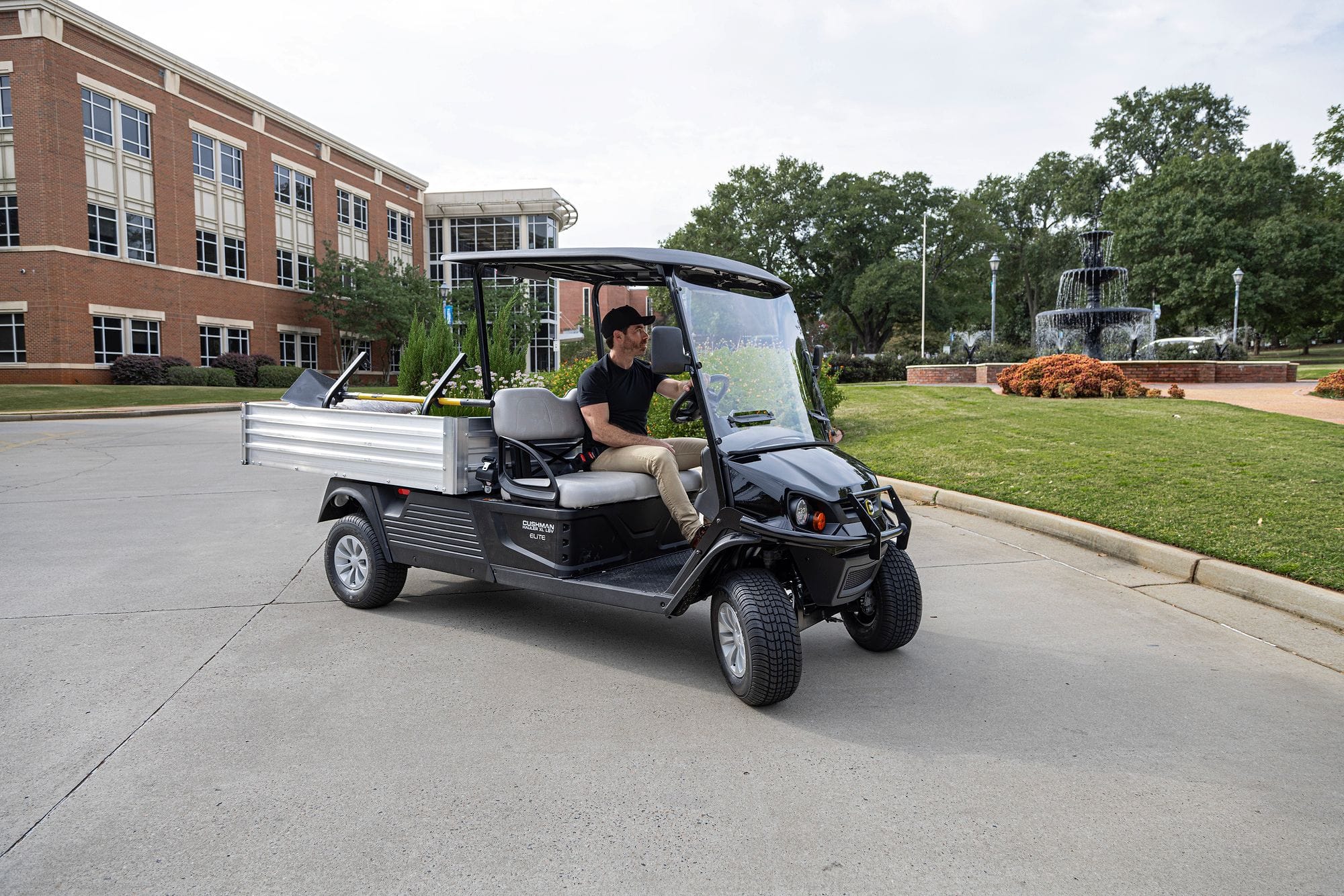

Hauler XL LSV
Face new challenges with the street-legal Hauler XL LSV featuring a 1200-lb deck capacity on a nearly 6-ft long aluminum flatbed. Take the base platform and make it your own through various options and accessories or the Custom Solutions team. Experience unbeatable performance with the ELiTE® lithium drivetrain powered by Samsung SDI technology that is purpose-built to keep your vehicle running with zero battery maintenance and zero tailpipe emissions.
Standard Features
- Street Legal Low Speed Vehicle (LSV) Per FMVSS500 and SAE J23 K399,
- 205/65-10, 6 Ply Tires on Black Wheels
- Large Fender Flares
- 25 mph speed setting
- ELiTE 4.2 Twin Pack Battery with ELiTE World Charger and DC/DC Converter
- Black Canopy with Occupant Protection Structure (ANSI Z71.9 Co
- Four Wheel Hydraulic Brakes with Front Disc/Rear Drum,
- Automatic Park Brake
- Seat Belts (SAE 386 Compliant)
- Limited Slip Differential
- DOT Approved Aero Windshield with Dual Adjustable Vents
- LED Headlights, Tail Lights, Brake Lights,
- Turn Signals, and Horn
- Rear View Mirror with Integrated Camera Display
- Comfort Grip Steering Wheel with Scorecard Holder
- Side View Mirrors
- Aluminum Flat Bed (Fixed)
- Center High Mount Stop Light with Backup Camera
- Gauges: Speed, SOC, Hour Meter
Options/Accessories
- IntelliGauge™ (ELiTE Only)
- 4-Wheel Hydraulic Brakes
- Locking Glove Box
- Bed Dividers
- Floor Mount Attachment
- Aluminum Cargo Bed
- Steel Drop Side Rails
- Long-Handled Tool Holders
- Radio Holder
- LED Headlights
- LED Taillights/Brake Lights
- Rearview Mirror
- USB Port
- Unique Key Switch
- Side Body Color
- Weather Enclosure
- ROPS-Certified Cab
- Ball Cage
Specifications
Dimensions
Overall Length: 352.7 cm
Overall Width: 120 cm
Overall Height (with canopy): 183.5 cm
Wheel Base: 236.2 cm
Front Wheel Track: 94 cm
Rear Wheel Track: 97.2 cm
Ground Clearance (at differential): 15.9 cm
Cargo Flat Bed: 174 cm x 120 cm
Power
Powersource: 56 Volt Lithium Ion Battery
Motor Type: AC Induction
Horsepower: 14.9 HP
Electric System: 48 Volt Primary, 12 V Auxiliary
Battery (qty/type): Lithium
Key or Pedal Start: Pedal Start
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Neutral-Reverse
Rear Axle Ratio: 16.99:1
Performance
Seating Capacity: 2 Person Bench
Curb Weight: 462 Kg
Vehicle Load Capacity: 726 Kg
Bed Load Capacity: 544 Kg
Towing Capacity: 680 Kg
Outside Clearance Circle: 8.17 m
Speed (level ground): 40.2 Kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Four-Wheel Hydraulic, Front Disk; Rear Self-Adjusting Drum
Parking Brake: Auto Electro Magnetic
Tyres: Load Star K399, 215/60-8 (8 Ply Tyres)
Body & Chassis
Frame: Welded Steel with E-Coat & DuraShield™ Powder Coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded PP
Standard Colour: Forest Green
Optional Colour: Flame Red, Patriot Blue, White, Black
)
)
)
