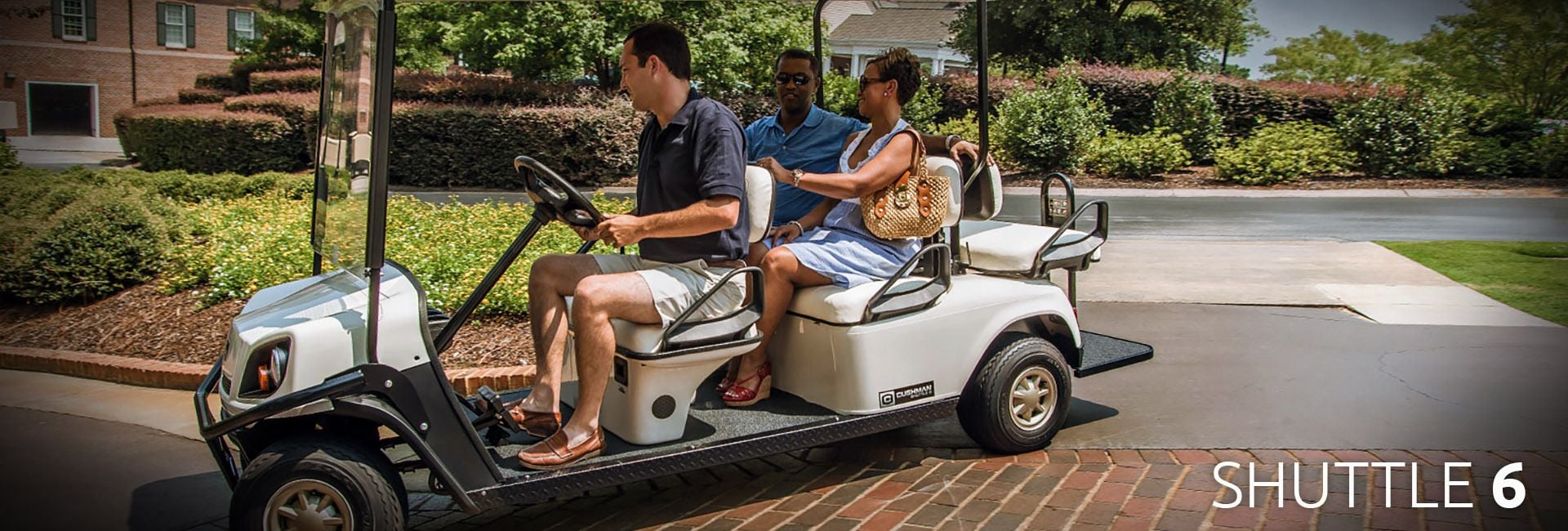

Shuttle 6 - ELiTE Lithium

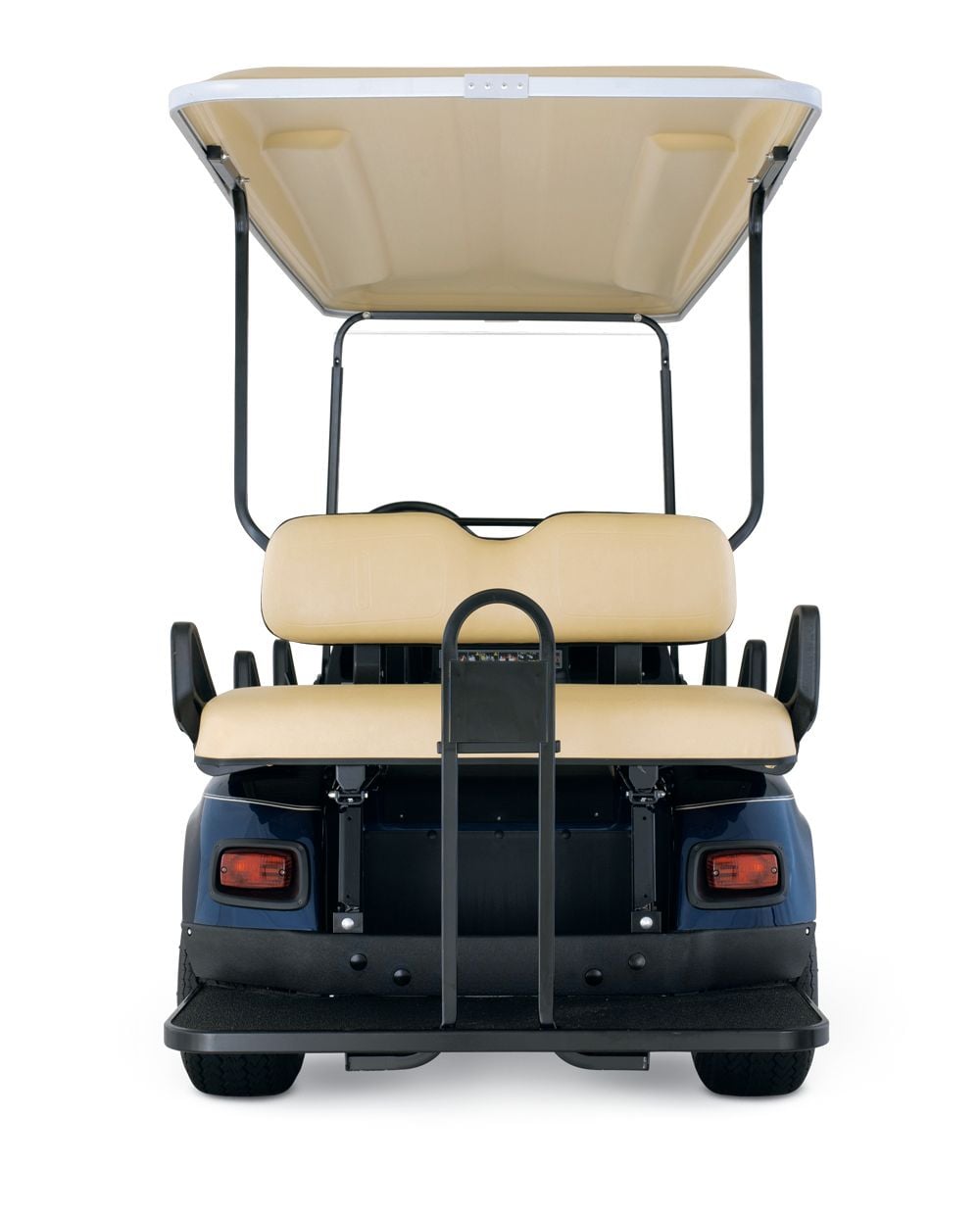

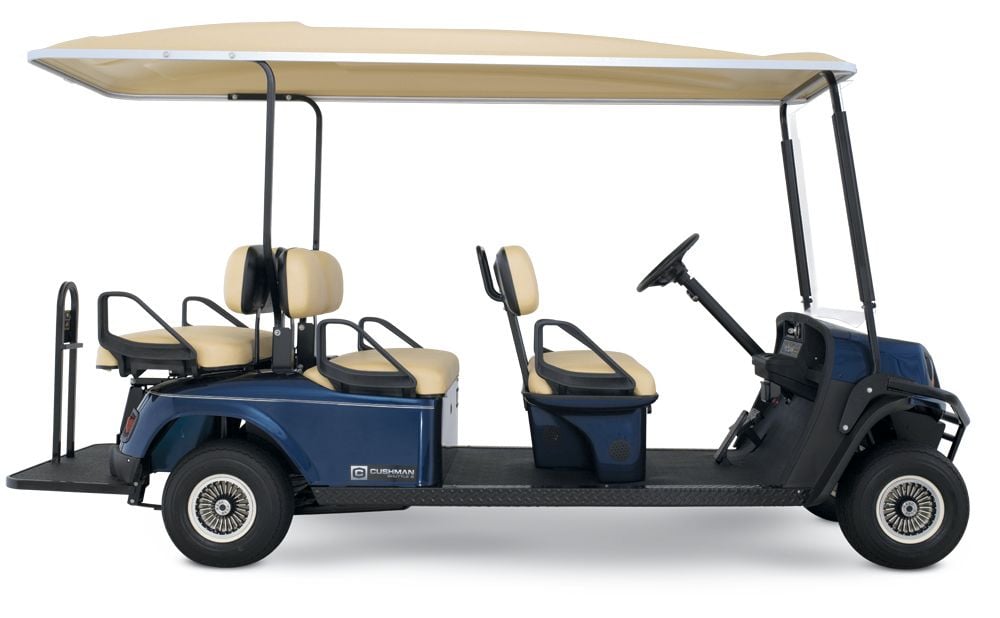

With four forward-facing seats and two rear-facing seats, the Shuttle 6 has the capacity to get you where you need to be. The transformative rear-facing seat can be flipped down for additional storage to maximize efficiency. Offered with a maintenance-free ELiTE® lithium battery powered by Samsung SDI technology the Shuttle 6 ensures a dependable ride every time.
Standard Features
- Samsung Lithium Ion Maintenance Free Battery Pack Including Battery Management System
- Extended Top Assembly ( Black, Tan or Oyster)
- Battery Charger
- State of Charge Meter
- Tail & Brake Lights,
- Turn Signals
- Hour Meter
- DC Converter
- Front Hydraulic Disc Brakes
- Loadstar K399 Tyres 18x8.50 - 8 (Load Range C)
- Limited Slip Differential
- Unique Group Key Switch
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- Split Windshield
- Rabbit/ Turtle Speed Switch
- Round Convex Mirror
- Front Bumper/Brush Guard
- Dual USB Port
- High Output LED Headlights
- Horn and Reverse Beeper
- Rear View Mirrors
- Choice of Colour
Options/Accessories
- Steel Rear Tray
- Lockable Glove Box
- All Weather Enclosures
- Retractable Seatbelts
- High Output LED Headlights
- Rotating Strobe Light
Specifications
Dimensions
Overall Length: 345 cm
Overall Width: 123 cm
Overall Height (with canopy): 183 cm
Wheel Base: 237 cm
Front Wheel Track: 87 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 11 cm
Power
Powertrain: 56 Volts AC
Horsepower: 13.1 HP (9.8) kW Peak
Electric System: 56 Volt
Battery (qty/type): 3 Lithium Ion Packs
Key or Pedal Start: Pedal Start
Battery Charger: 56VDC, 120/230 VAC, UL/CSA, CE
Speed Controller: 300 Amp AC Controller
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 17:01
Performance
Seating Capacity: 6 Person
Dry Weight (without battery): 437 Kg
Curb Weight: 483 Kg
Vehicle Load Capacity: 544 Kg
Outside Clearance Circle: 7.8 m
Speed (level ground): 24 kph ± 0.8 kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Automatic, Electromagnetic
Tyres: 18 - 8.5 - 8 (4 Ply Rated)
Body & Chassis
Frame: Welded steel with Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded TPO
Standard Colour: Patriot Blue
