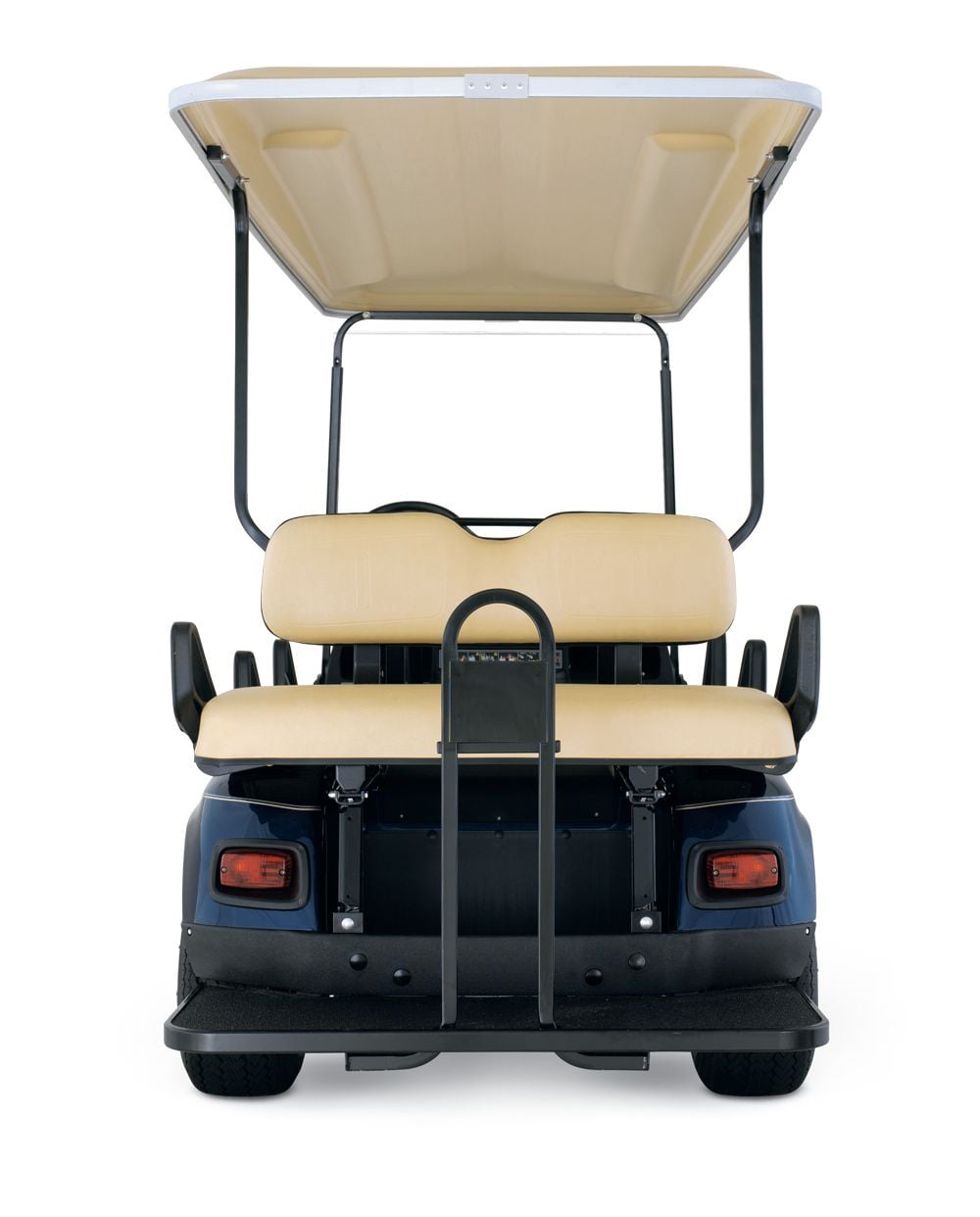

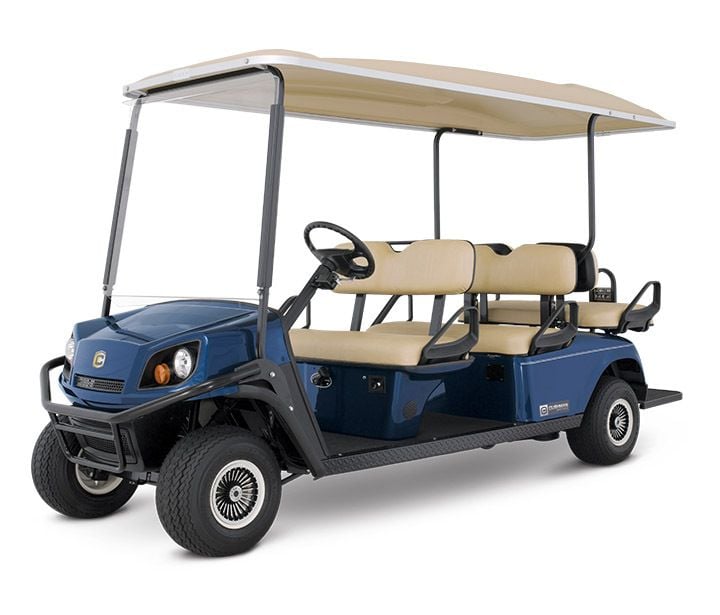

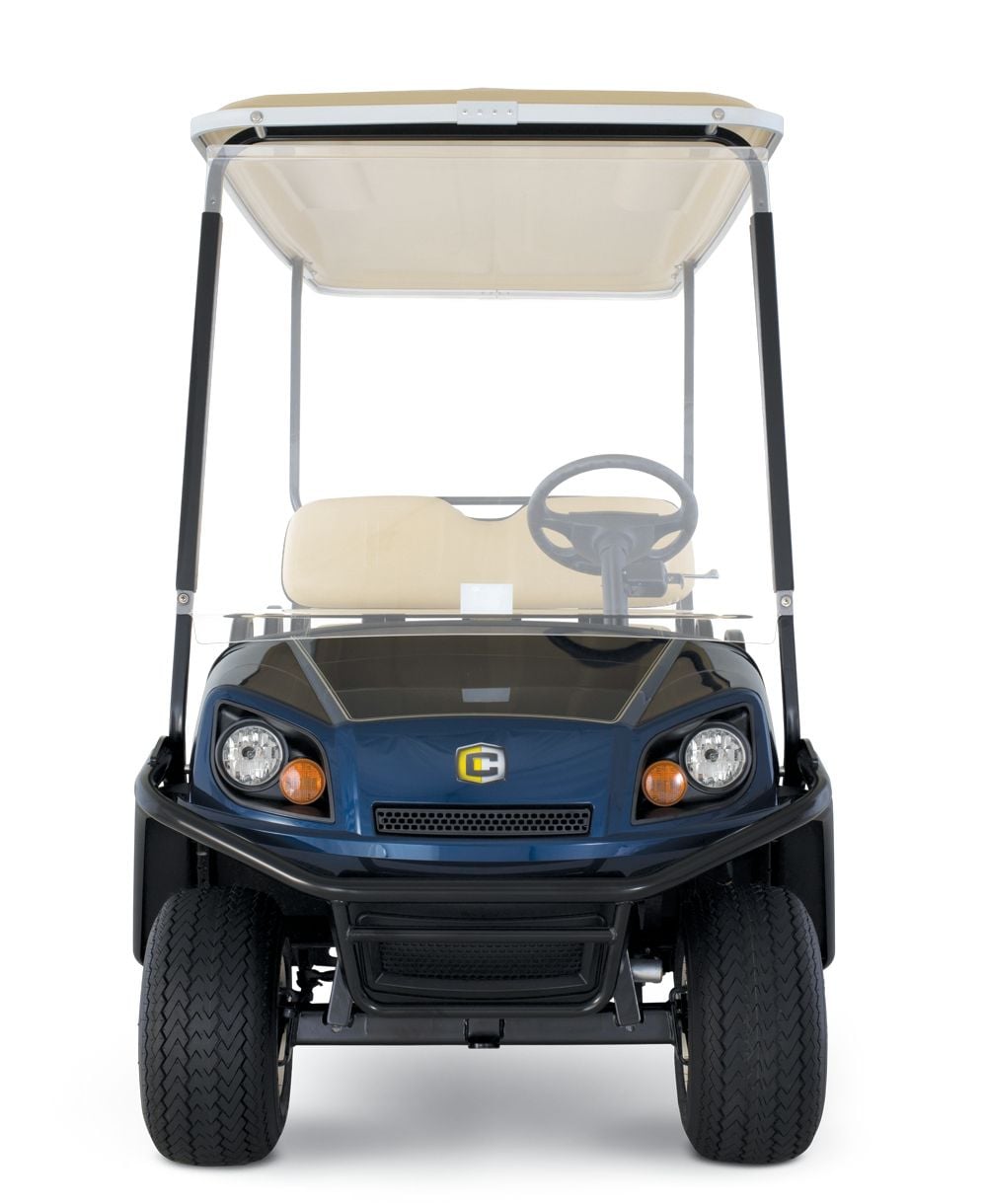

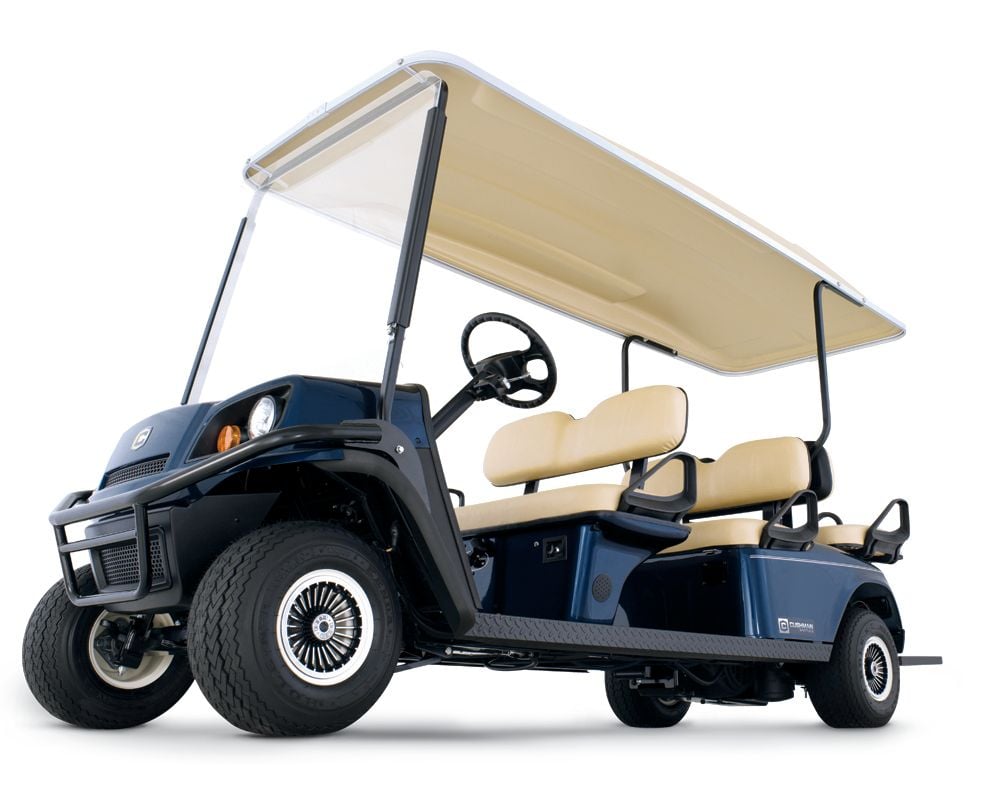

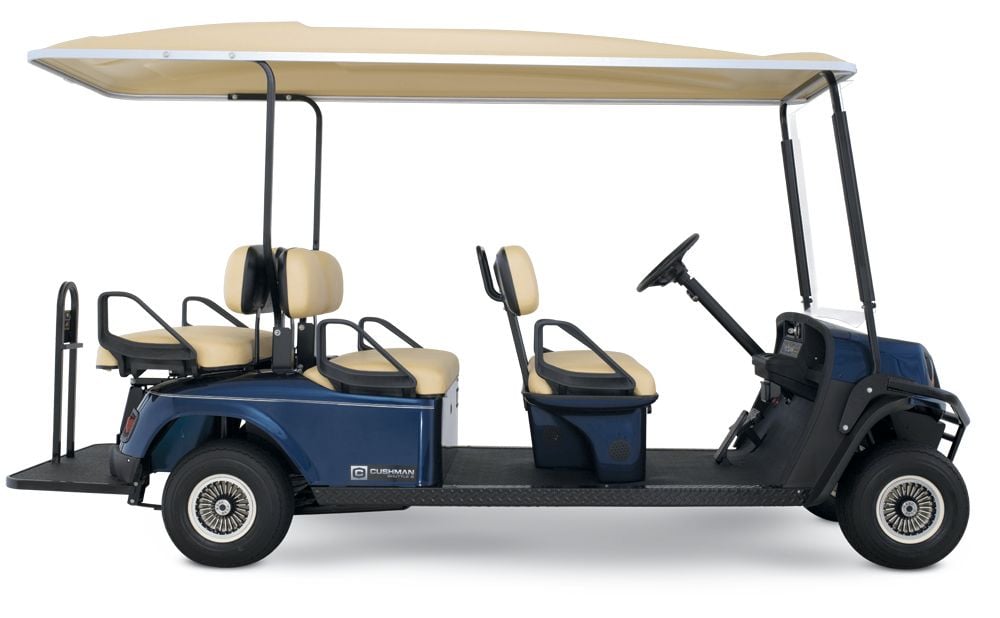

Shuttle 6 - 13.5 hp Petrol EFI
Take your people-moving power to the next level with the six-passenger Shuttle 6 personnel carrier. With spacious bench seating, headlights for early morning or late nights, and your choice of gas or electric powertrains, it always delivers a safe and comfortable ride.
Standard Features
- Kawasaki 13hp Single Cylinder Petrol Engine with Closed Loop Electronic Fuel Injection
- 6 Seater with Rear Flip Flop Seat ( Grey Seating)
- Extended Top Assembly ( Black, Tan or Oyster)
- Low Fuel/Oil Gauge
- Head Tail & Brake Lights,
- Turn Signals
- Hour Meter
- Front Hydraulic Disc Brakes
- Loadstar K399 18x8.50 - 8 (Load Range C)
- Limited Slip Differential
- Unique Group Key Switch
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- Split Windshield
- Round Convex Mirror
- Front Bumper/Brush Guard|
- Dual USB Port
- High Output LED Headlights
- Horn and Reverse Beeper
- Rear View Mirrors
-
Choice of Colour
Options/Accessories
- Lockable Glove Box
- All Weather Enclosures
- Retractable Seatbelts
- Rotating Strobe Light
Specifications
Dimensions
Overall Length: 345 cm
Overall Width: 123 cm
Overall Height (with canopy): 183 cm
Wheel Base: 237 cm
Front Wheel Track: 87 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 11 cm
Power
Powertrain: 4 Cycle, 24.5 ci (401cc) Cylinder
Valvetrain: Single Cylinder OHV
Horsepower: 13.5 hp (10.1kW)
Electric System: Starter/Generator. Solid State Reg
Battery (qty/type): One, 12v Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner: Replaceable Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin On
Cooling System: Air Cooled
Fuel Capacity: 22.7 Litre
Drive Train: Continuously Variable Transmission
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Reverse
Rear Axle Ratio: 11.47:1 (Forward) 14.35:1 (Reverse)
Performance
Seating Capacity: 6 Person
Dry Weight (without battery): N/A
Curb Weight: 528 Kg
Vehicle Load Capacity: 544 Kg
Outside Clearance Circle: N/A
Speed (level ground): 22.5 kph ± 0.8 kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: 18 - 8.5 - 8 (4 Ply Rated)
Body & Chassis
Frame: Welded steel with Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded TPO
Standard Colour: Ivory
Optional Colour: Almond, Black, Electric Blue, Flame Red, Patriot Blue, White, Safety Yellow, Forest Green, Platinum, Metallic Charcoal, Sunburst Orange
Available Seat Colours: Tan, Oyster, Grey
)
