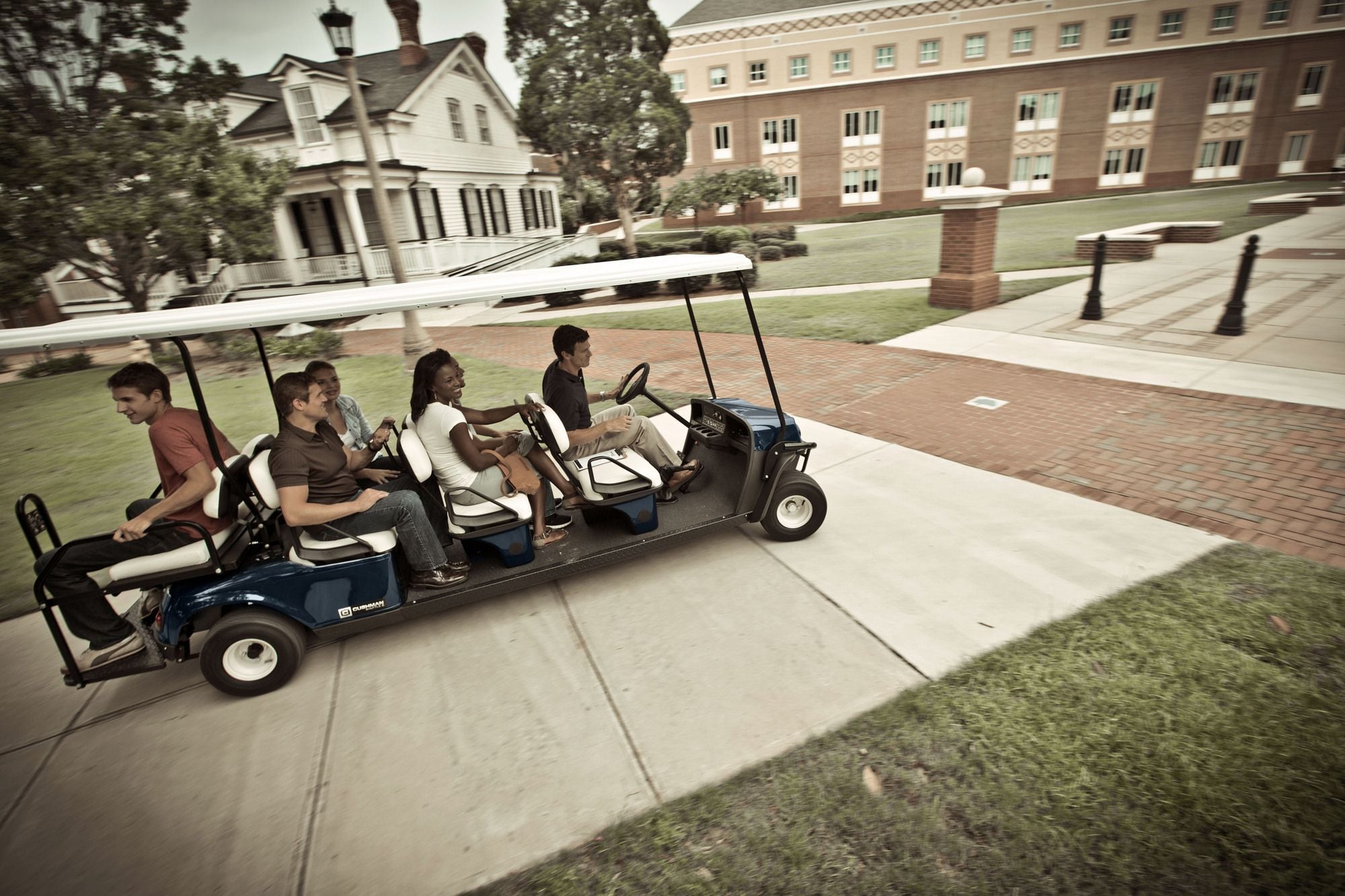

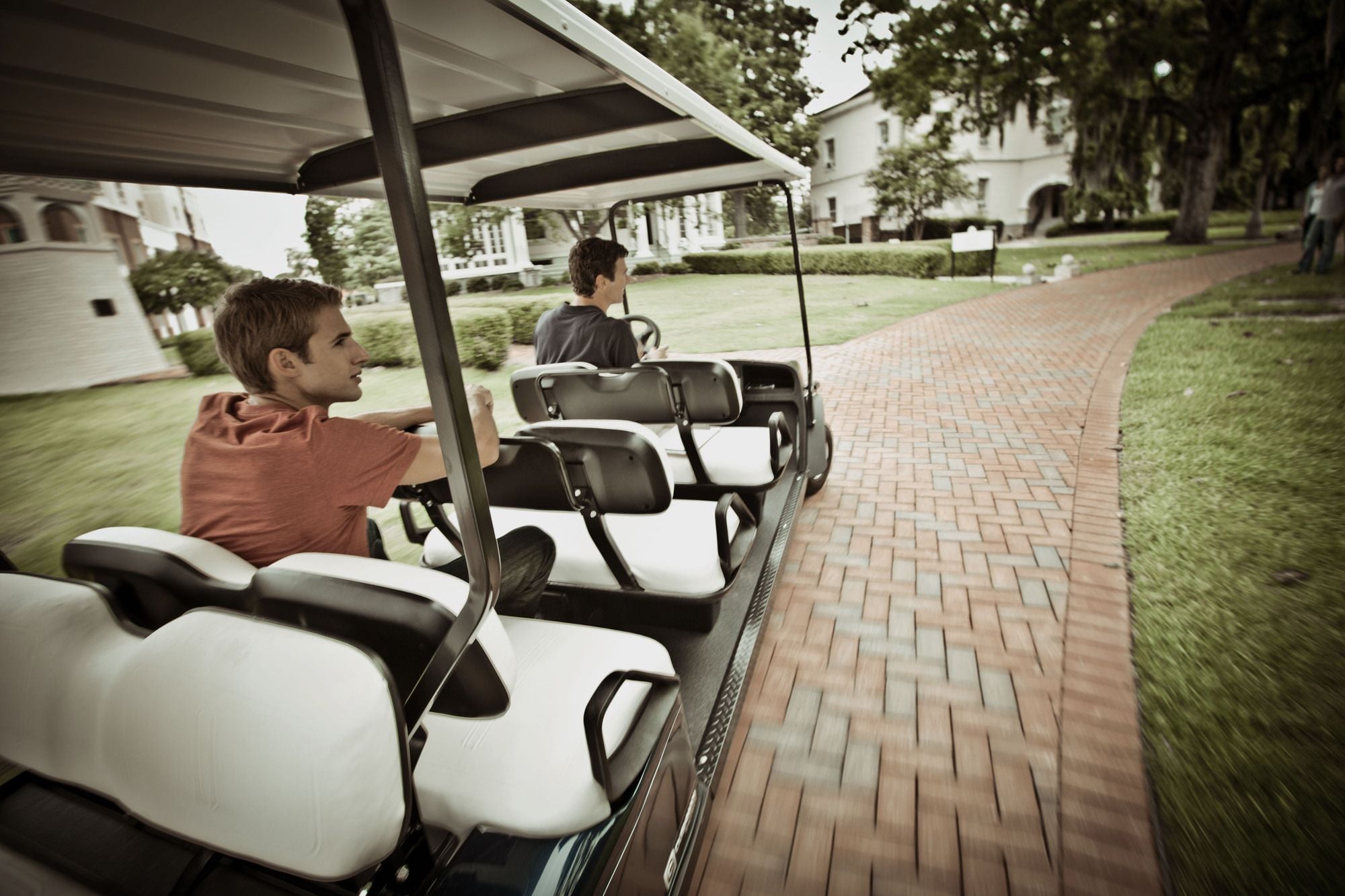

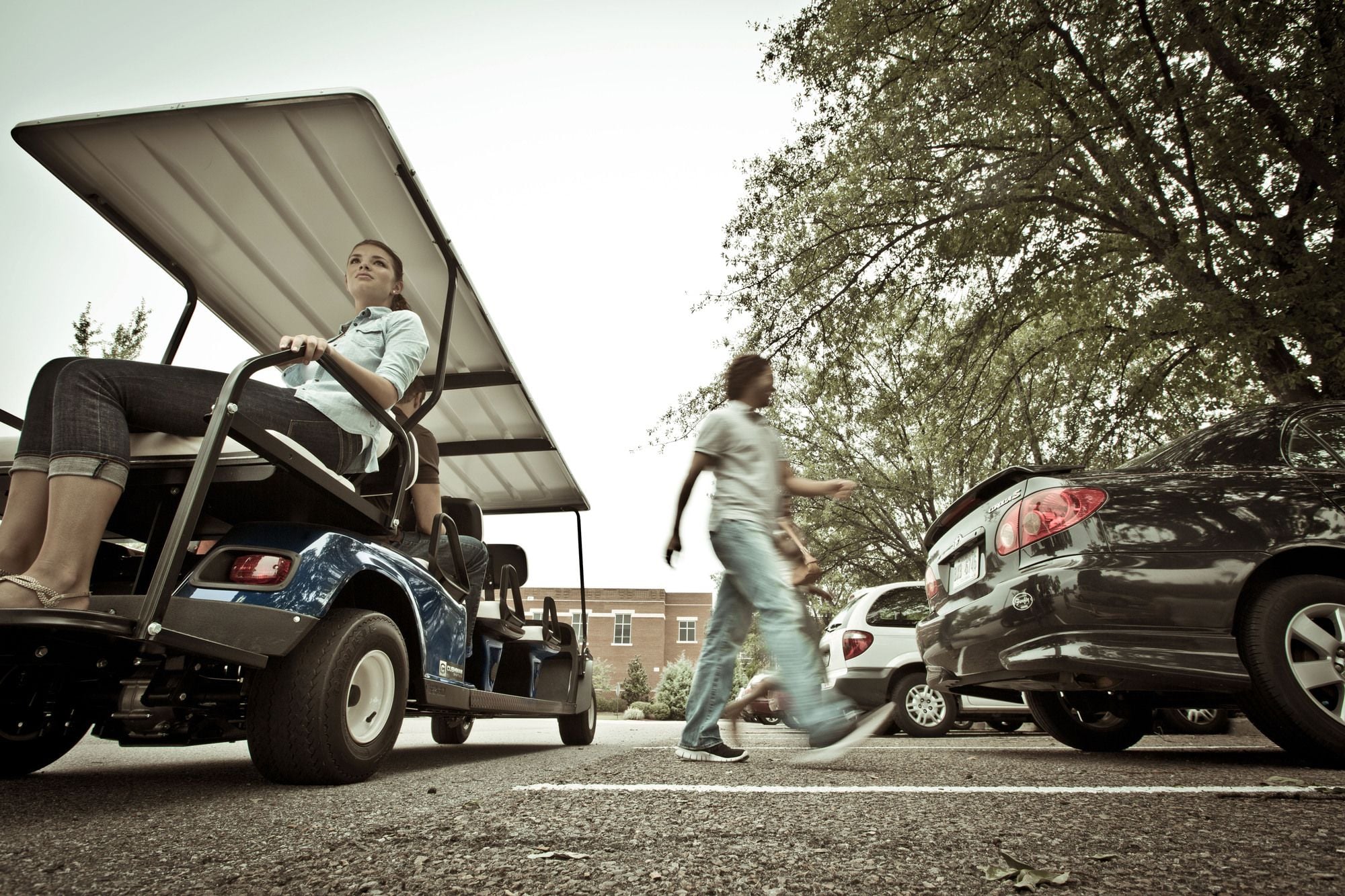

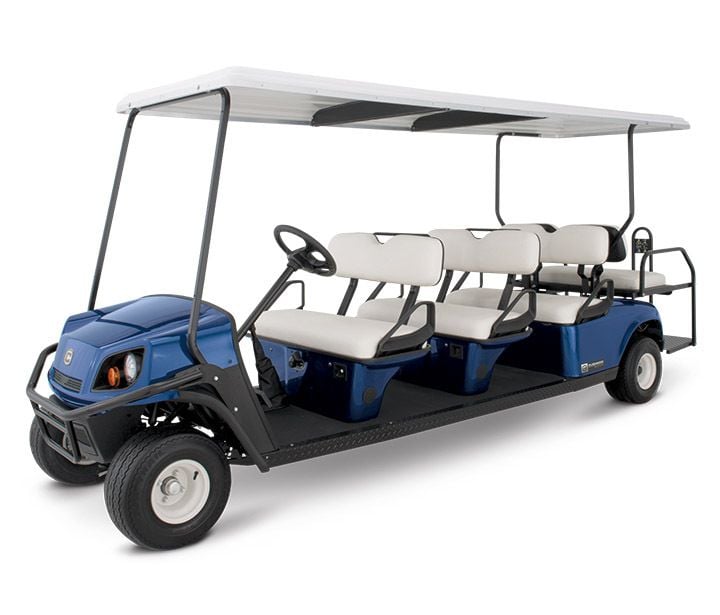

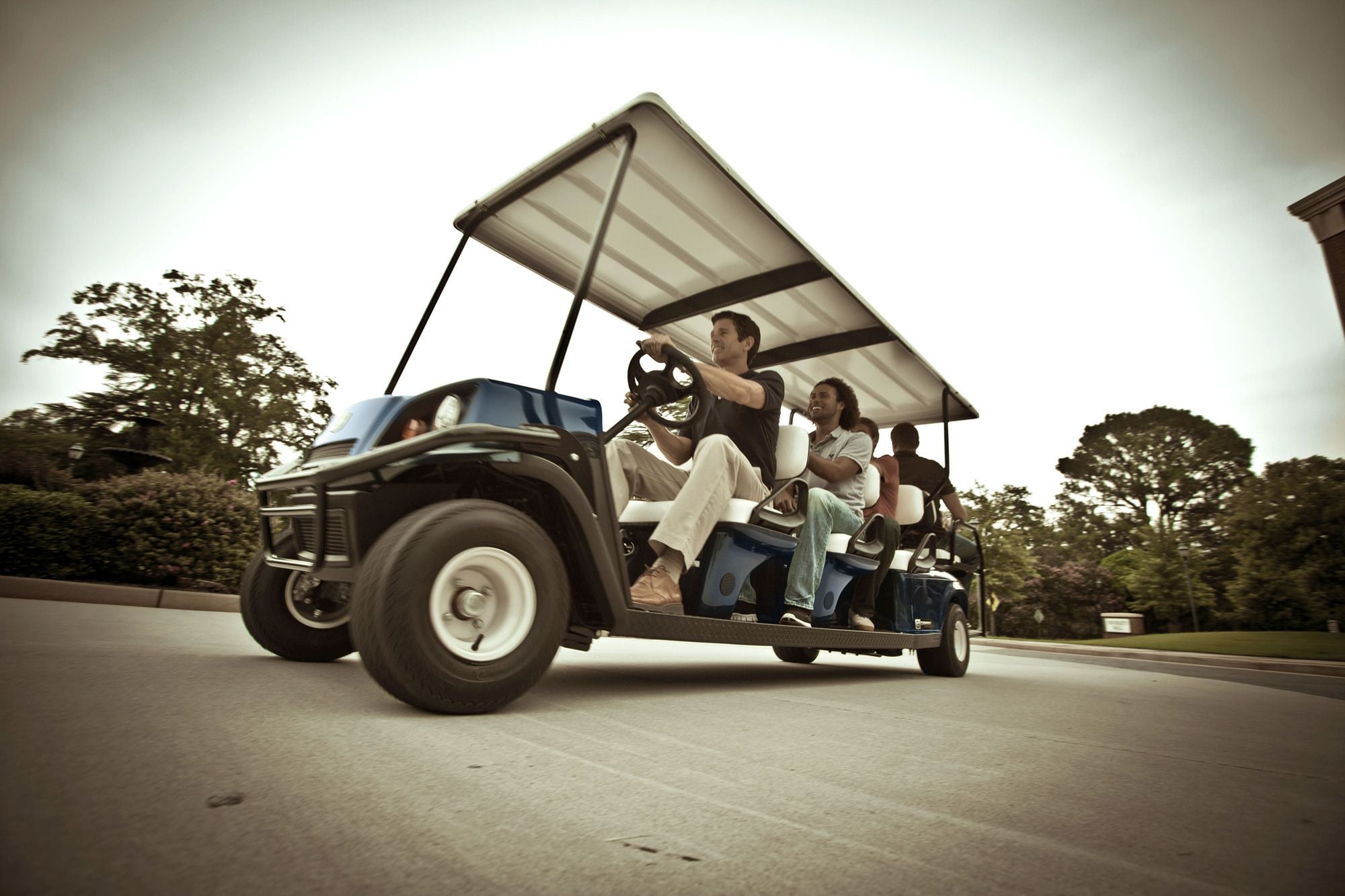

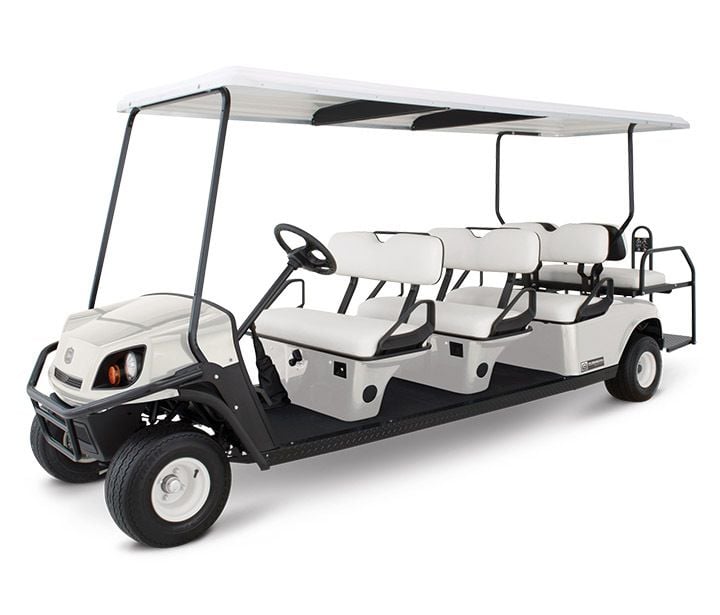

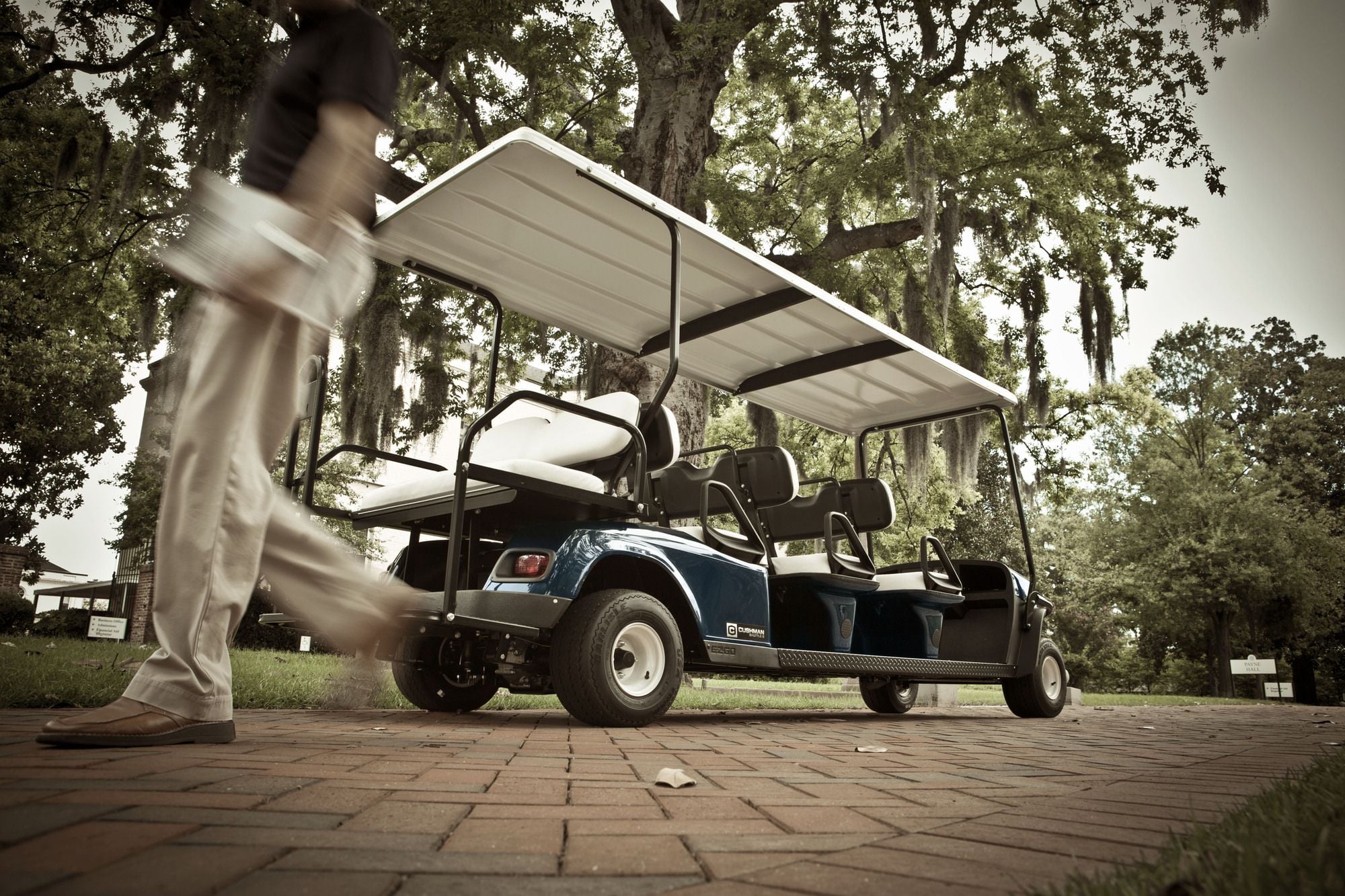

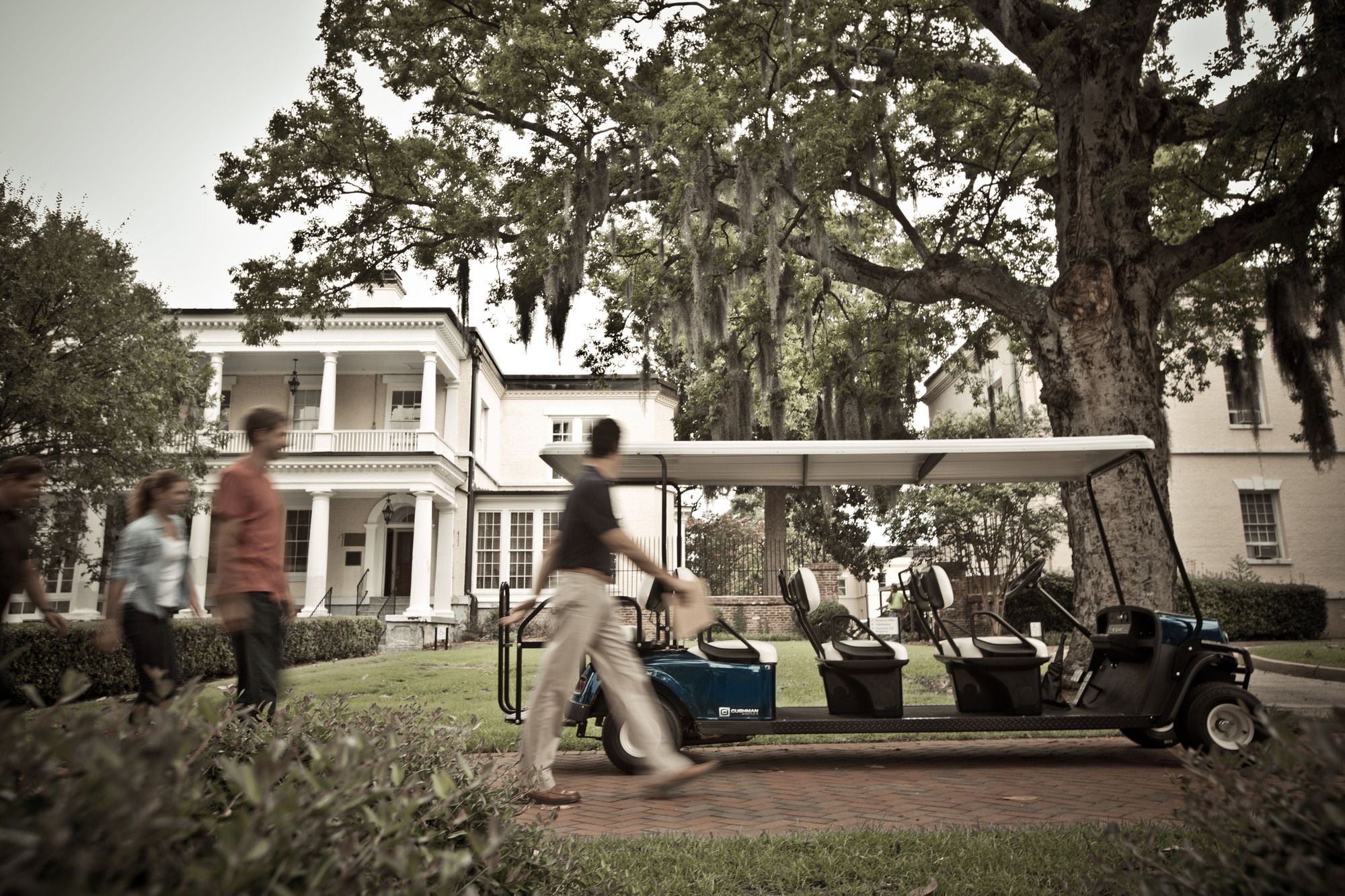

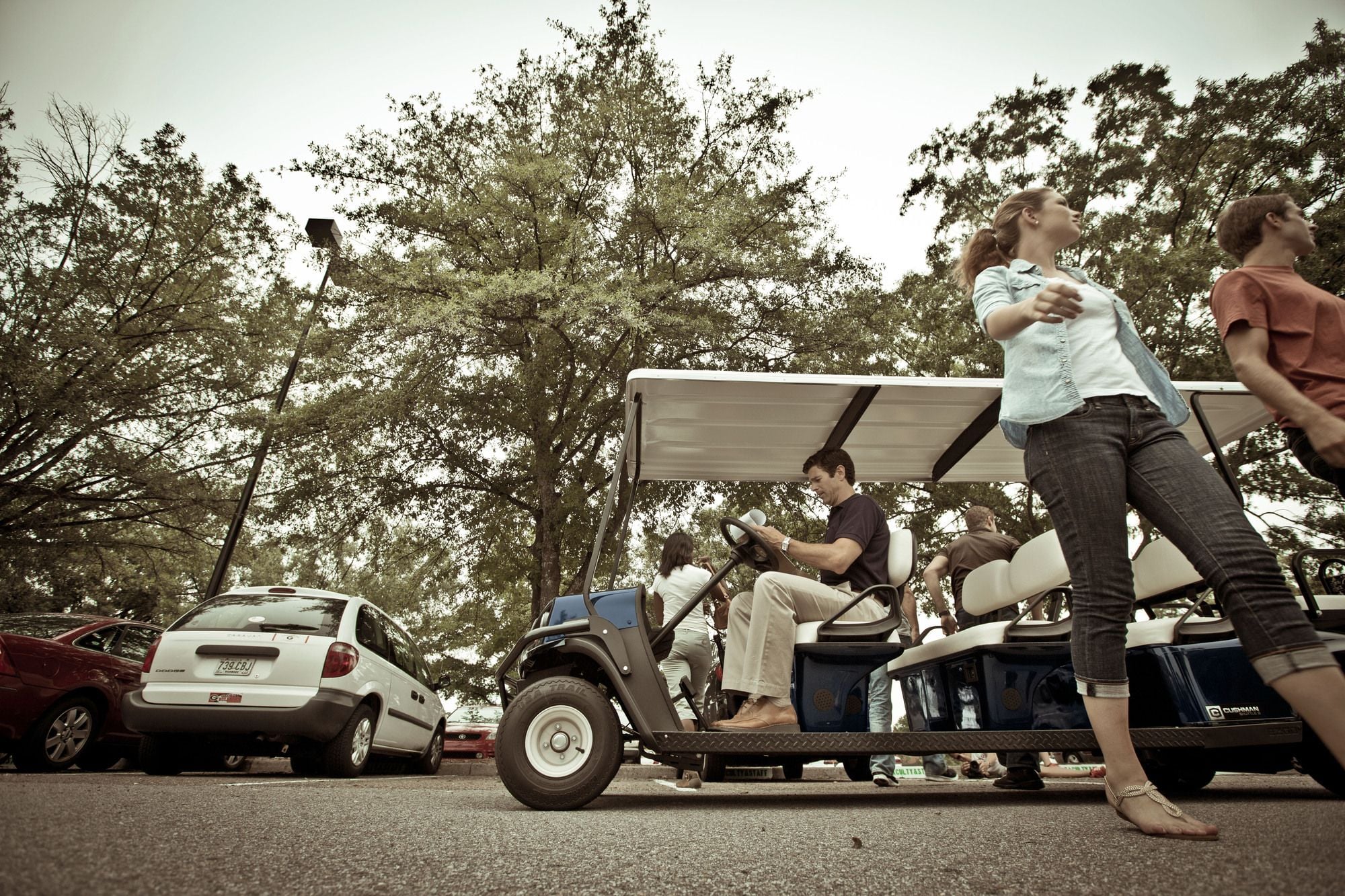

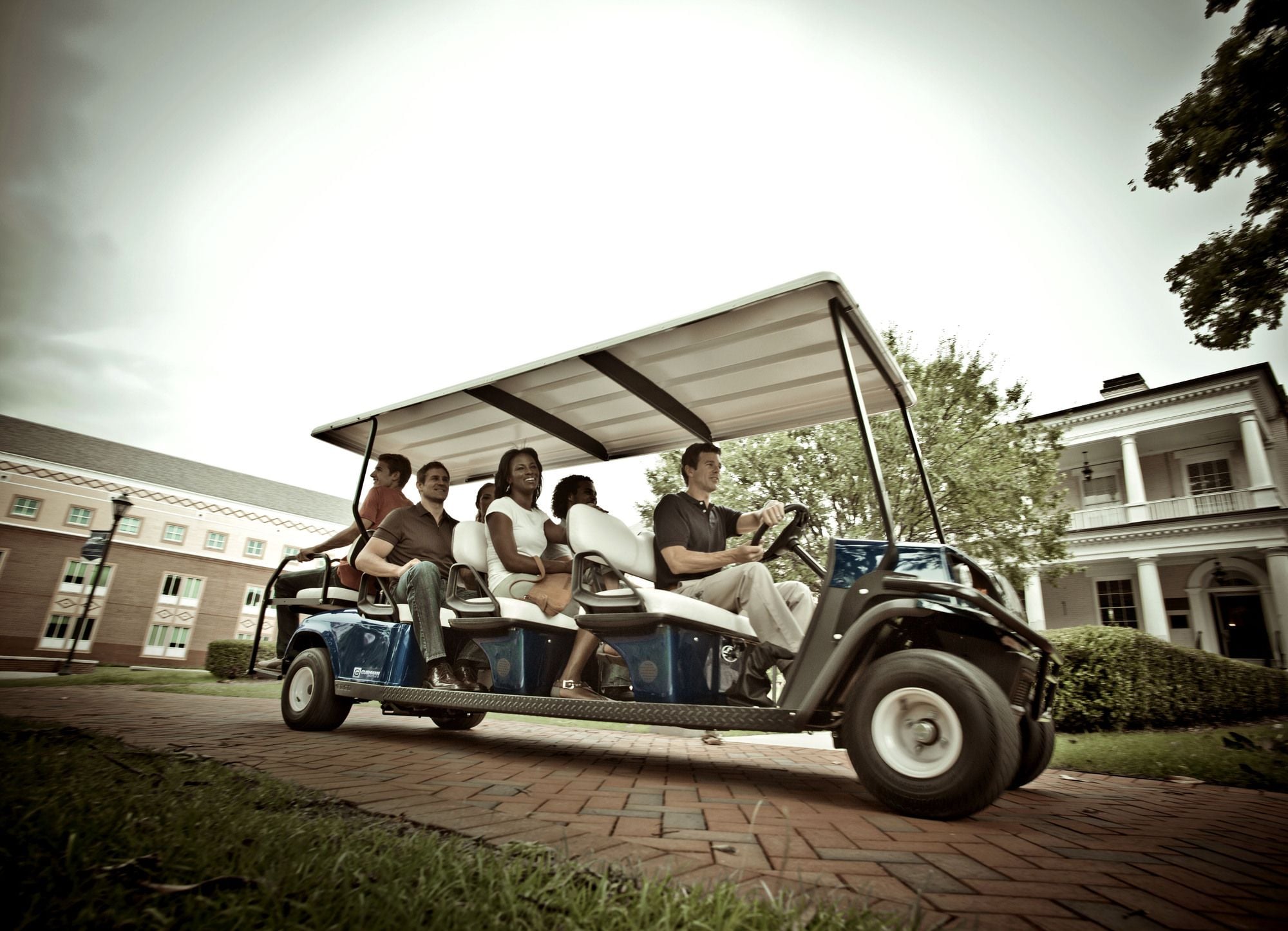

Shuttle 8 - Petrol

Designed for safety and comfort, the Shuttle 8 personnel transport vehicle delivers all the space you need. Features like a large canopy, ergonomically-designed seating, and dependable powertrain options keep guests and workers happy.

Specifications

Dimensions

Overall Length: 425 cm
Overall Width: 126 cm
Overall Height (with canopy): 193 cm
Wheel Base: 313 cm


Power

Powertrain: 4 Cycle, 24.5 ci (401cc) Cylinder
Valvetrain: Single Cylinder OHV
Horsepower: 13.5 hp (10.1kW) Exceeeds SAEJ1940 Standard
Electric System: Starter/Generator. Solid State Reg
Battery (qty/type): One, 12v Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner: Replaceable Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin On
Cooling System: Air Cooled
Fuel Capacity: 22 Litre
Drive Train: Continuously Variable Transmission
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Reverse

Performance

Seating Capacity: 8 Person
Dry Weight (without battery): N/A
Curb Weight: 574 Kg
Vehicle Load Capacity: 726 Kg
Outside Clearance Circle: N/A
Speed (level ground):  26 kph ± 0.8 kph
