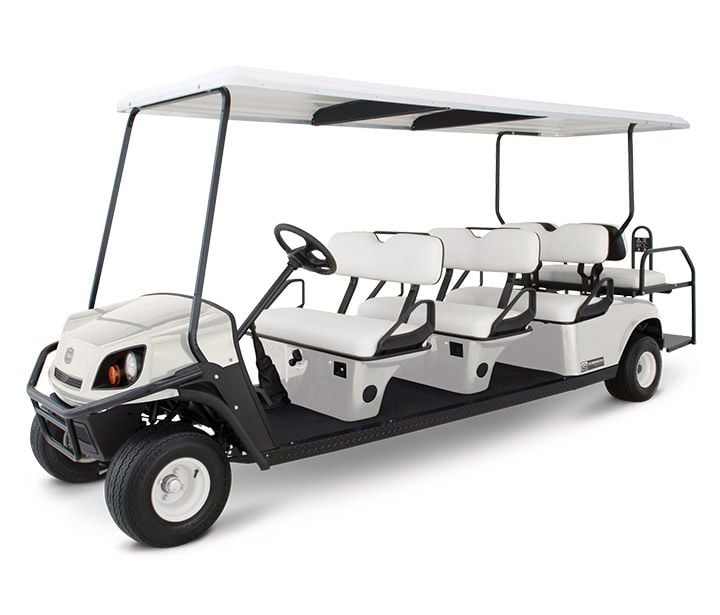

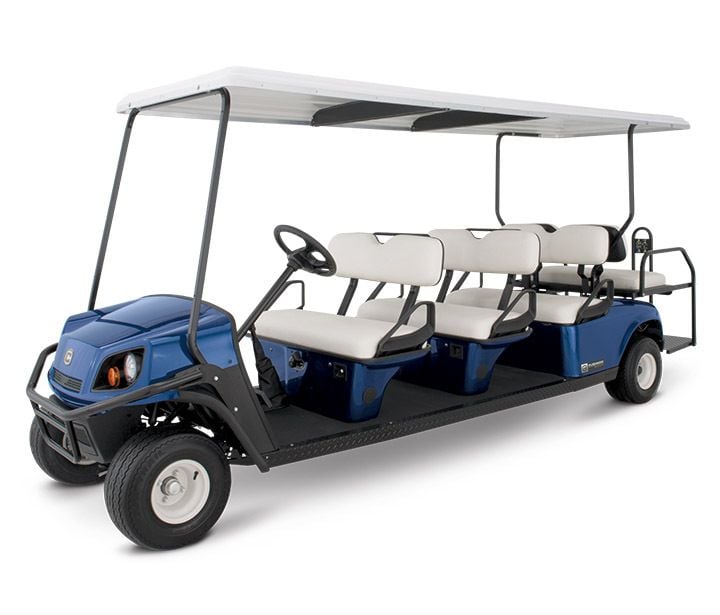

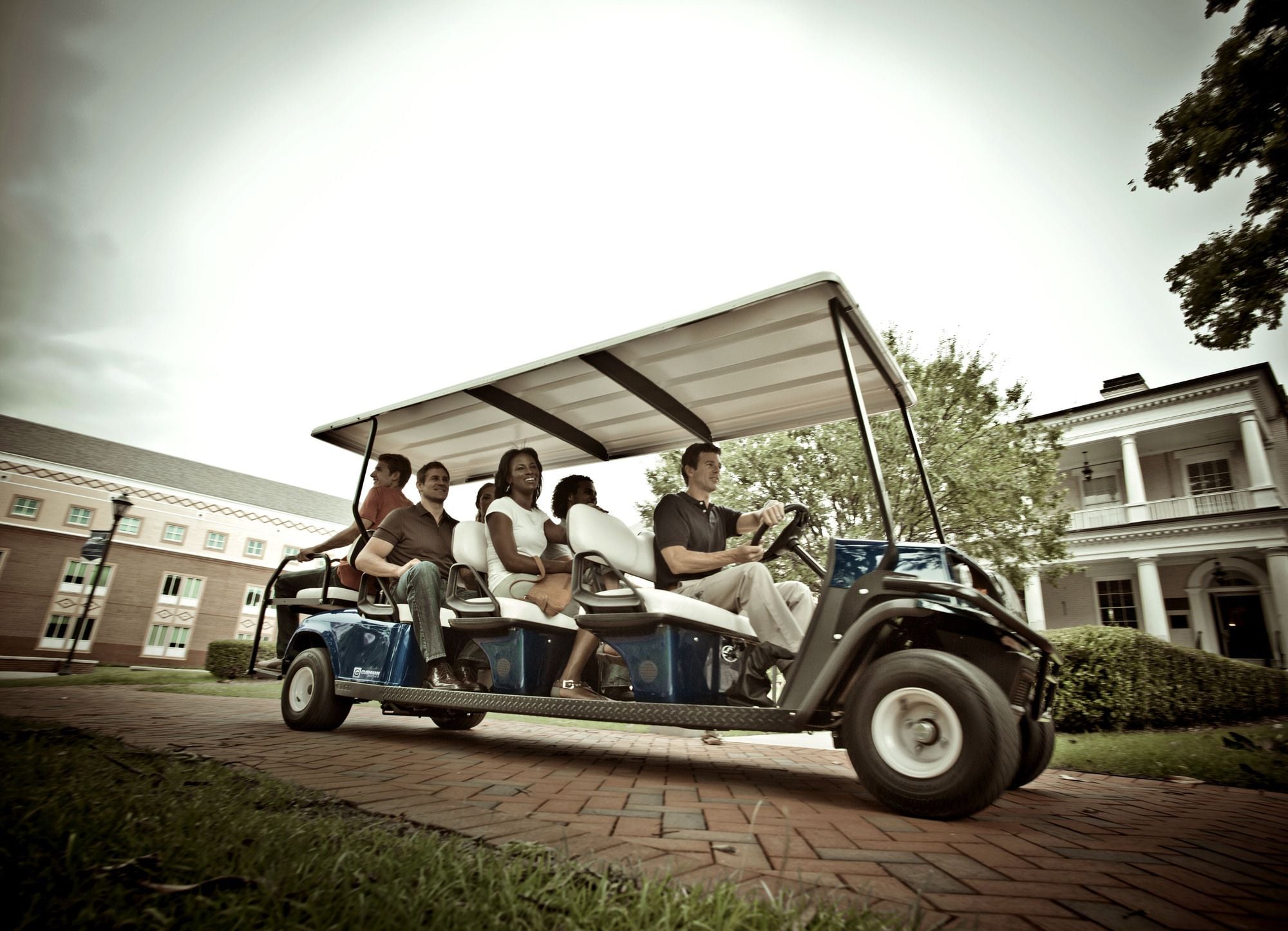

Shuttle 8 - Electric

Designed for safety and comfort, the Shuttle 8 personnel transport vehicle delivers all the space you need. Features like a large canopy, ergonomically-designed seating, and dependable powertrain options keep guests and workers happy.

Specifications

Dimensions

Overall Length: 425 cm
Overall Width: 126 cm
Overall Height (with canopy): 193 cm
Wheel Base: 313 cm


Power

Powertrain: 48 Volt, DC Shunt Wound
Horsepower: 13.5kW (18.1hp)
Electric System: 48 Volt
Battery (qty/type): Eight, 6 Volt, Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 48 Volt, Lightweight, Delta Q with 3m DC cord
Speed Controller: 400 amp Precision Drive System (PDS)
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse


Performance

Seating Capacity: 8 Person
Dry Weight (without battery): 320 Kg
Curb Weight: 540 Kg
Vehicle Load Capacity: 540 Kg
Outside Clearance Circle: 10 m
Speed (level ground):  21kph ± 0.8kph
