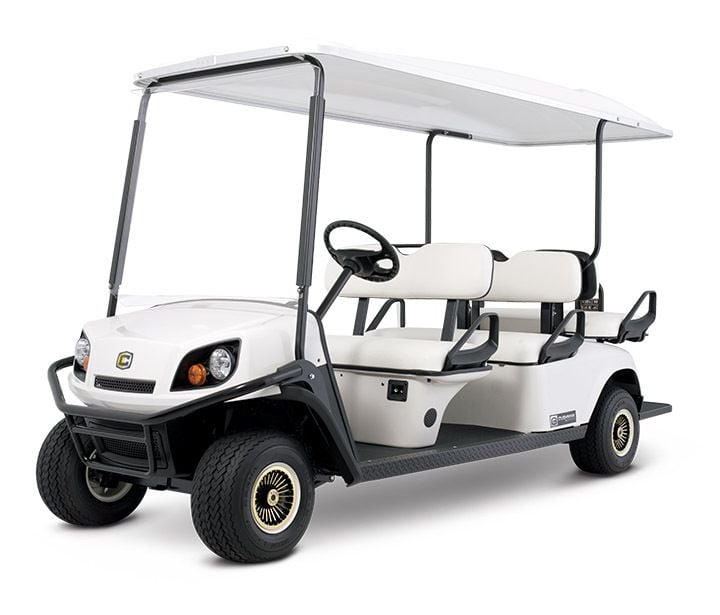

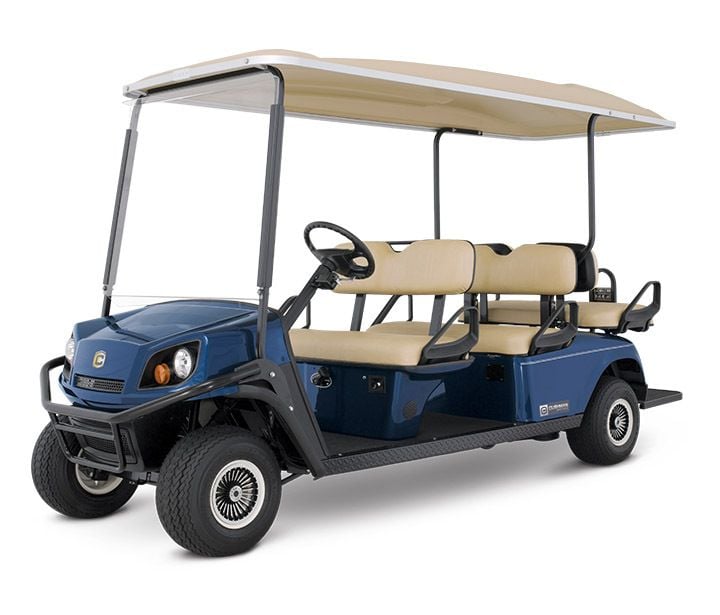

Shuttle 6 - Electric

Take your people-moving power to the next level with the six-passenger Shuttle 6 personnel carrier. With spacious bench seating, headlights for early morning or late nights, and your choice of gas or electric powertrains, it always delivers a safe and comfortable ride.

Specifications

Dimensions

Overall Length: 345 cm
Overall Width: 123 cm
Overall Height (with canopy): 183 cm
Wheel Base: 237 cm

Power
Powertrain: 48 Volts DC Shutn Wound
Horsepower: 22.4 HP ( 16.7 kW) Peak
Electric System: 48 Volt
Battery (qty/type): Eight, 6 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 48 VDC Delta Q, 120/230 VAC, UL & CSA
Speed Controller: 400 Amp Precision Drive System (PDS)
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse


Performance


Seating Capacity: 6 Person
Dry Weight (without battery): 327 Kg
Curb Weight: 545 Kg
Vehicle Load Capacity: 540 Kg
Outside Clearance Circle: 7.8 m
Speed (level ground):  21 kph ± 0.8 kph
