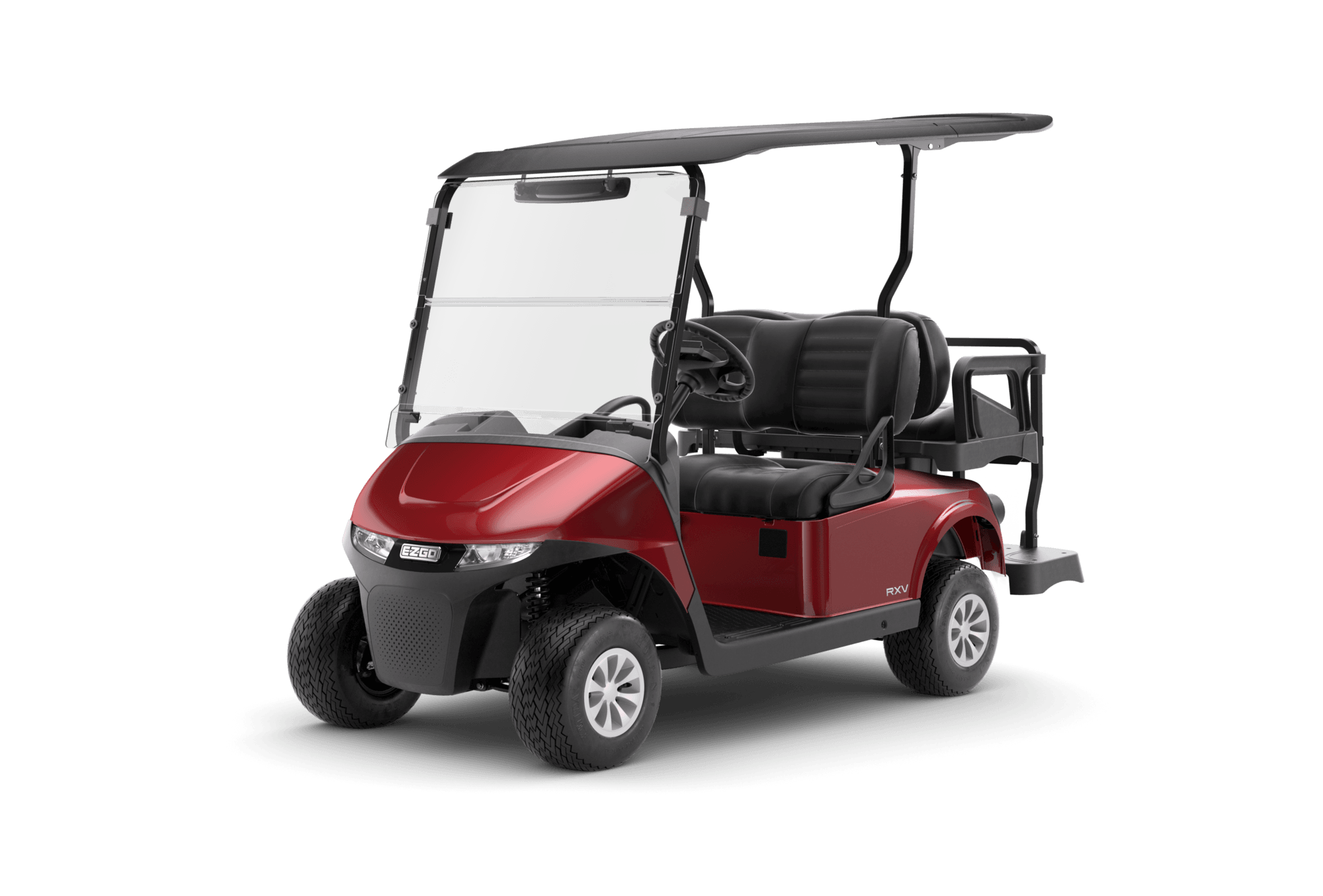

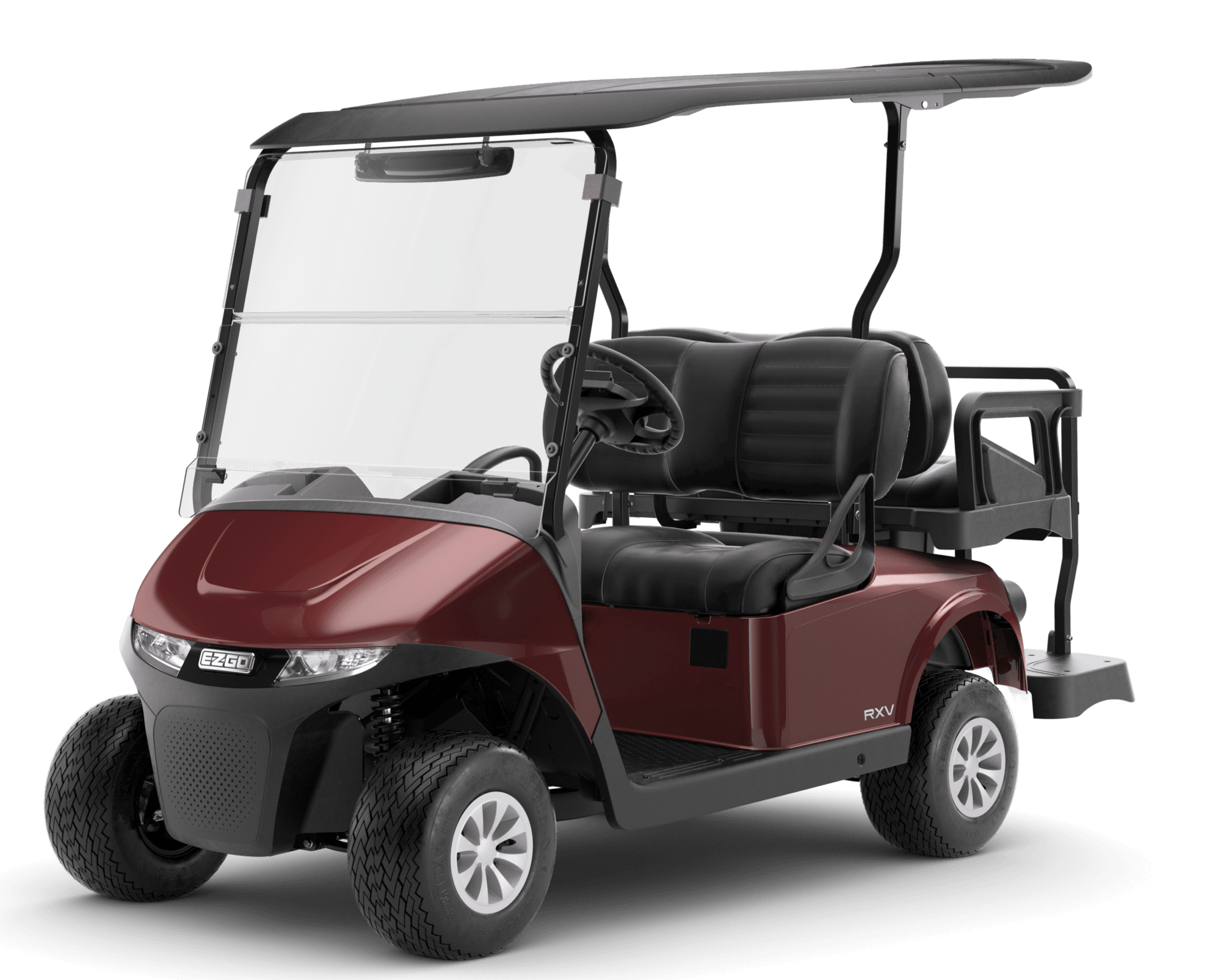

RXV Freedom ELiTE 2+2
For over 70 years, E-Z-GO has been taking the road less traveled with polish, innovation, and efficiency. With modern features including the IntelliBrake® parking brake and a sleek design with maximum storage, the RXV® 4 is built for more.
Standard Features
- 1 x Samsung Lithium Ion twin pack - Maintenance Free Including Battery Management System
- 48v Delta Q DC Lightweight Portable Charger,
- Oyster, Black or Stone Beige Extended Top Assembly
- Oyster, Black or Stone Beige Fixed 4 Rear Seat Kit
- Split Windshield (Clear or Tinted)
- State of Charge Meter
- Scuff Guards,
- Injection Moulded TPO Body finish
- Metallic Hubcaps ( Gold or Silver)
- Automatic E Park Brake
- AC Motor
- Induction Service Motor Brake
- Unique Key switch
- Head Tail & Brake Lights
- Turn Signals
- DC Converter
- Pin Striping
- Horn and Reverse Beeper

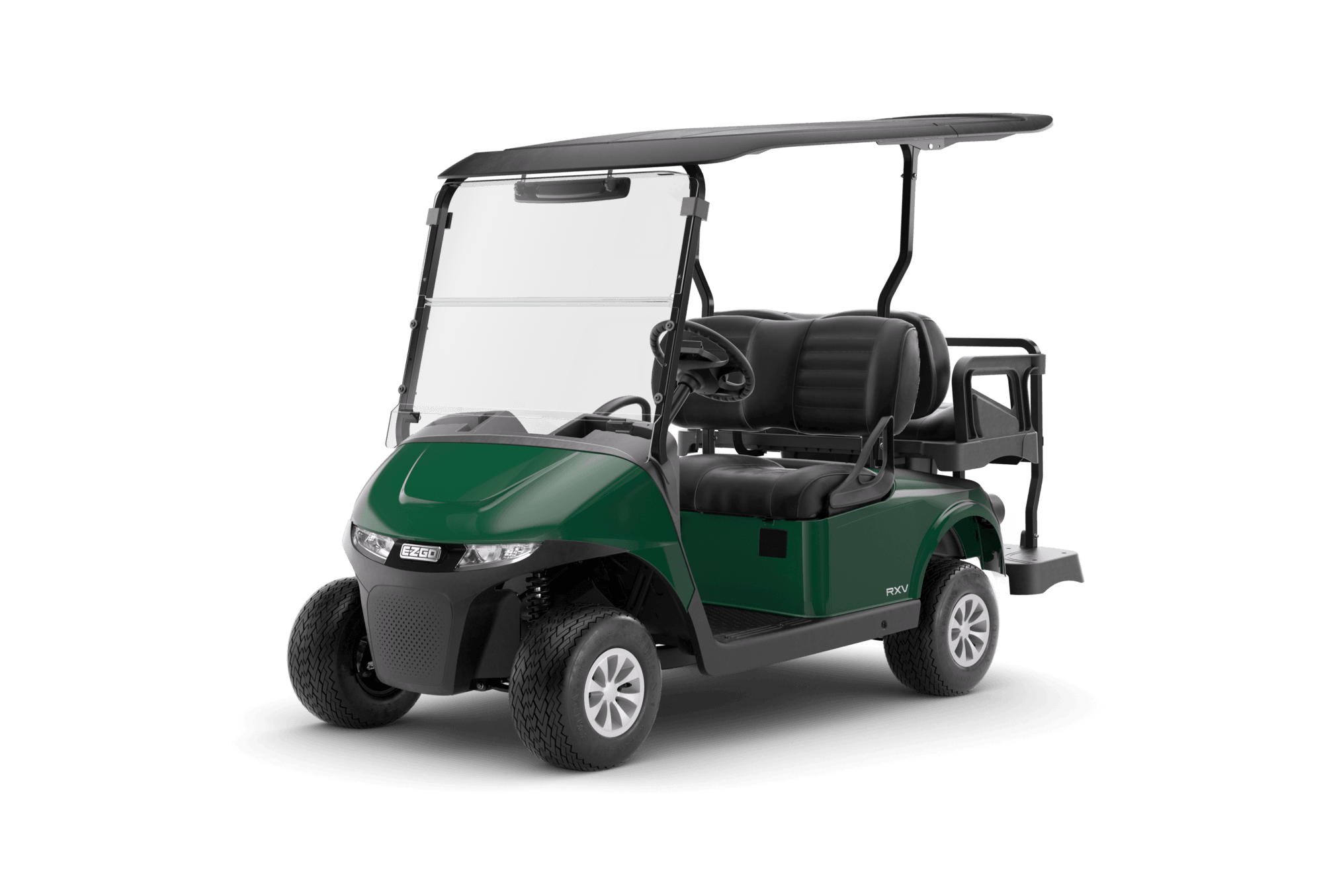

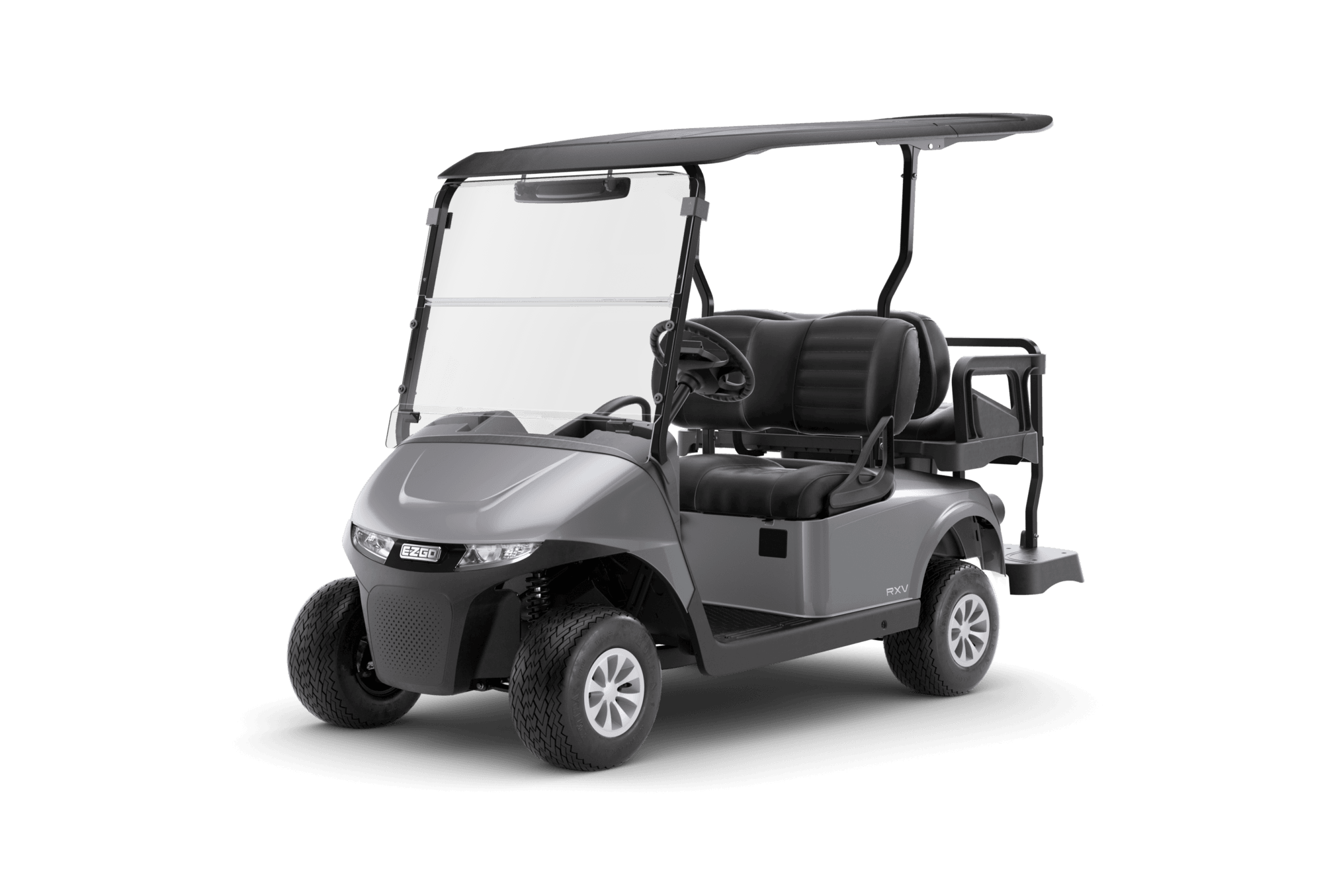

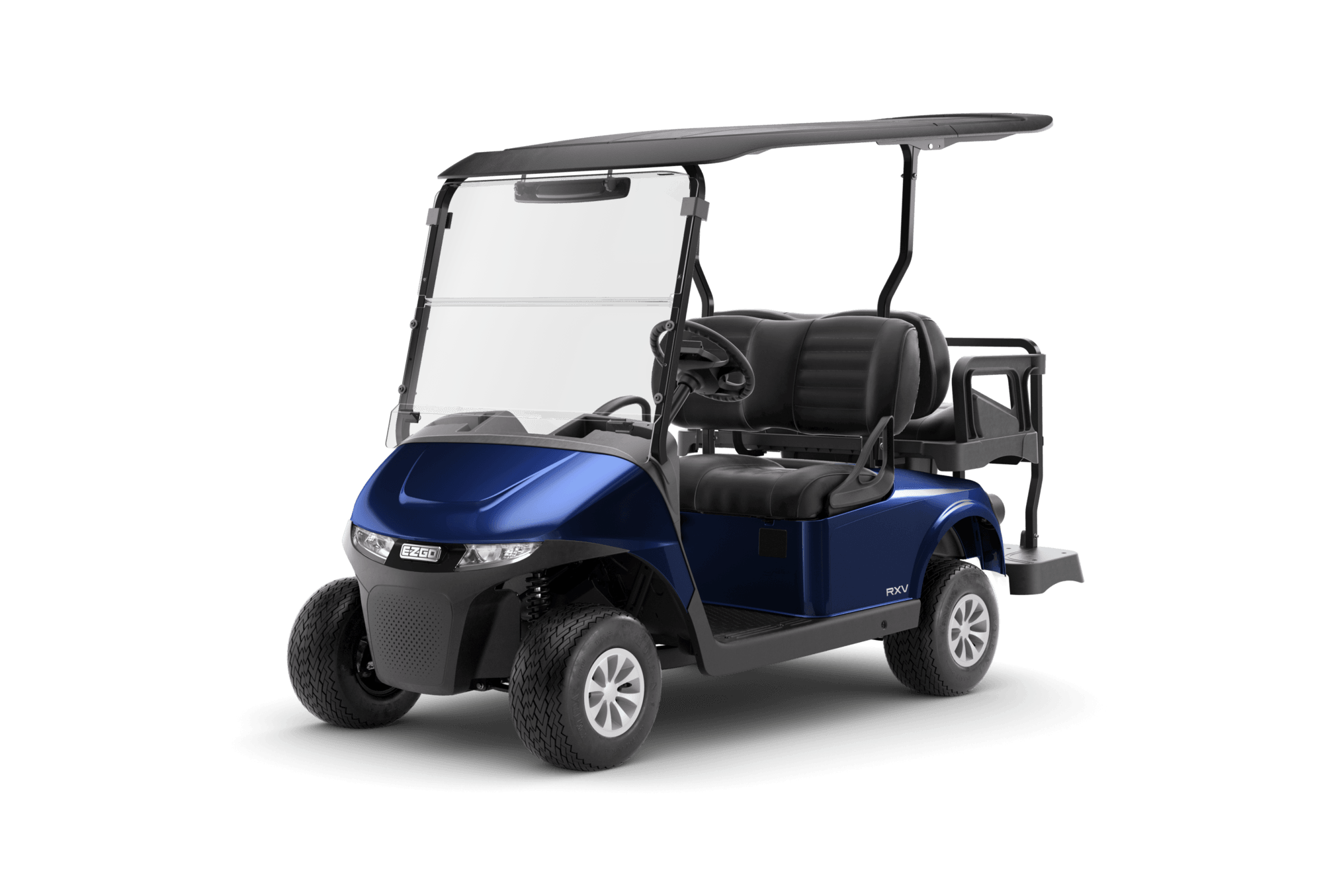

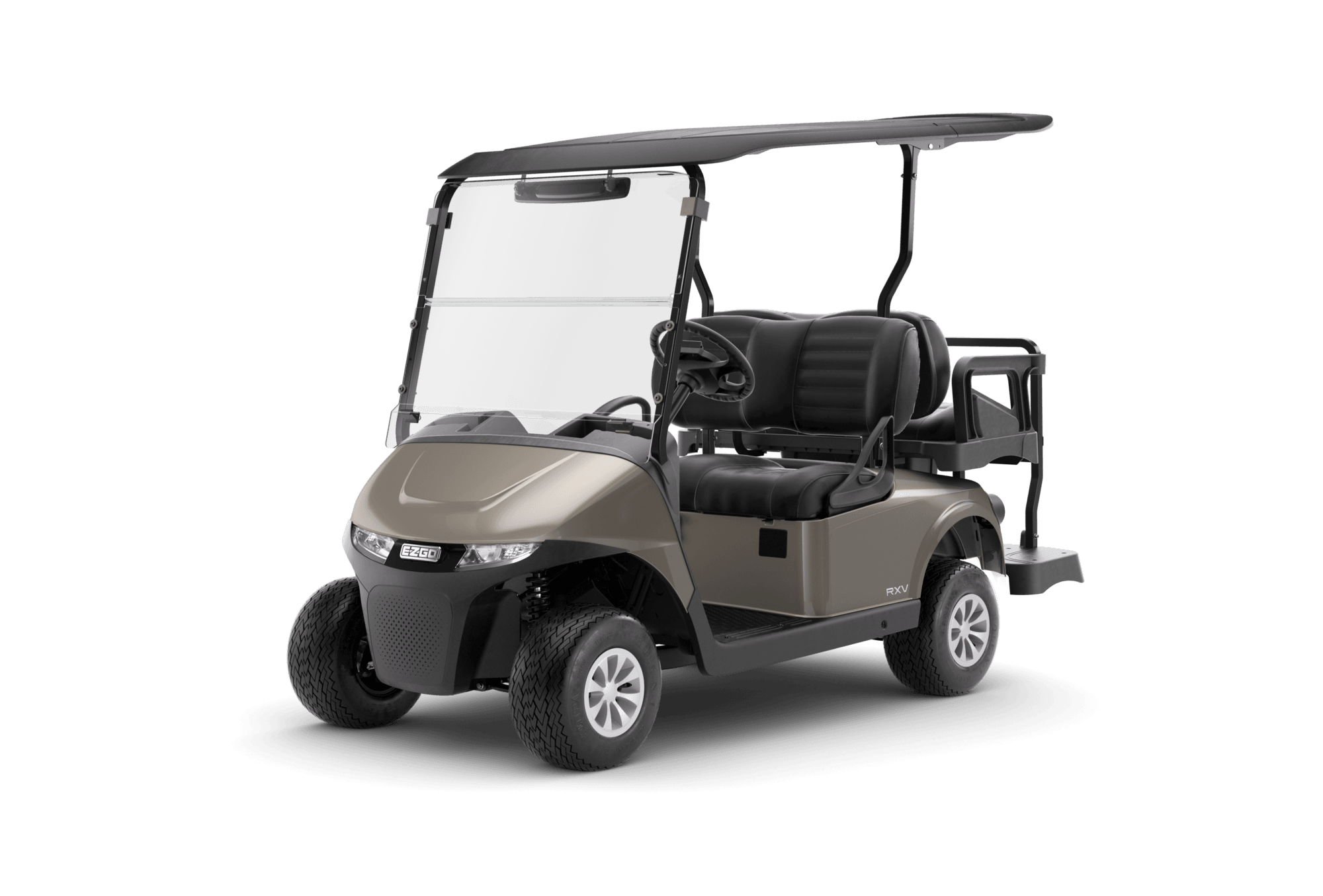

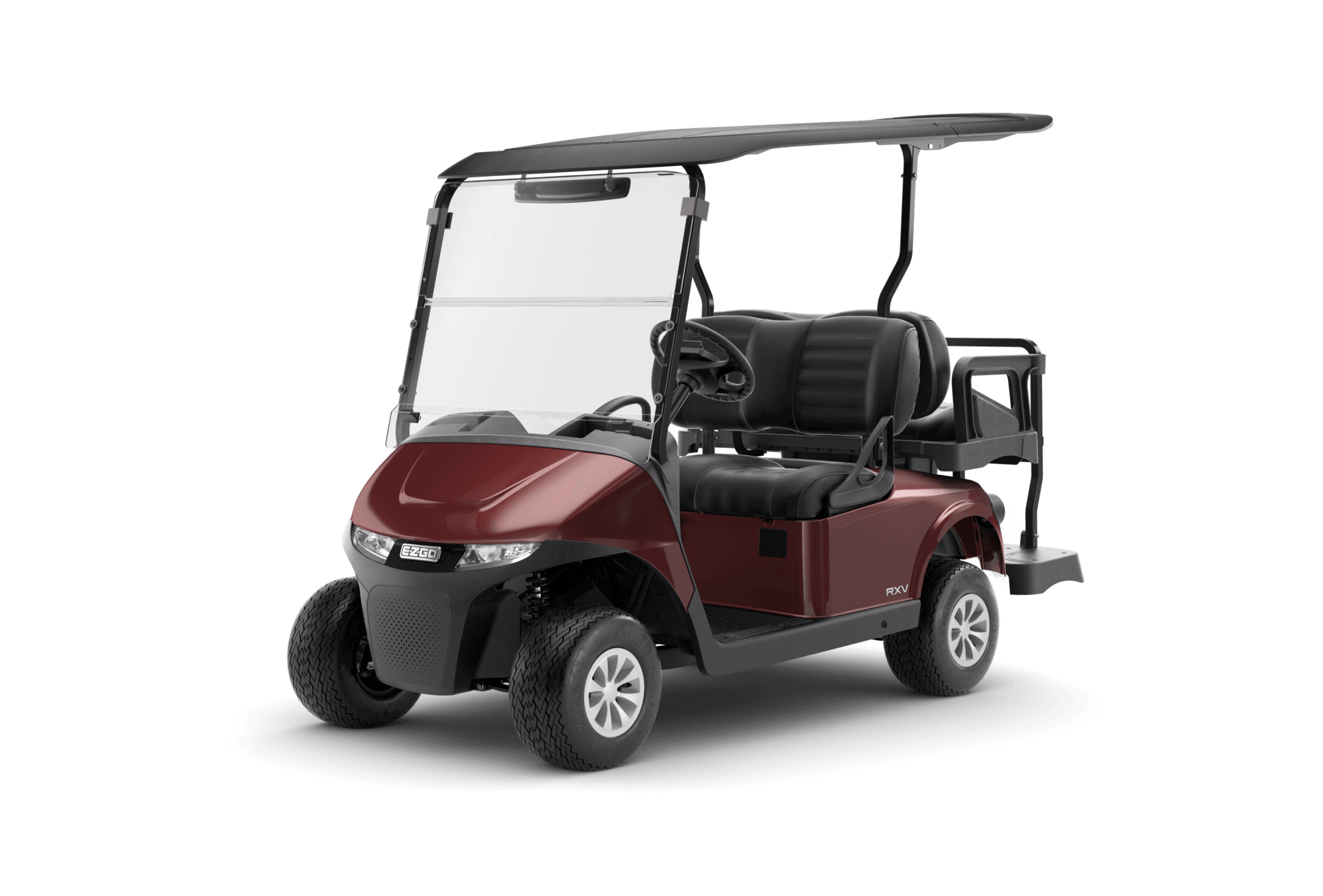

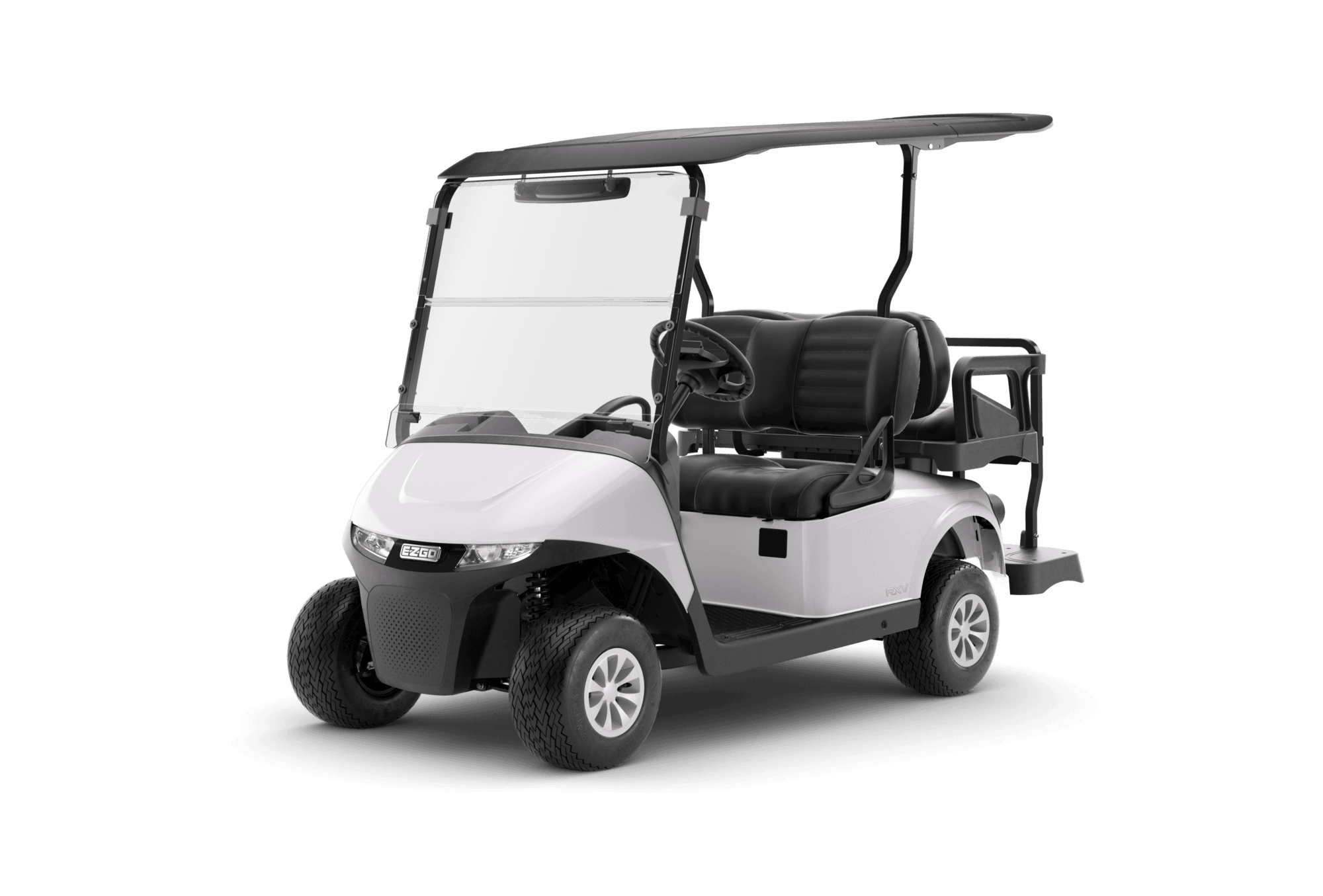

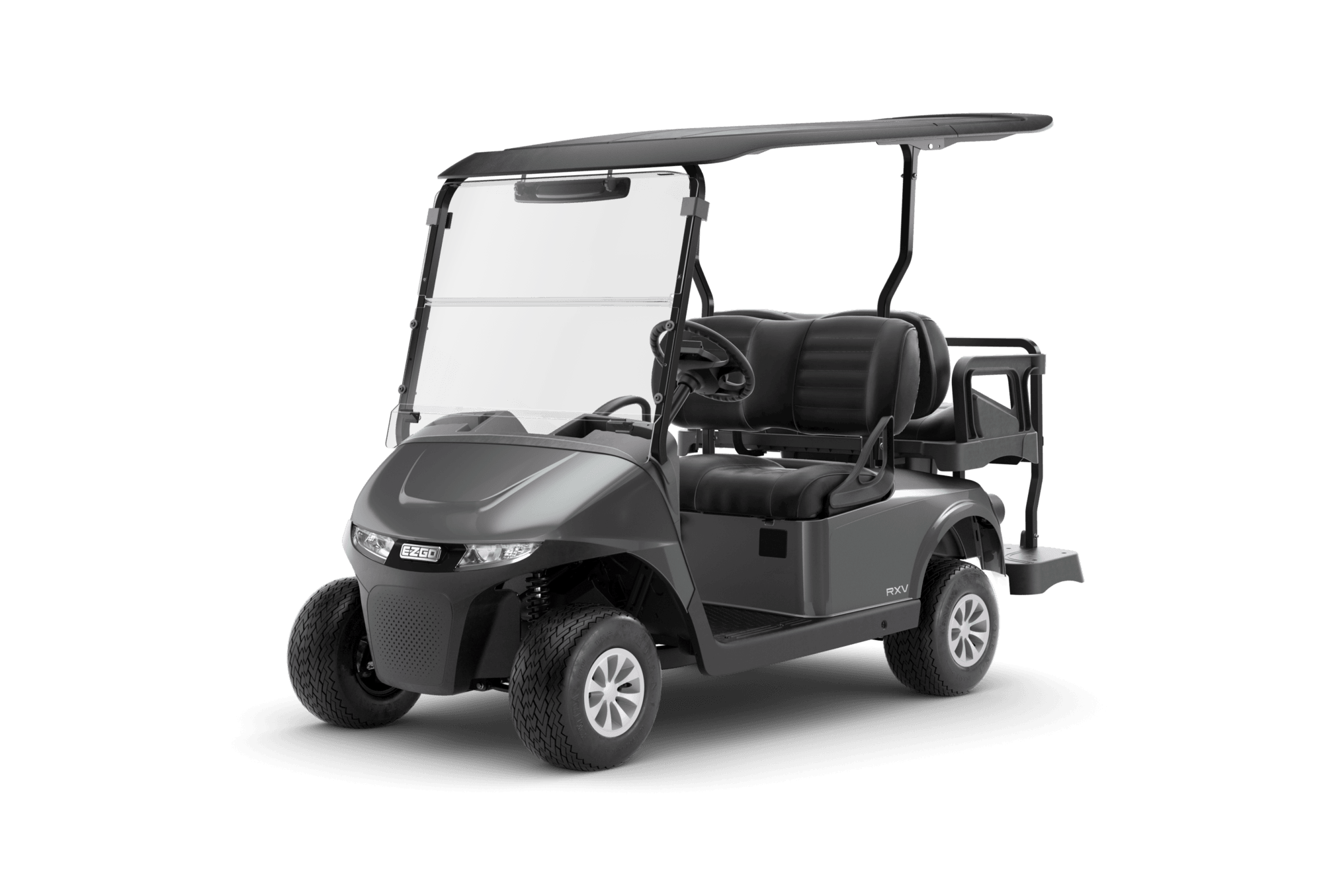

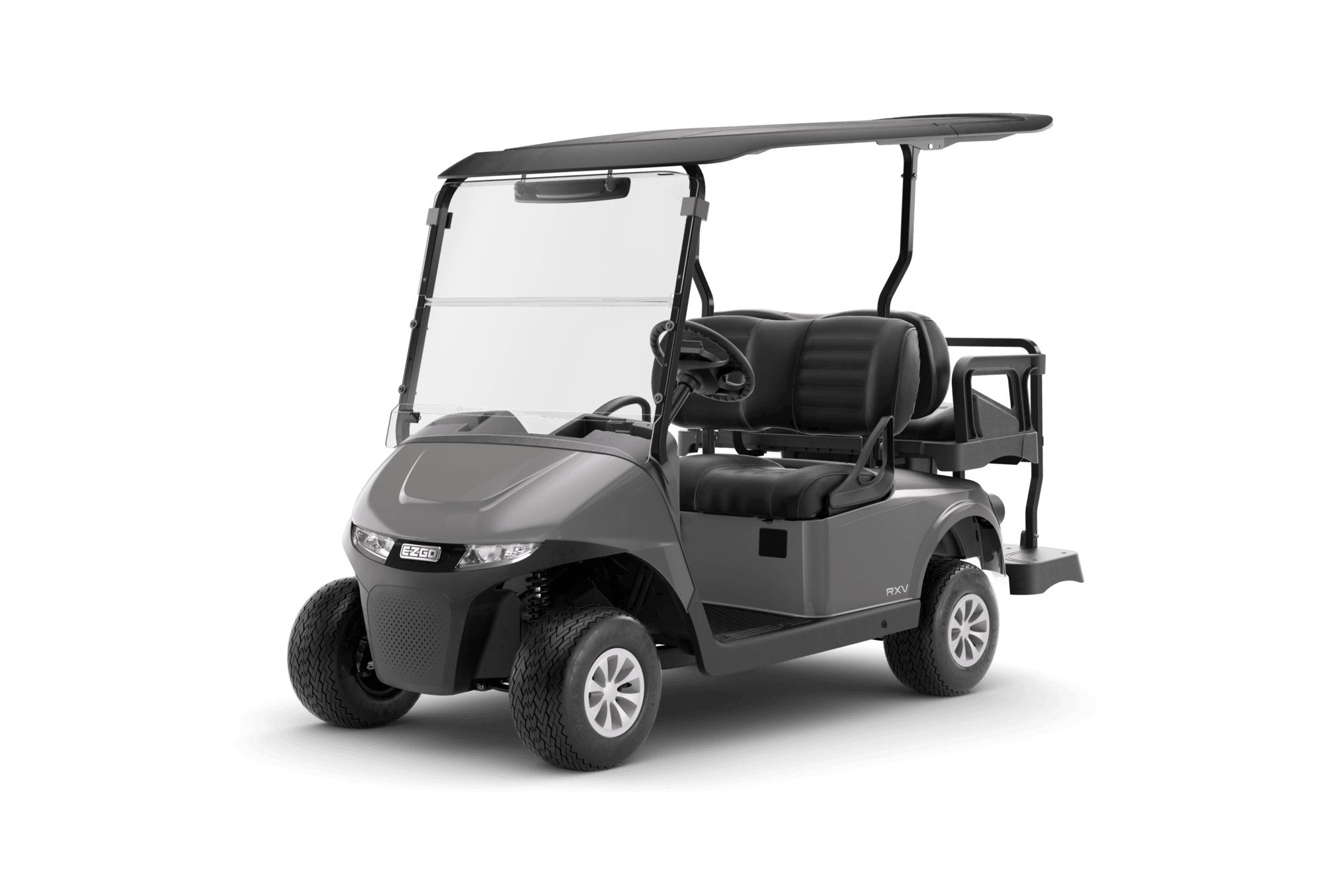

- Choice of Colour
Options/Accessories
- All Weather enclosure ( Clear or Tinted)
- 10", 12" or 14" Mag Wheels
- Lockable Glovebox doors
- Rearview mirror
- Dual USB port
- Custom Seats
- Premium Steering Wheel
- Beverage Trays
- Rubber Floormat
- Passenger Scorecard Holder
- LED Headlights/Day time running lights
- 2 Bag Golf Attachment with Sand Bottle
- Upgrade to Flip Flop Seat Kit
- Front and Rear Fender Flares
- Radio/Stereo
Specifications
Dimensions
Overall Length: 291 cm
Overall Width: 119 cm
Overall Height (no canopy): 119 cm
Overall Height (with canopy): 191 cm
Wheel Base: 168 cm
Front Wheel Track: 88 cm
Rear Wheel Track: 98 cm
Ground Clearance (at differential): 10 cm
Power
Power Source: 56.7 V
Motor Type: AC
Electric System: 48 VDC
Battery (qty/type): ELiTE 2.2, Single 56.7V Max Lithium
Key or Pedal Start: Pedal Start
Battery Charger: Light World Charger, 56.7V, 10 ft DC Cord???????
Speed Controller: 235 Amp AC Controller
Drive Train: Direct-Drive AC Induction Motor
Transaxle: Limited Slip Differential
Gear Selection: Forward-Neutral-Reverse Integrated into Key Switch
Rear Axle Ratio: 16.99:1
Performance
Seating Capacity: 4 Person
Dry Weight (without battery): 405 Kg
Curb Weight: 426 Kg
Vehicle Load Capacity: 360 Kg
Outside Clearance Circle: 5.9 m
Intersecting Aisle Clearance: N/A
Speed (level ground): 12 - 24 kph ± 0.8 kph
Steering & Suspension
Steering: Double-ended Rack and Pinion
Front Suspension: Independent A-arm Coil over Shock
Rear Suspension: Mono Leaf Springs with hydraulic Shocks
Service Brake: Induction Motor
Parking Brake: Automatic Electro Magnetic
Body & Chassis
Frame: Welded steel with powder coat protection
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
)
