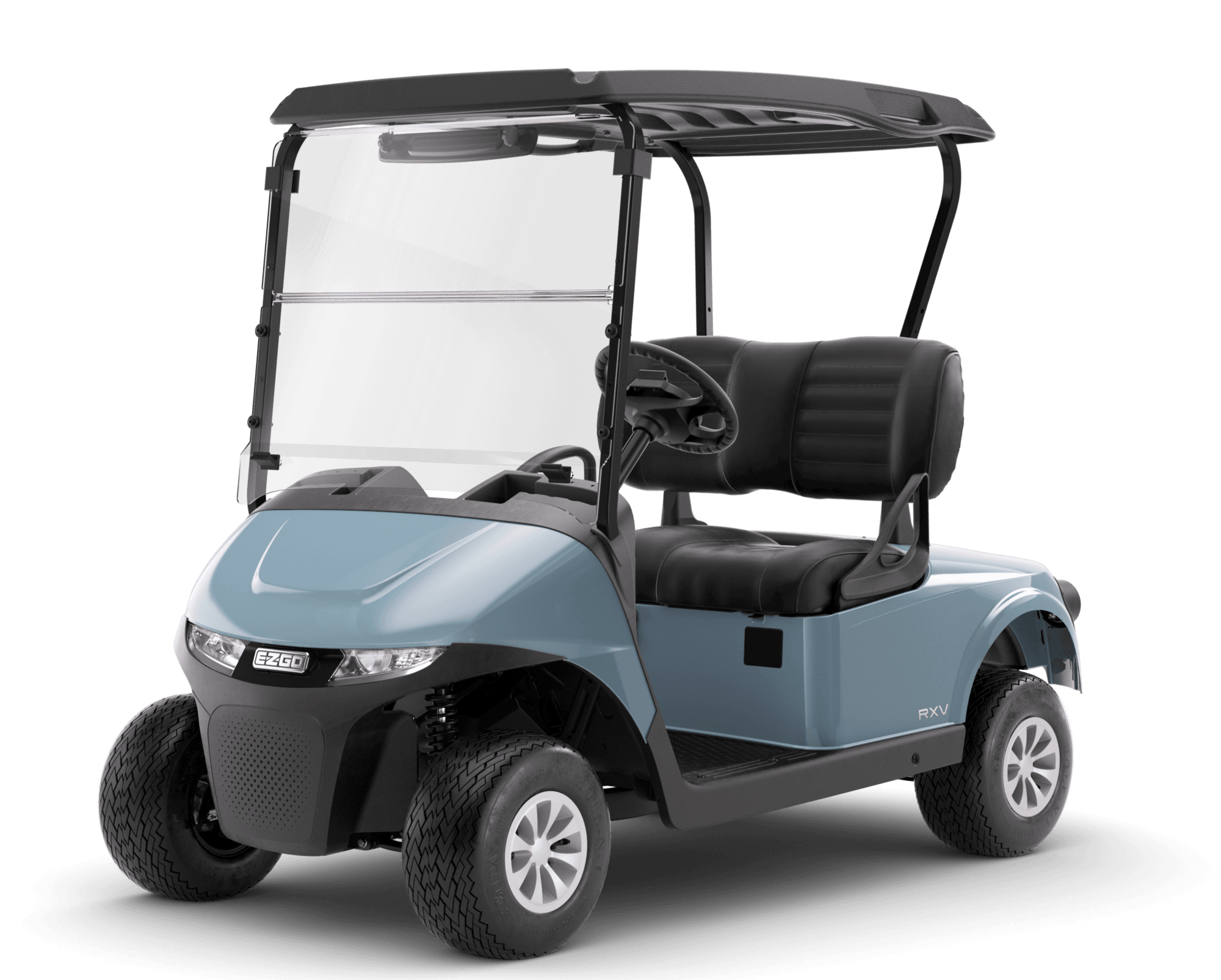

RXV Freedom ELiTE Executive
Ride from driveway to fairway in the vehicle purpose-built to master the game. With a dash made for the course and the IntelliBrake® automatic parking brake for increased safety, E-Z-GO is taking the game to the next level.
Standard Features
- 1 x Samsung Lithium Ion Maintenance Free Battery Pack Including Battery Management System
- 48v Delta Q DC Lightweight Portable Charger
- Oyster, Black or Stone Beige Top Assembly & Seating
- 2 x Sand Bottles
- Split Windshield (Clear or Tinted)
- State of Charge Meter
- Scuff Guards,
- Injection Moulded TPO Body finish
- Automatic E Park Brake
- AC Motor
- Induction Service Motor Brake
- Unique Key switch
- Head Tail & Brake Lights
- Turn Signals
- DC Converter
- Pin Striping
- Front and Rear Fender Flares
- Choice of 10" or 12" Mag Wheels
- Lockable Glove Boxes ( Carbon Fibre, Brushed Alluminum or Dark Woodgrain) & Dashboard Inset
- Horn and Reverse Beeper
- Storage Net
- Rubber Floot Mat
- Passenger Scorecard Holder
- Choice of Colour
Options/Accessories
- All Weather enclosure ( Clear or Tinted)
- 14" Mag Wheel Upgrade
- Club & ball washer
- Drinks Cooler Esky
- Rearview mirror
- Dual USB port
- Custom Seats
- Premium Steering Wheel
- Beverage Trays
- Rainbag Cover
- LED Headlights/Day time running lights
- Economy 4 Seat Kit
- Radio/Stereo
Specifications
Dimensions
Overall Length: 240 cm
Overall Width: 119 cm
Overall Height (no canopy): 118 cm
Overall Height (with canopy): 177 cm
Wheel Base: 168 cm
Front Wheel Track: 88 cm
Rear Wheel Track: 98 cm
Ground Clearance (at differential): 10 cm
Power
Power Source: 56.7 V
Electric System: 48 VDC
Battery (qty/type): ELiTE 2.2, Single 56.7V Max Lithium
Key or Pedal Start: Pedal Start
Battery Charger: Light World Charger, 56.7V, 10 ft. DC Cord???????
Speed Controller: 235 Amp AC Controller
Drive Train: Direct-Drive AC Induction Motor
Transaxle: Limited Slip Differential
Gear Selection: Forward-Neutral-Reverse Integrated into Key Switch
Rear Axle Ratio: 16.99:1
Performance
Seating Capacity: 2 Person
Dry Weight (without battery): 279 Kg
Curb Weight: 300 Kg
Vehicle Load Capacity: 227 Kg
Outside Clearance Circle: 5.8 m
Intersecting Aisle Clearance: N/A
Speed (level ground): 28 - 30 kph ± 0.8 kph
Steering & Suspension
Steering: Double-ended Rack and Pinion
Front Suspension: Independent A-arm Coil over Shock
Rear Suspension: Mono Leaf Springs with hydraulic Shocks
Service Brake: Induction Motor
Parking Brake: Automatic Electro Magnetic
Tyres: 18 x 8.50-8 (4-ply rated)
Body & Chassis
Frame: Welded steel with powder coat protection
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
)
