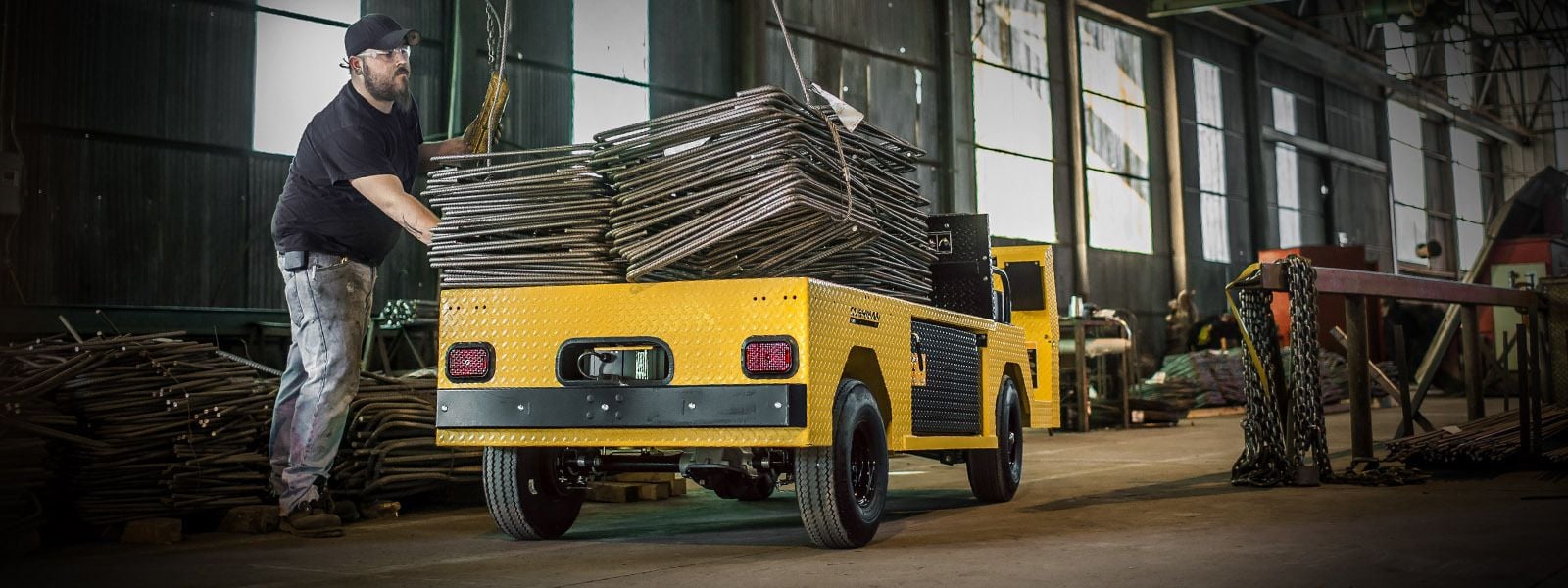

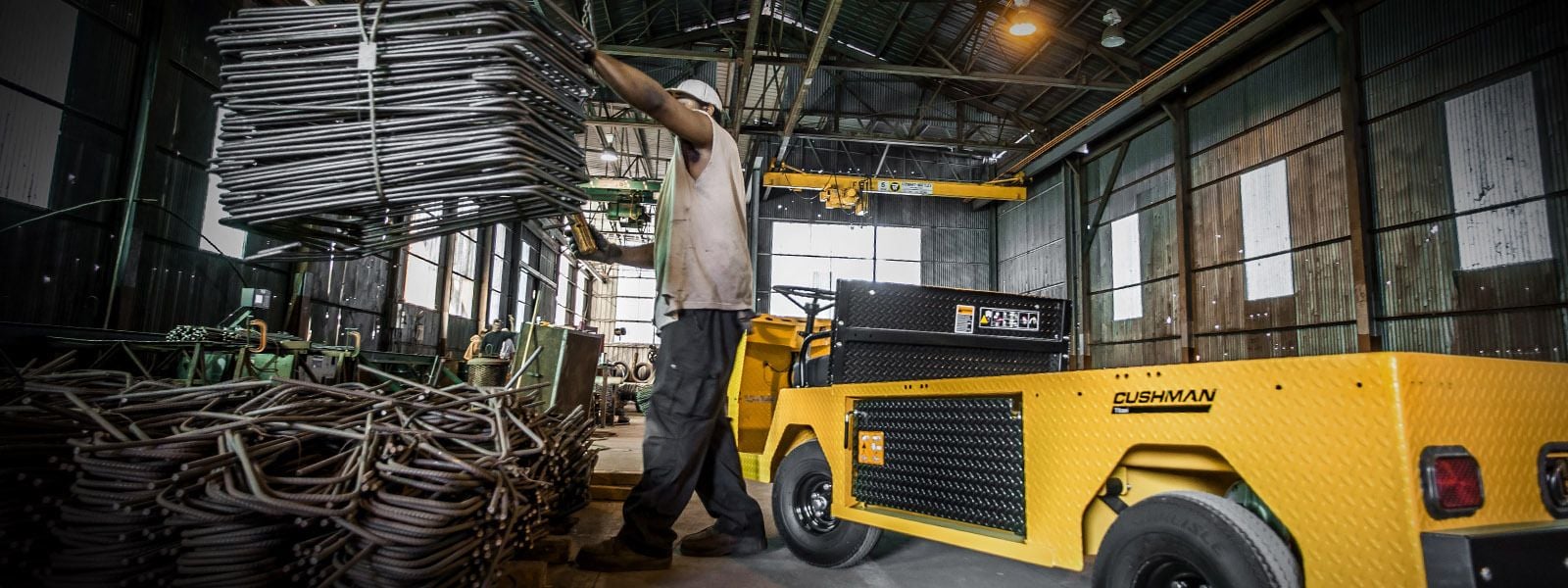

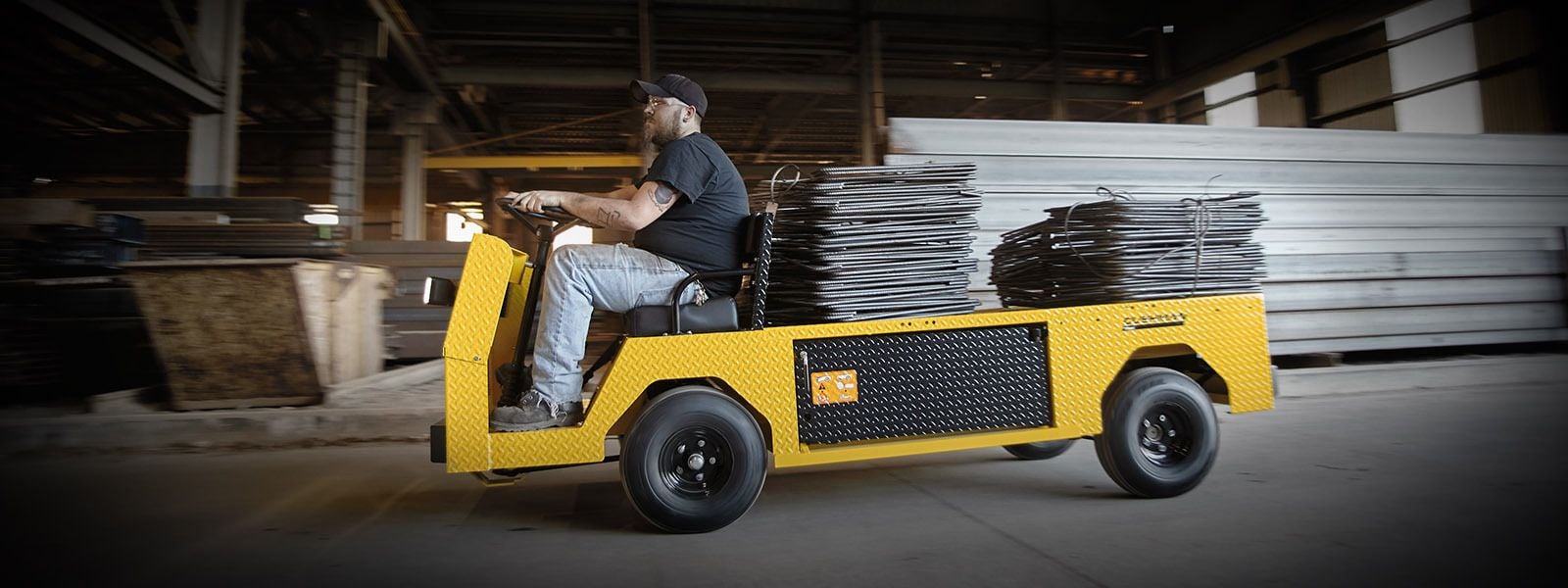

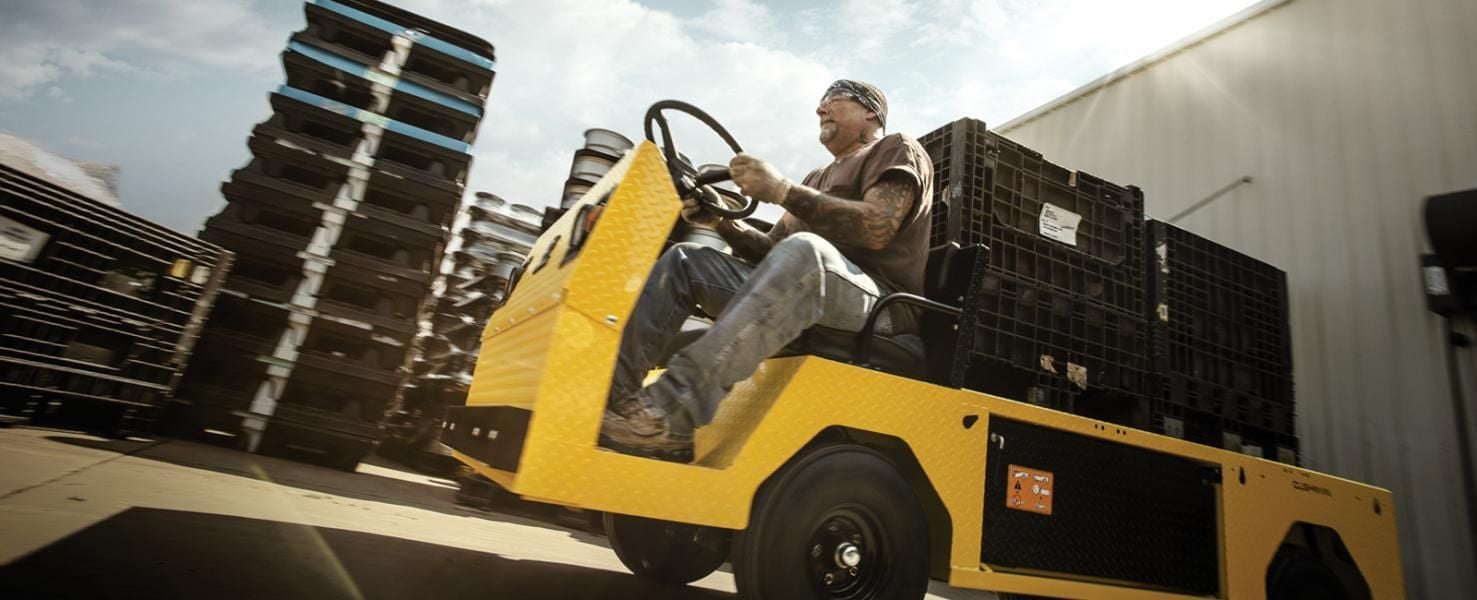

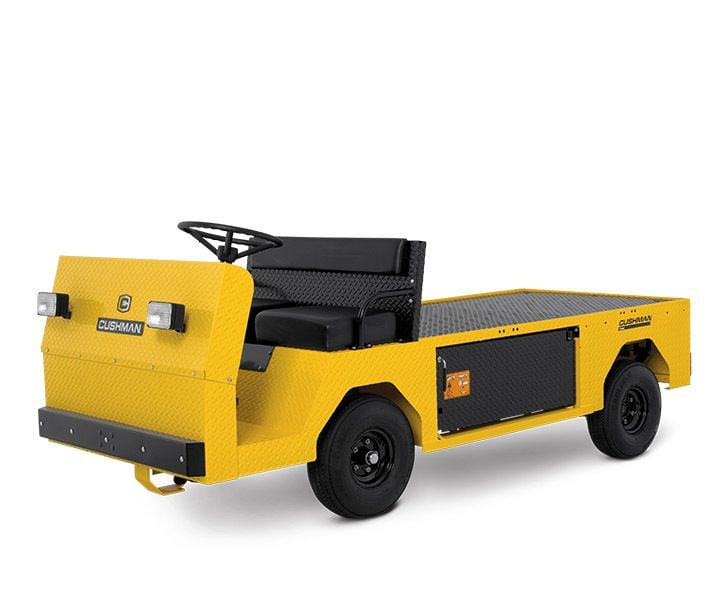

Titan HD - 48v Electric

Built Tough the Titan HD vehicle is perfect for carrying and towing heavy loads. Short and Long Term Hire can be arranged.

Specifications

Dimensions

Overall Length: 290 cm
Overall Width: 113 cm
Overall Height : 119 cm
Wheel Base: 170 cm
Cargo Box Capacity: 1000 Kg
Cargo Box Material: Heavy Duty Ply Wood with Plastic Non Slip Laminate


Power

Powertrain: 48 Volts DC Shunt Wound
Horsepower: 15.2 hp ( 11.3 kW) @1600 rpm
Electric System: 48 Volt
Battery (qty/type): Eight, 6 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 48v On-board, Delta Q 120V AC, UL & CSA
Speed Controller: Solid State 400 Amp Precision Dr. Sys.
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse

Performance

Seating Capacity: 2 Person
Dry Weight (without battery): 556 Kg
Curb Weight: 780 Kg
Vehicle Load Capacity: 1134 Kg
Bed Load Capacity: 998 Kg
Towing Capacity: 2087 Kg
Outside Clearance Circle: 6.7 m
Speed (level ground):  21 kph ± 0.8 kph
