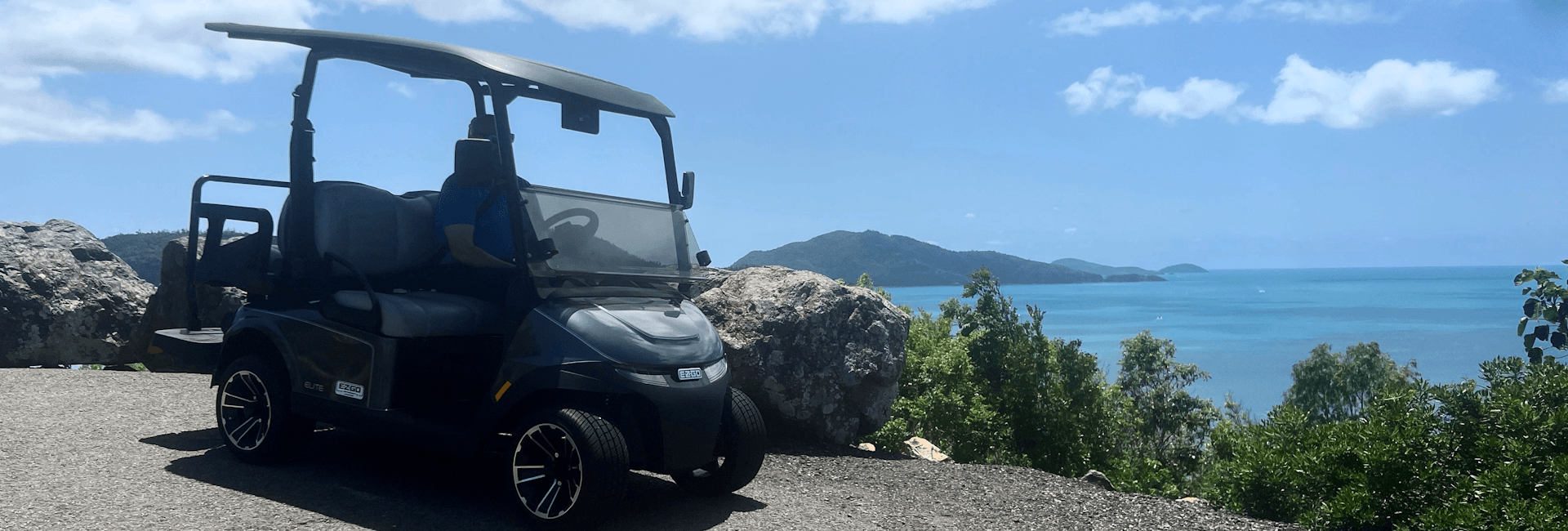

E-Z-GO RXV HI Edition
The RXV HI Cruiser is a great vehicle to utilise on Hamilton. Powerful, Reliable and the best Hill climber on the market.
Utilising a custom fitted aluminium Tip Over protection system with Child Seat Anchor Point and Retractable Seat Belts all round, the RXV provides the highest level of safety, durability, reliability and performance.
The RXV HI Edition features an innovative AC Drive with advanced full-time regenerative braking system, which is put to good use on the island.
On one charge, the RXV will get you up the hill quicker and many more times than any other vehicle brand on the market.
Standard Features
- Samsung Lihtium Ion 4.2 Twin Pack Maintenance free battery with Battery management system
- AC Motor
- On-Board Charger
- Induction Motor Service brake with regenerative braking plus Front Hydraulic Disk Brakes

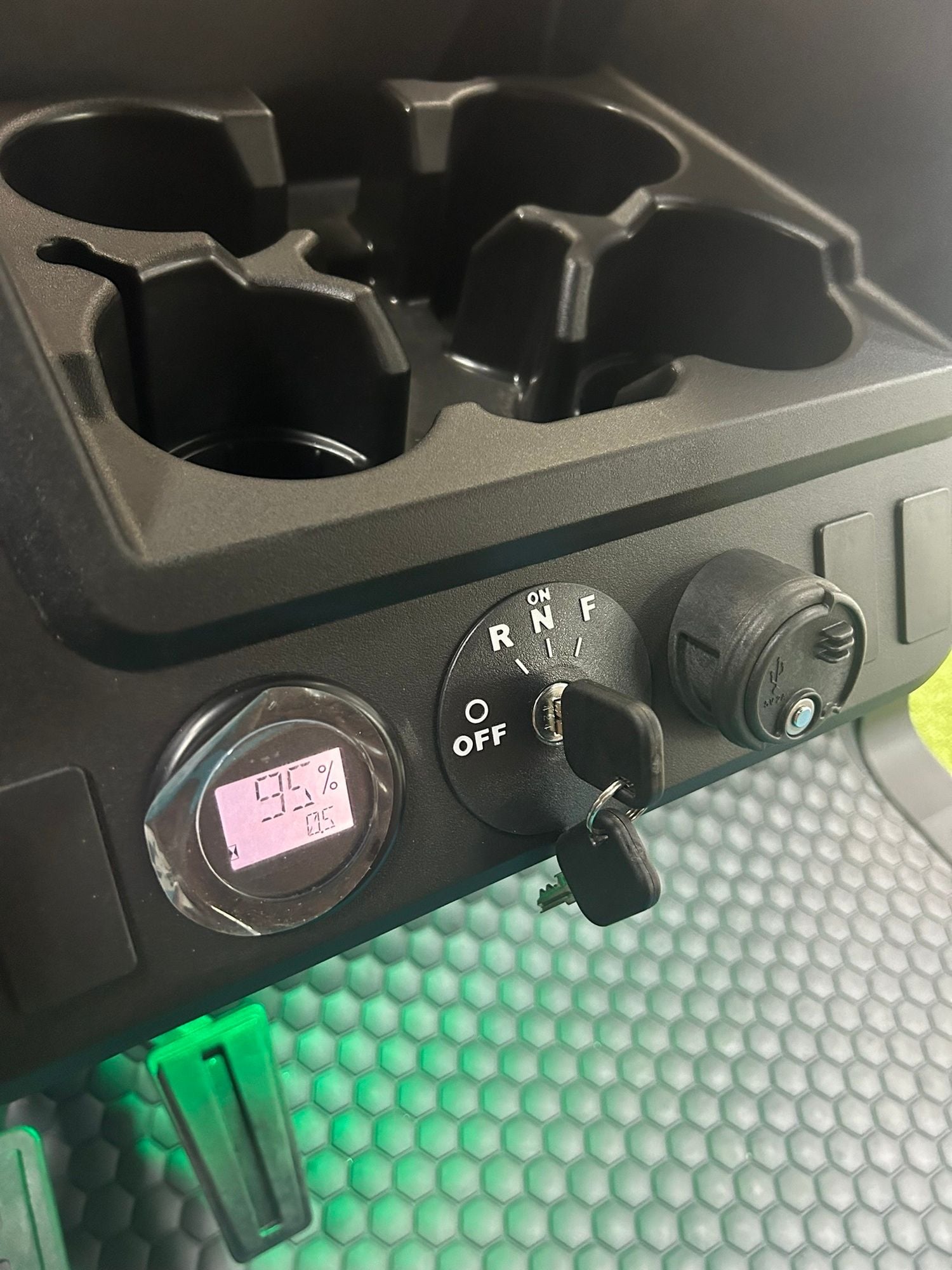

- Digital State of Charge Meter, Speedometer and Hour Meter

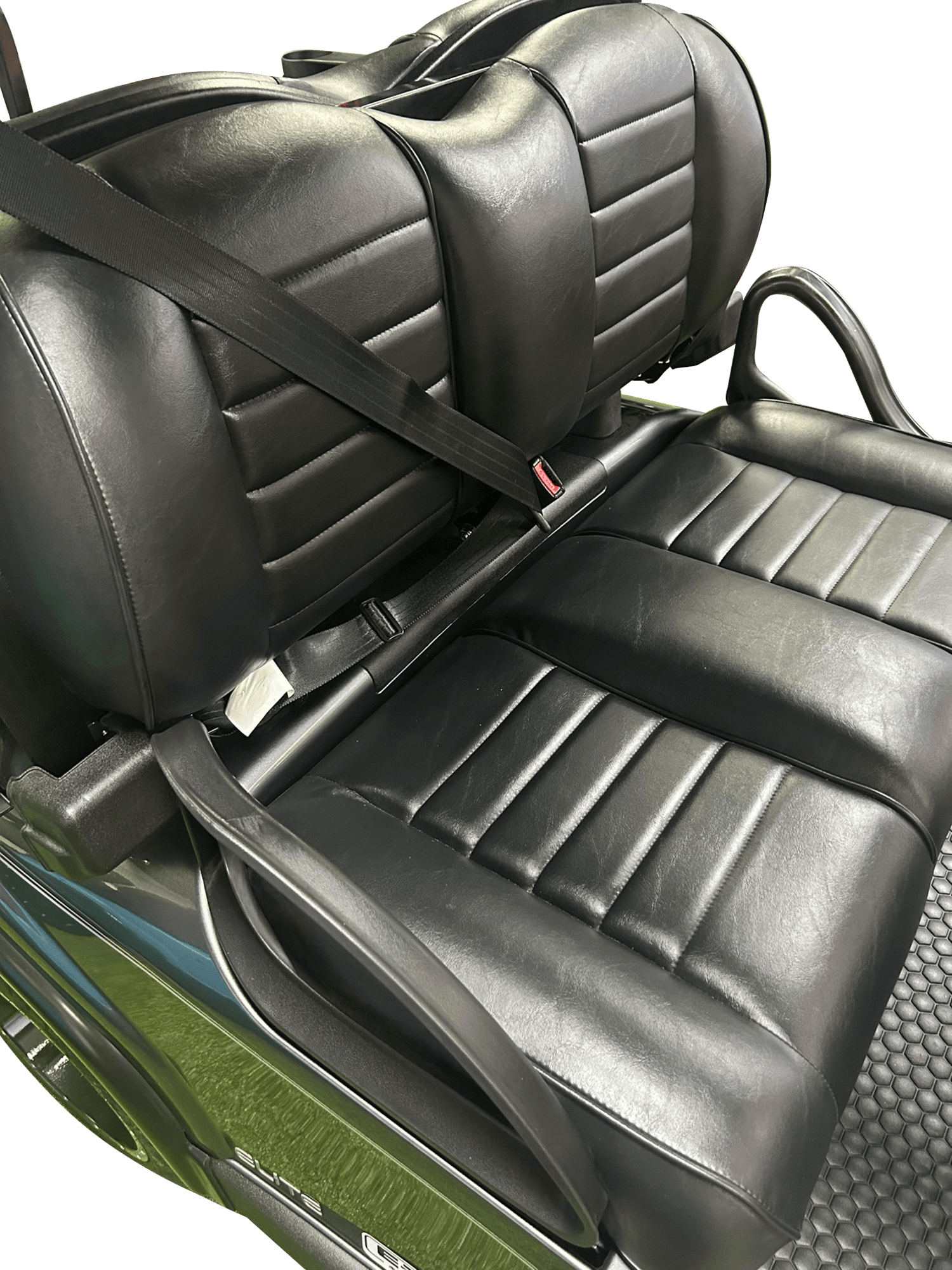

- Premium Seating (Choice of colour - Black, Grey, Beige)
- RFS Pro Plastic Rear Facing ip op Seat with Storage box (Choice of Colour - Black, Grey, Beige)
- New Modular Sun Canopy (Choice of Colour - Black, Beige, White)

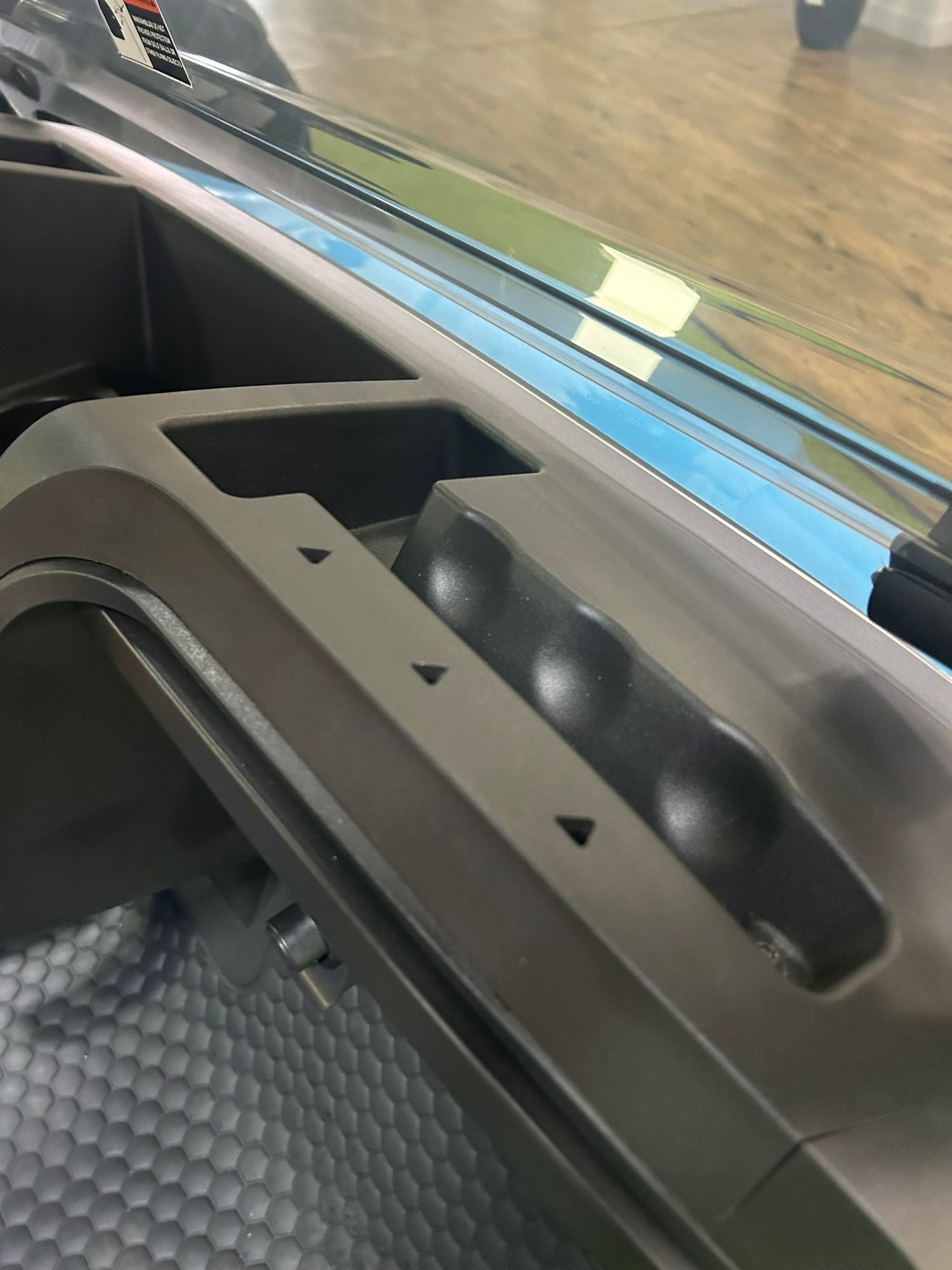

- Powder Coated Alloy Tip Over Protection Cage
- Front and Rear retractable Seat belts
- Child Restraint anchor Point

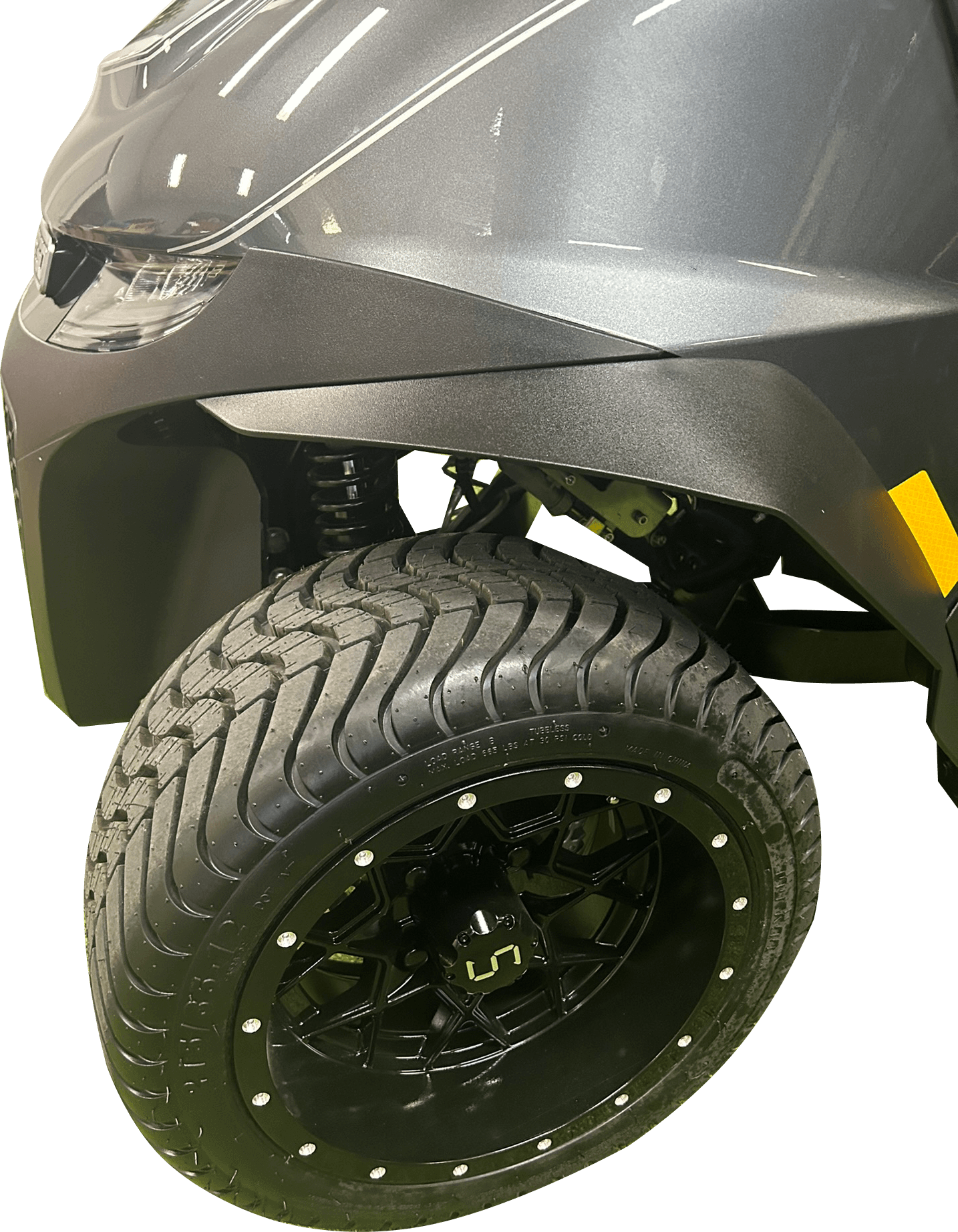

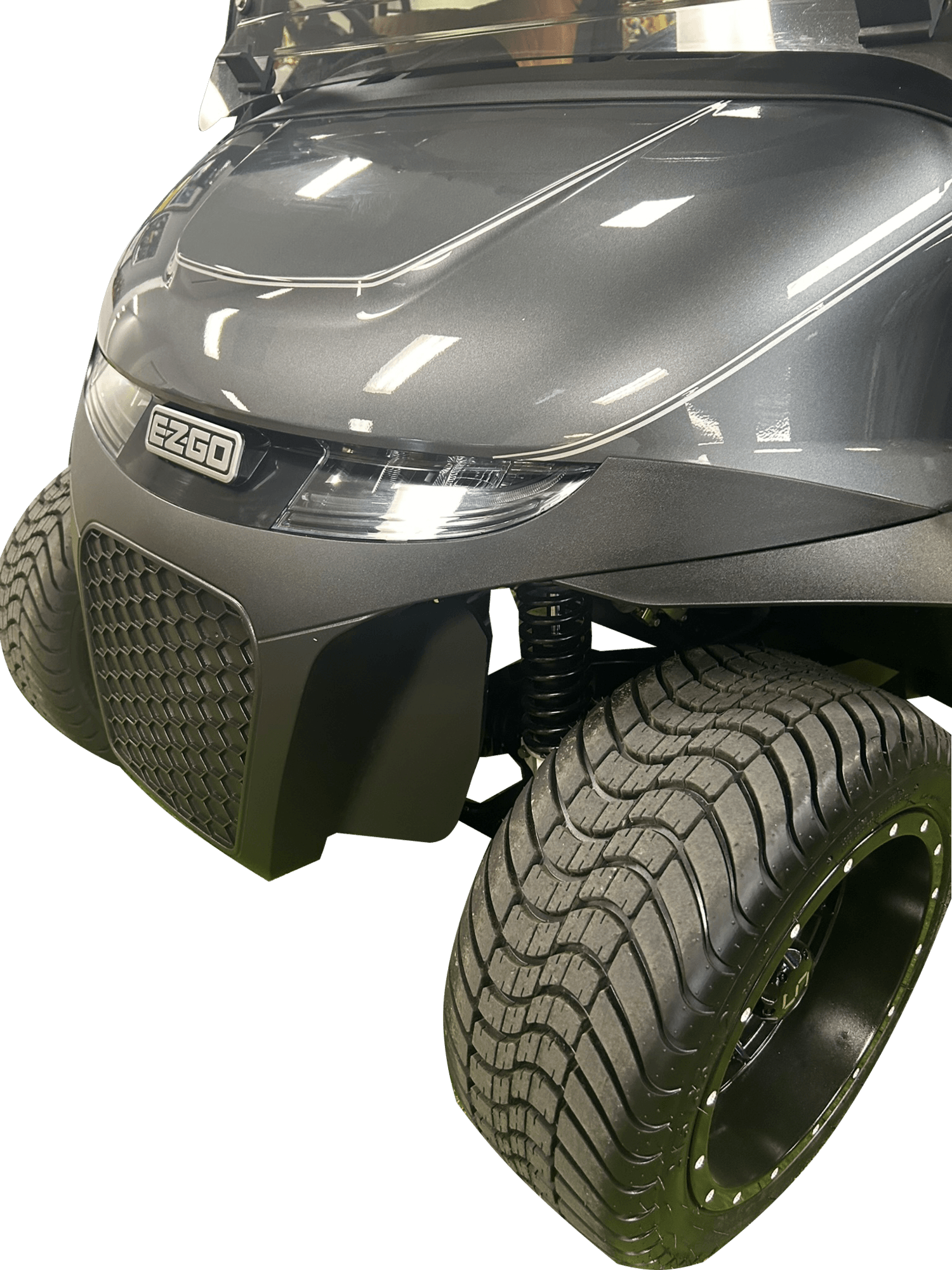

- 12 Inch Rogue Alloy Mag Wheel
- Split Windshield

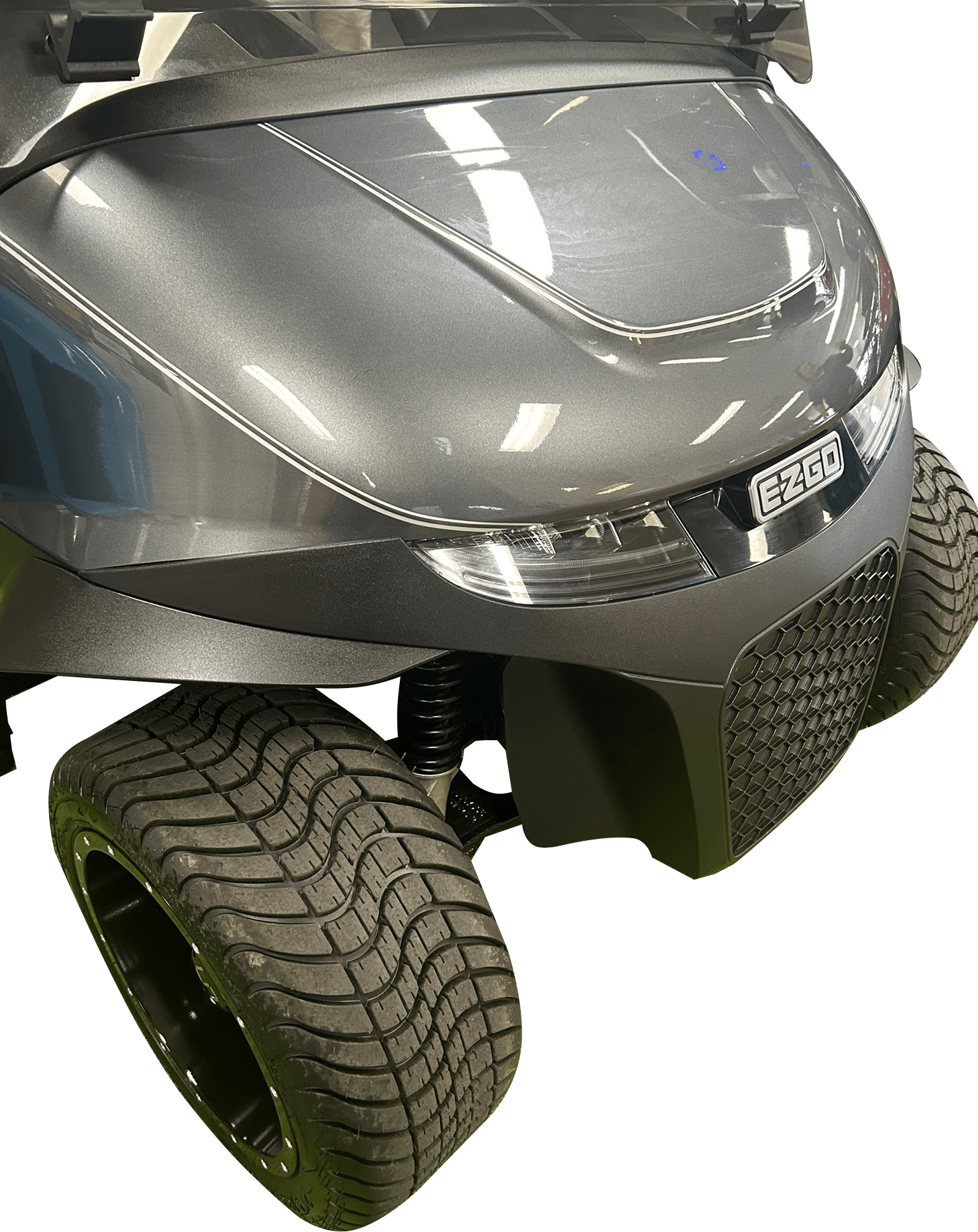

- LED Headlights
- Turn Signals and Brakelights
- Number Plate Light
- Automatic Electronic E -Parking Brake
- Rear View Mirror
- Horn
- Console with Cup, Ball and Tee Holders
- Multiple Dash Storage Areas
- Unique Keyed Ignition
Options/Accessories
- Premium Steering Wheel

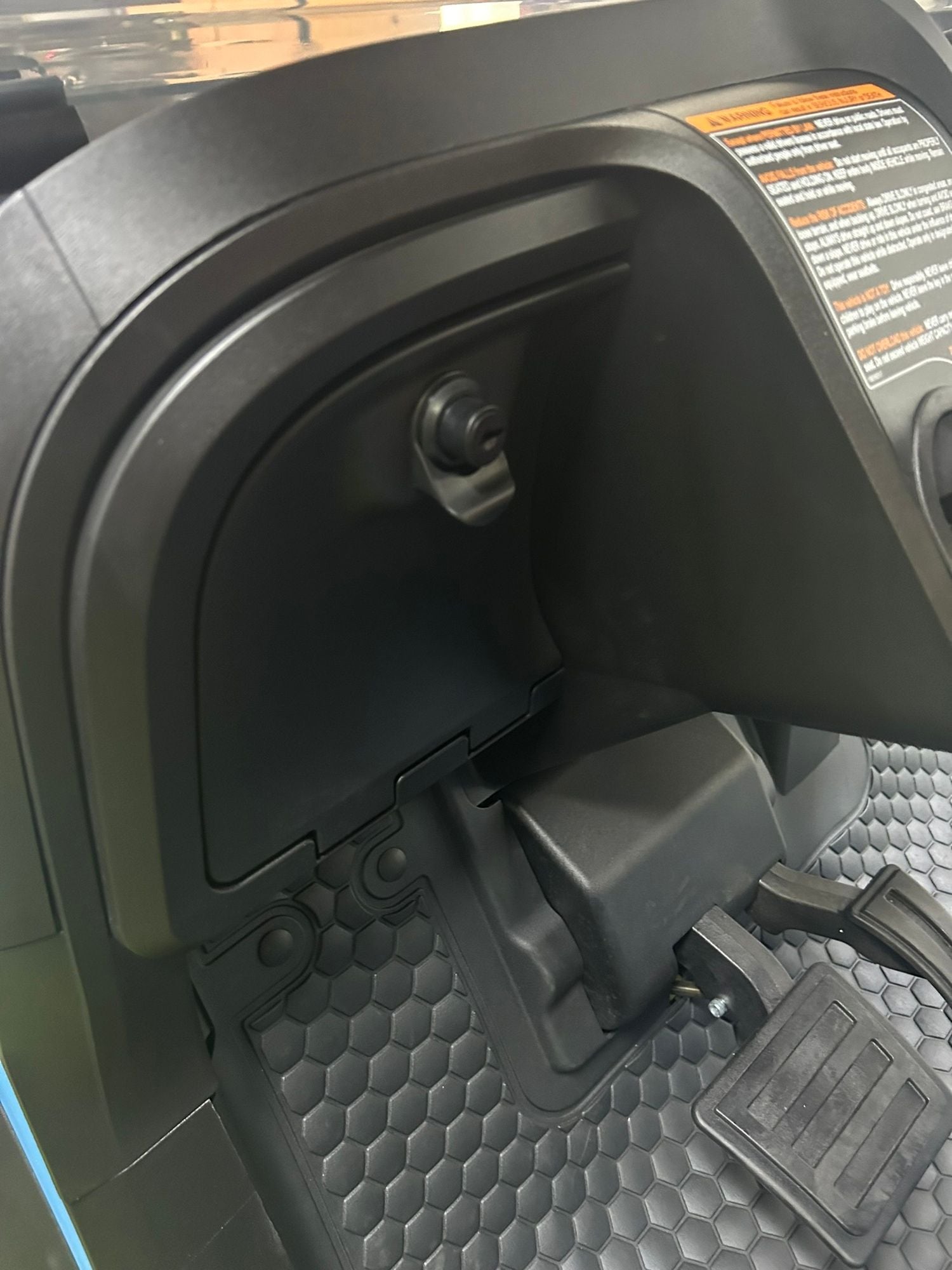

- Black Lockable Glove Boxes

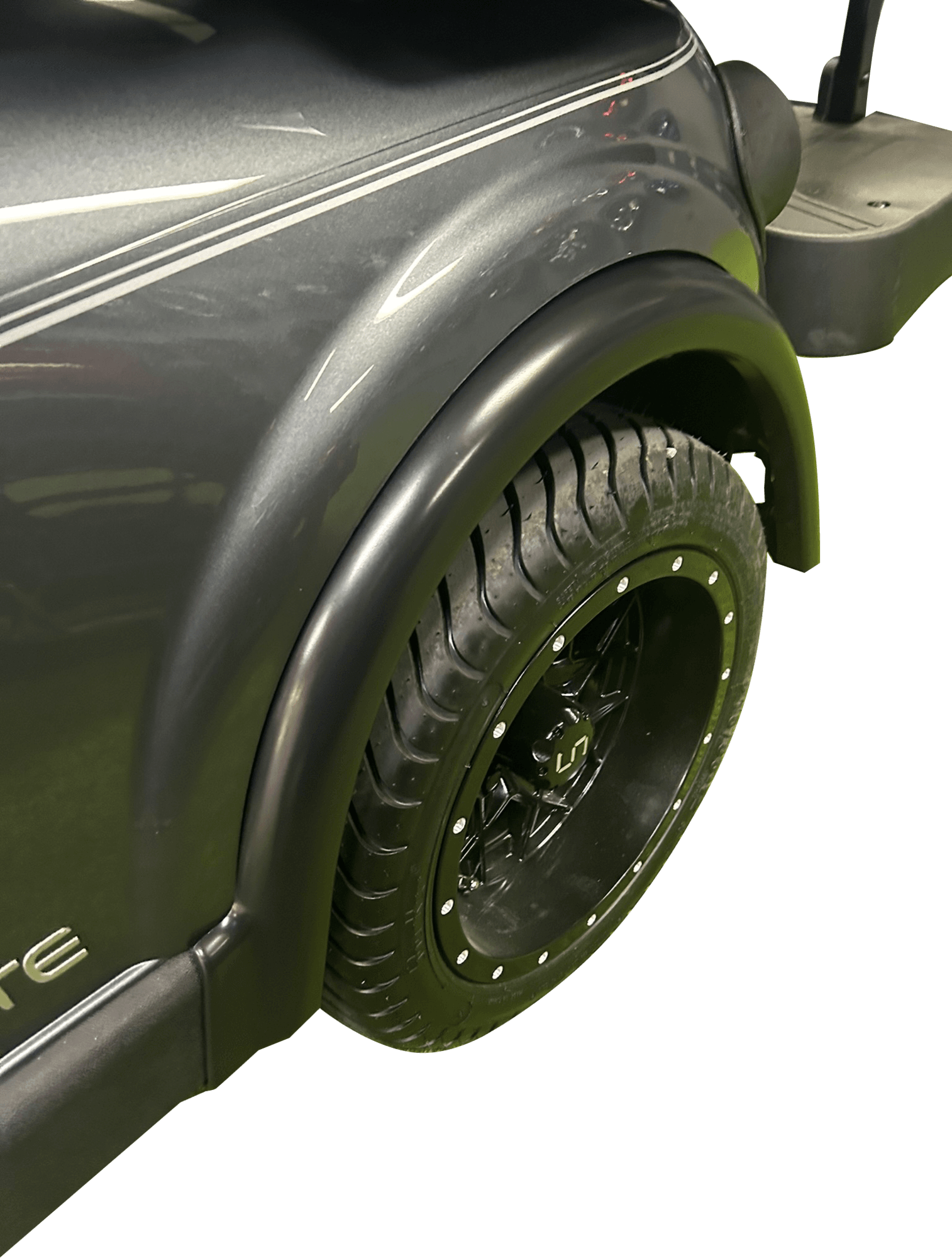

- Black Front and rear fender Flares
- Black Sports Bumper
- Custom Mag Wheels
- Side Mirrors with Built in Indicators
- All Weather Enclosures
- Under Seat Tray
- Custom Seats
- Custom Colours
Specifications
Dimensions
Overall Length: 268 cm
Overall Width: 119 cm
Overall Height (no canopy): 119 cm
Overall Height (with canopy): 191 cm
Wheel Base: 168 cm
Front Wheel Track: 88 cm
Rear Wheel Track: 98 cm
Ground Clearance (at differential): 10 cm
Power
Power Source: 48 Volts DC
Motor Type: 48 Volt AC
Electric System: 48 Volt

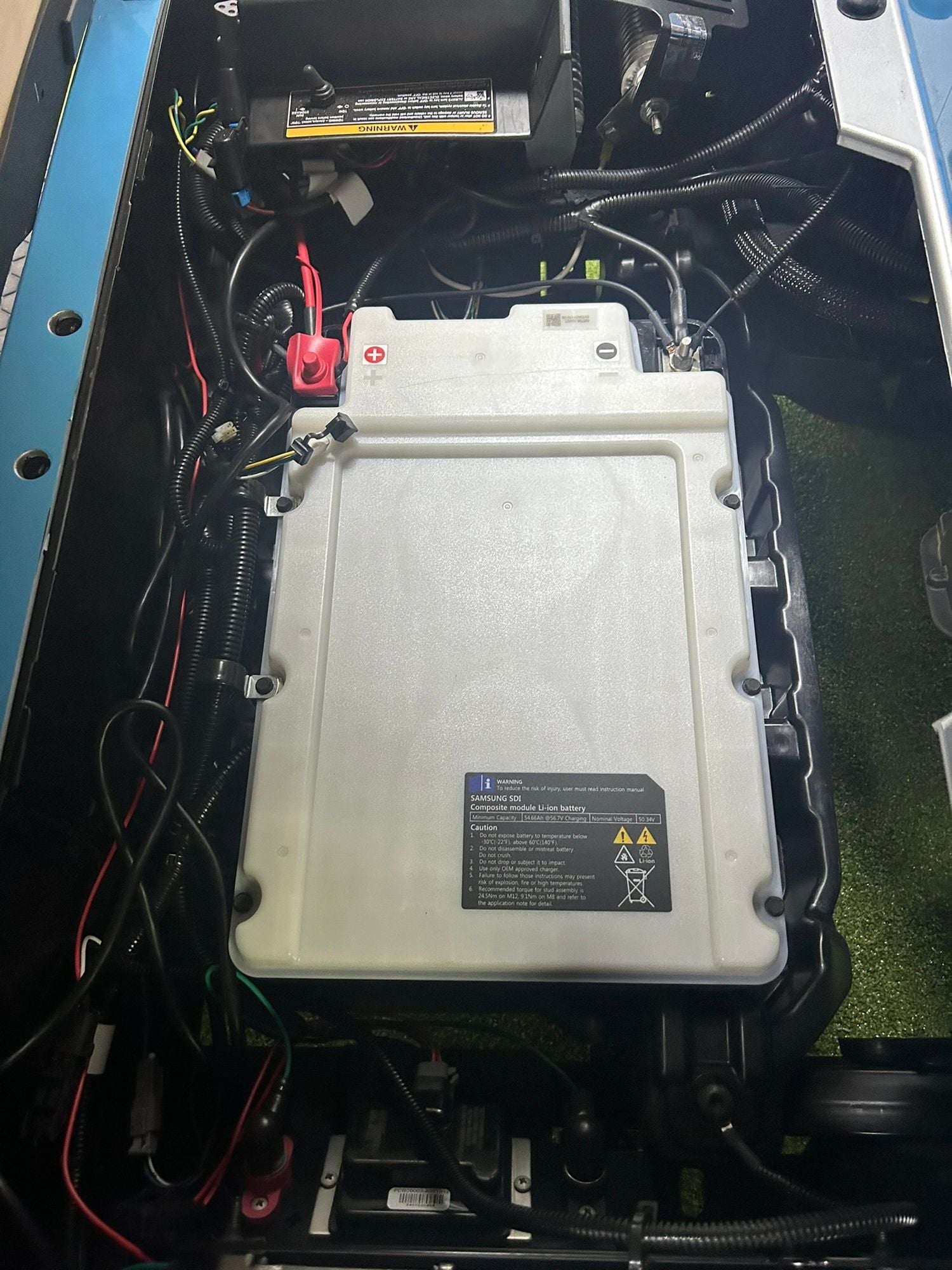

Battery (qty/type): 1x Samsung Lithium Ion 90 amp Maintenance Free Battery Pack Including Battery Management System
Key or Pedal Start: Pedal Start
Battery Charger: Lithium World Charger 48VDC
Speed Controller: 235 Amp AC Controller
Drive Train: Motor Shaft Direct Drive
Transaxle: Limited Slip Differential
Gear Selection: Forward-Neutral-Reverse Integrated into Key Switch
Rear Axle Ratio: 16.99:1
Performance
Seating Capacity: 4 Person
Dry Weight (without battery): 344 Kg
Curb Weight: 390 Kg
Vehicle Load Capacity: 360 Kg
Outside Clearance Circle: 5.8 m
Intersecting Aisle Clearance: N/A
Speed (level ground): 13 - 24 kph ± 0.8 kph
Steering & Suspension
Steering: Double-ended Rack and Pinion
Front Suspension: Independent A-arm Coil over Shock
Rear Suspension: Mono Leaf Springs with hydraulic Shocks
Service Brake: Front Hydraulic Disk Brakes
Parking Brake: Automatic Electro Magnetic
Tyres: 18 x 8.5 - 8 (4 Ply Rated)
Body & Chassis
Frame: Welded steel with powder coat protection
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
Standard Colour: Almond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal, Orange, Patriot Blue, Platinum, White
Standard Seat Colour: Stone Beige
Optional Seat Colours: Black or Oyster
