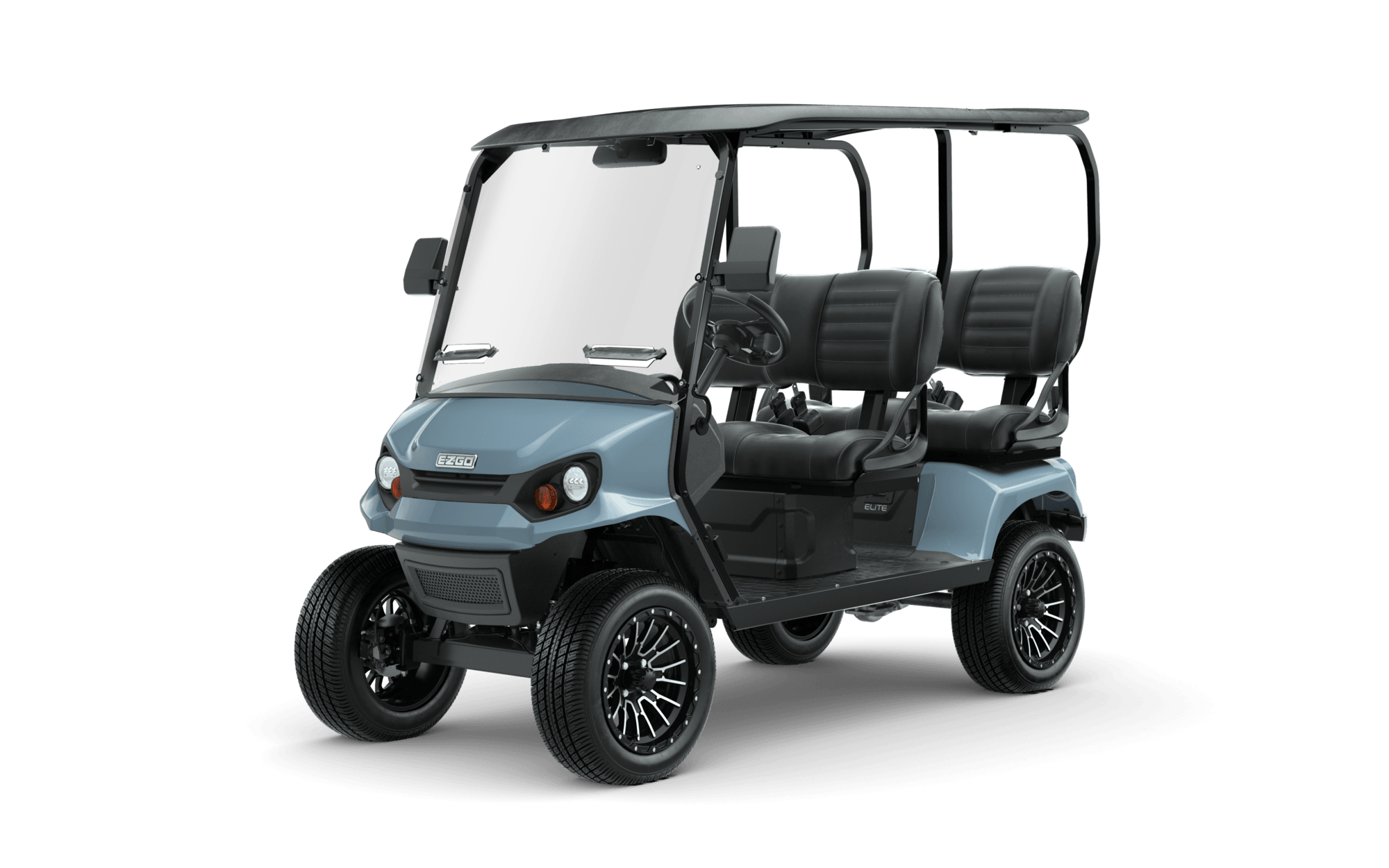

E-Z-GO LIBERTY LSV HI Edition

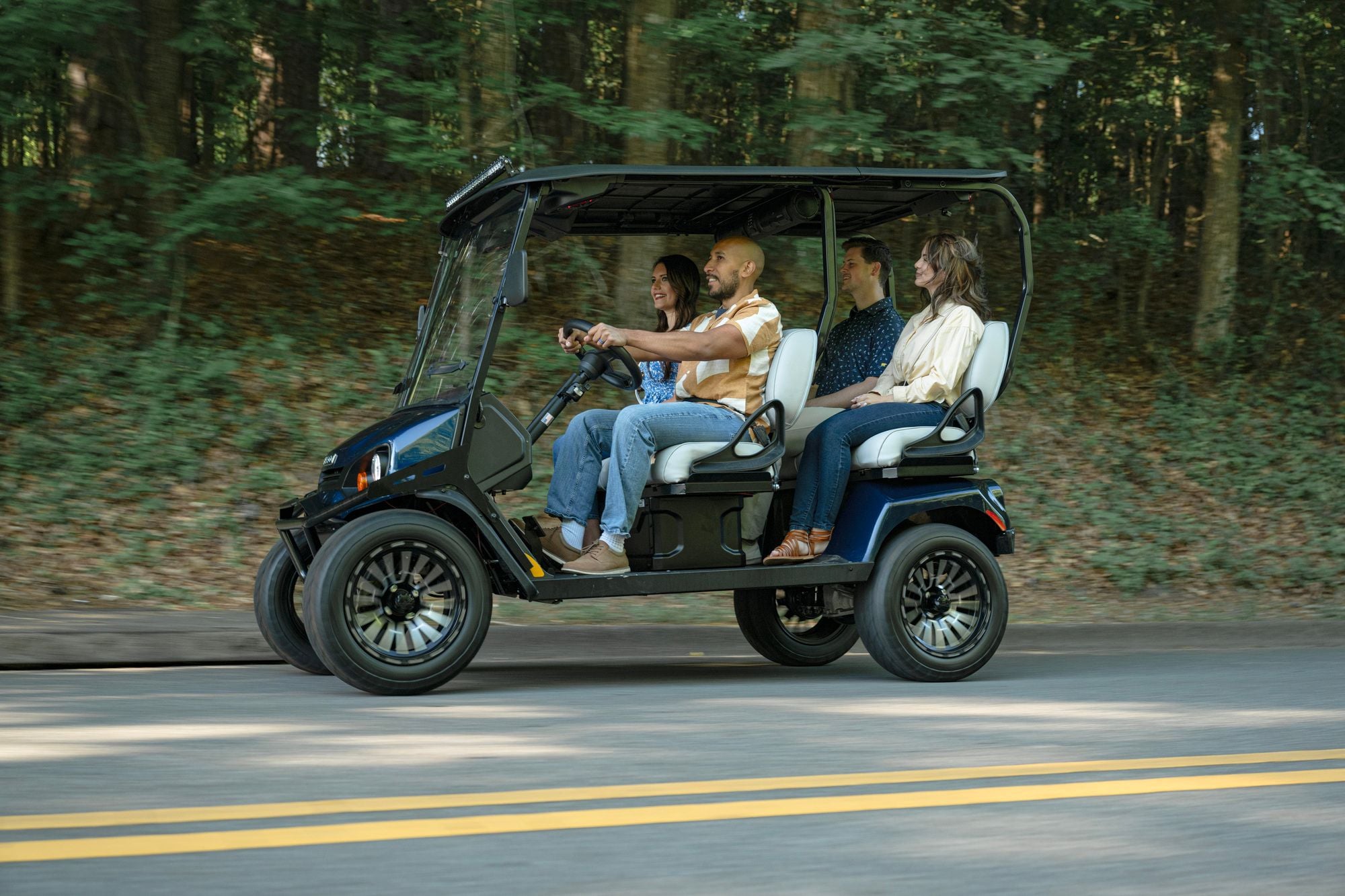

Go where no golf cart has gone before in the Liberty, with four forward-facing seats for a completely unique riding experience. Turn heads with premium packages featuring LED cupholders, sculpted foam seats for extra comfort, and the maintenance-free ELiTE® lithium powertrain.
Standard Features
• Samsung 2.2 Single Pack ELiTE Lithium Ion Battery
• Lightweight Portable Charger,
• Trim Package (Your Choice of one. Subject to stock Availability)
- Black Premium Seats with Black Roof
- Grey Premium Seats with Black Roof
- Mushroom Premium Seats with Black Roof
- Mushroom Premium Seats with Stonebeige Roof
• Commuter Package (Includes all of the below)
- Kinetica 185/60-14 Tyres with SPDR Alloy Wheel

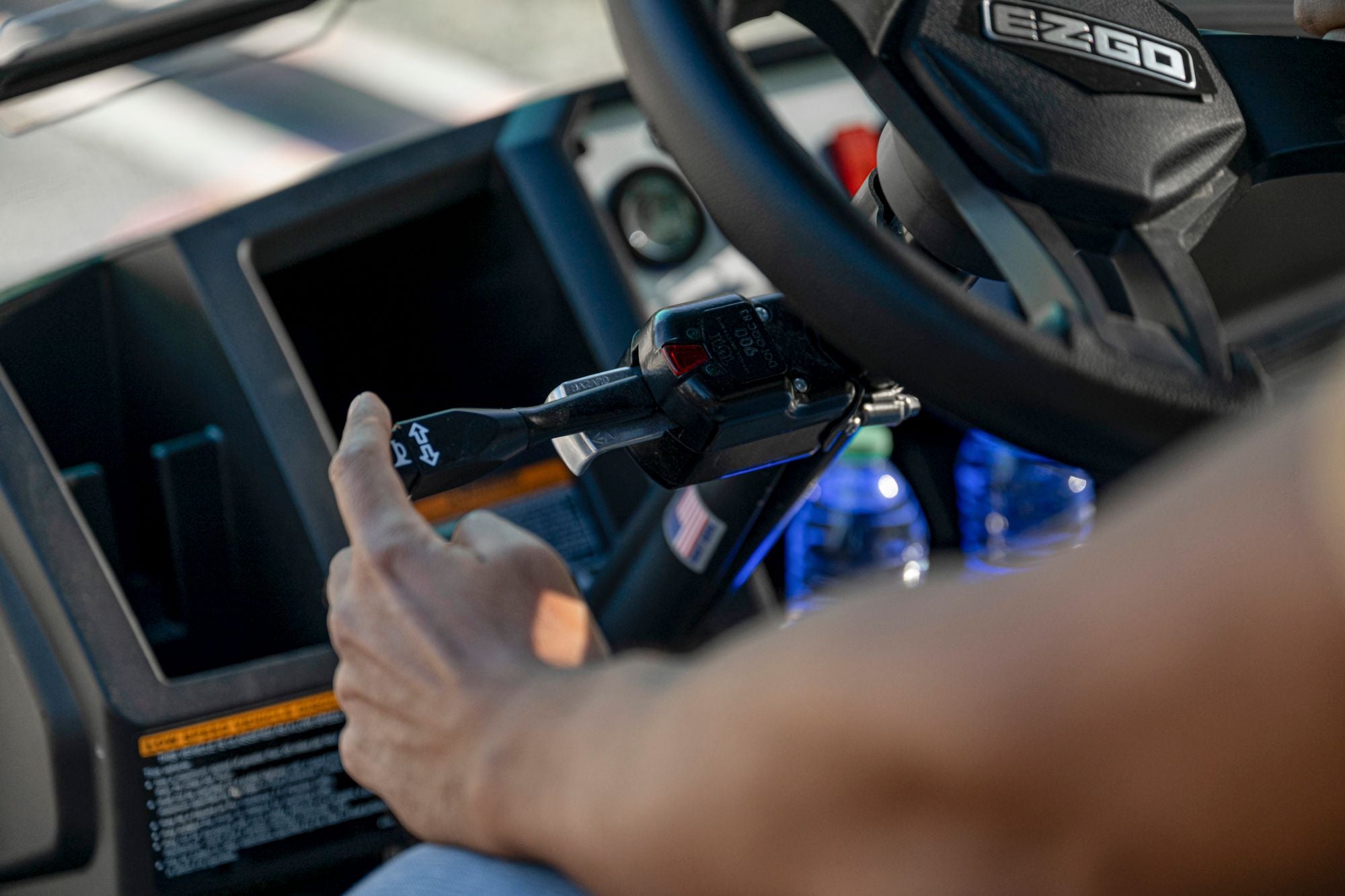

- Turn Signals with Horn
- Large Fender Flares
- 19.5 MPH Speed Setting
• Guage with Speed, State of Charge and Hour Meter
• Injection Moulded TPO Body Finish
• Premium Interior (Includes all of the below)
- Silver Dash
- Cup Holders with Lighting
- Individual Key Switch
- Glove Box Door
- Mats
- Shelf
• Premium Steering Wheel
• Convex Rear View Mirror
• 2” Receiver Hitch with quiet connection
• LED Tail & Brake Lights
• LED Headlights
• DC Converter
• USB Ports
• Choice of Standard Colour
OPS (Operator Protective Structure) Rated Canopy Structure
Reverse Camera
4 Wheel Hydraulic Brakes
Seat Belts
Centre high mount brake light
Options/Accessories
• Trunk
Specifications
DIMENSIONS
OVERALL LENGTH 106.5 in (271 cm)
OVERALL WIDTH 48 in (122 cm)
OVERALL HEIGHT (W/O ROOF) 54.5 in (138cm)
OVERALL HEIGHT (W/ ROOF) 78 in (198 cm)
WHEEL BASE 76 in (193 cm)
FRONT WHEEL TRACK 37.5 in (95 cm)
REAR WHEEL TRACK 39 in (99 cm)
GROUND CLEARANCE @ DIFFERENTIAL 5.5 in (14 cm)
POWER
POWER SOURCE 56.7V DC
MOTOR TYPE AC Induction
HORSEPOWER (KW) 11.7 hp (8.7 kW)
ELECTRICAL SYSTEM 56.7V
BATTERIES (QTY/TYPE) Single, 56.7V Li-Ion Composite Module (Standard Configuration)
KEY OR PEDAL START Pedal
BATTERY CHARGER 56.7V 350 W Domestic Charger, 3m Charging Cord
SPEED CONTROLLER 235 amp AC controller
DRIVETRAIN Motor Shaft Direct Drive
TRANSAXLE Differential with Helical Gears
GEAR SELECTION Dash Mounted FNR/Key Switch
REAR AXLE RATIO 16.99:1 (Forward)
PERFORMANCE
SEATING CAPACITY 4-passenger
DRY WEIGHT 914 lb (415kg) (without batteries)
CURB WEIGHT 960 lb (435 kg)
DASH/ IP STORAGE CAPACITY 1123 in²
VEHICLE LOAD CAPACITY 800 lb (364 kg)
REAR CARGO RACK LOAD CAPACITY 100 lb (45.6 kg)
TURNING RADIUS 12.85 ft (3.92m)
OUTSIDE CLEARANCE CIRCLE 25.7 ft (7.83 m)
SPEED (LEVEL GROUND) 19.5 mph (31 kph) +/- 0.5 mph (0.8 kph)
STEERING & SUSPENSION
STEERING Self-Compensating Reduction Rack and Pinion
SUSPENSION Leaf Springs with Hydraulic Shock Absorbers
SERVICE BRAKE Dual rear wheel mechanical self-adjusting drum
PARKING BRAKE Automatic Electro-Magnetic
BODY & CHASSIS
FRAME Welded Steel with DuraShield Powder Coat
FRONT BODY & FINISH Injection Molded TPO
BACK BODY & FINISH Thermoform ABS
)
