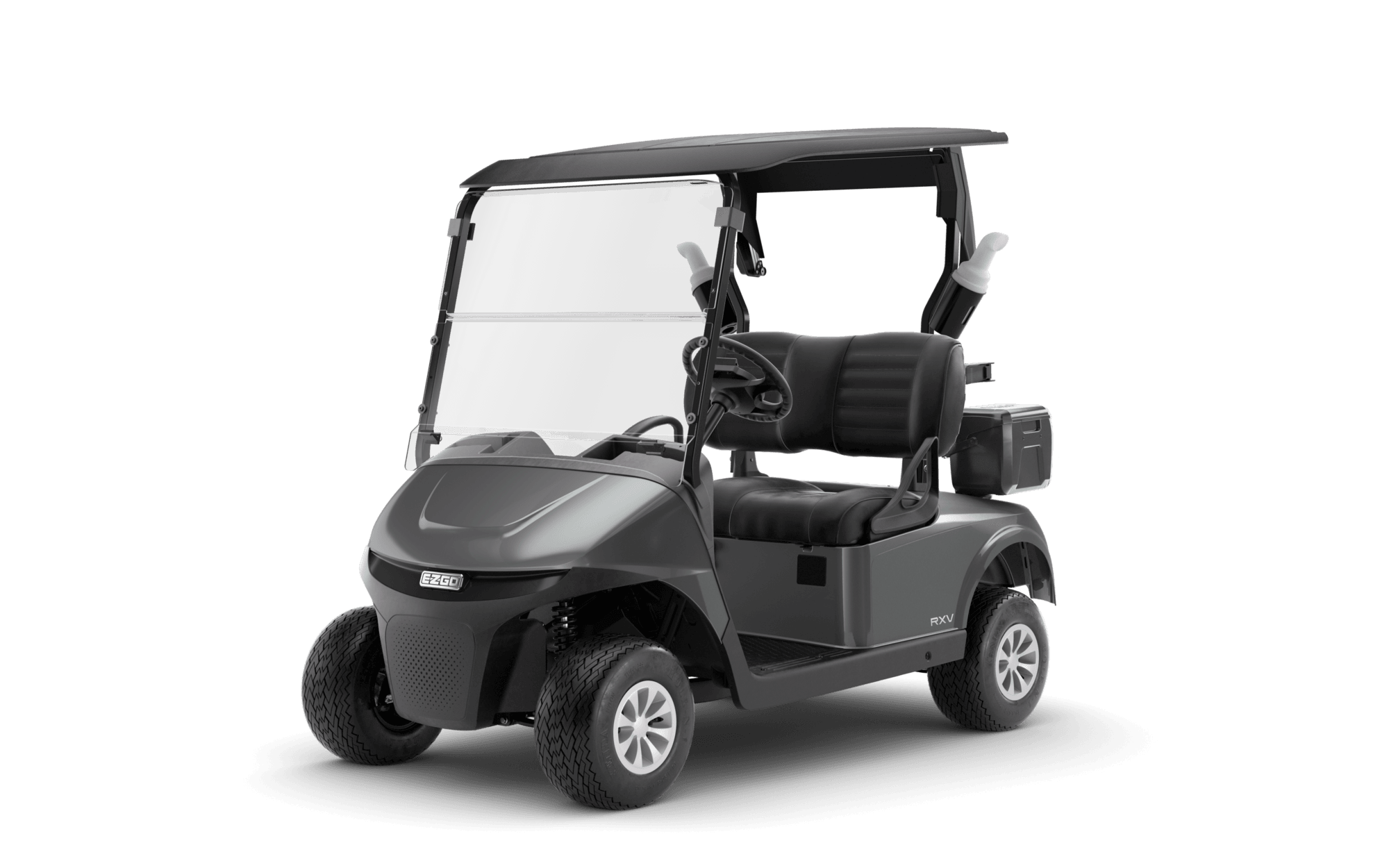

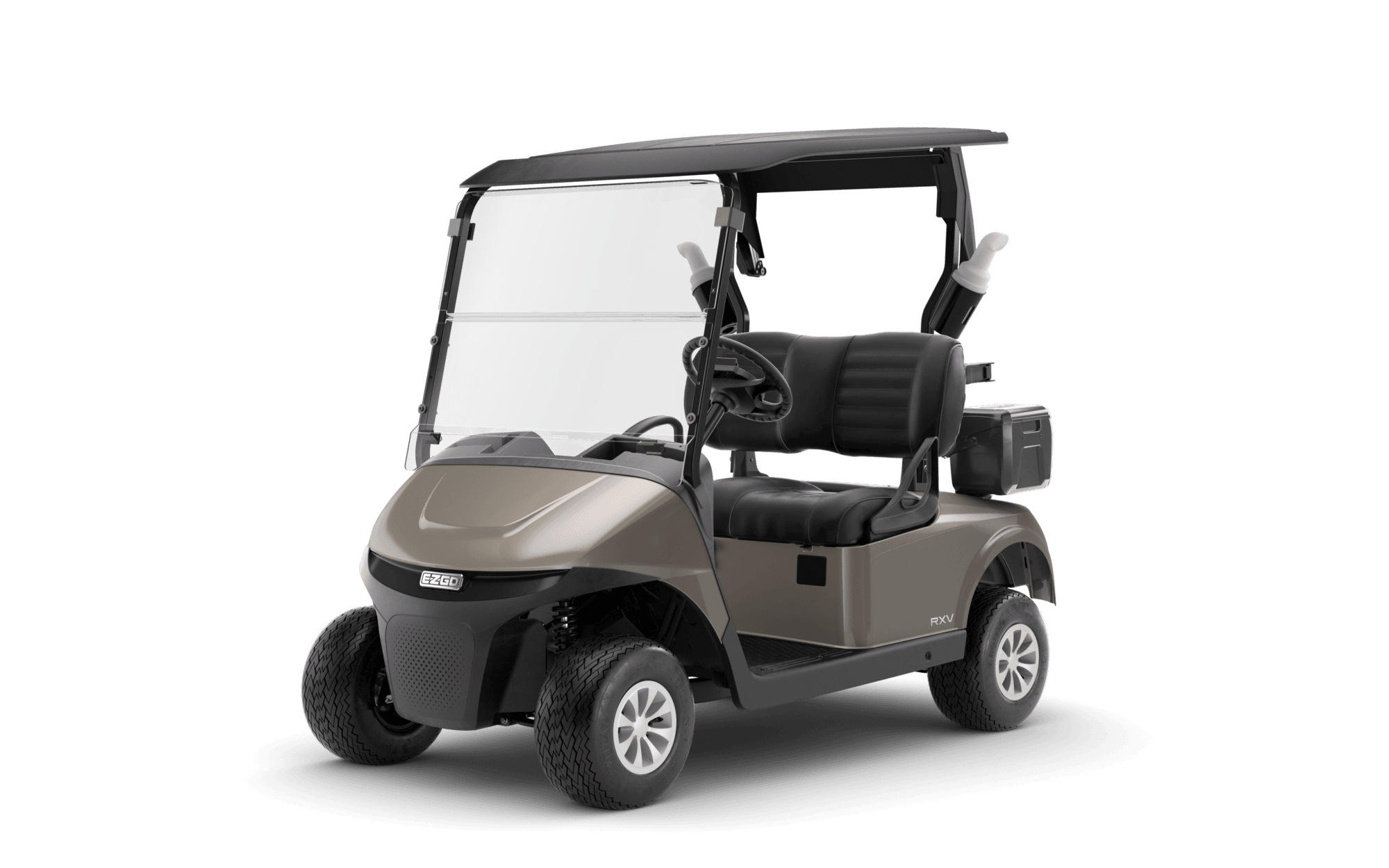

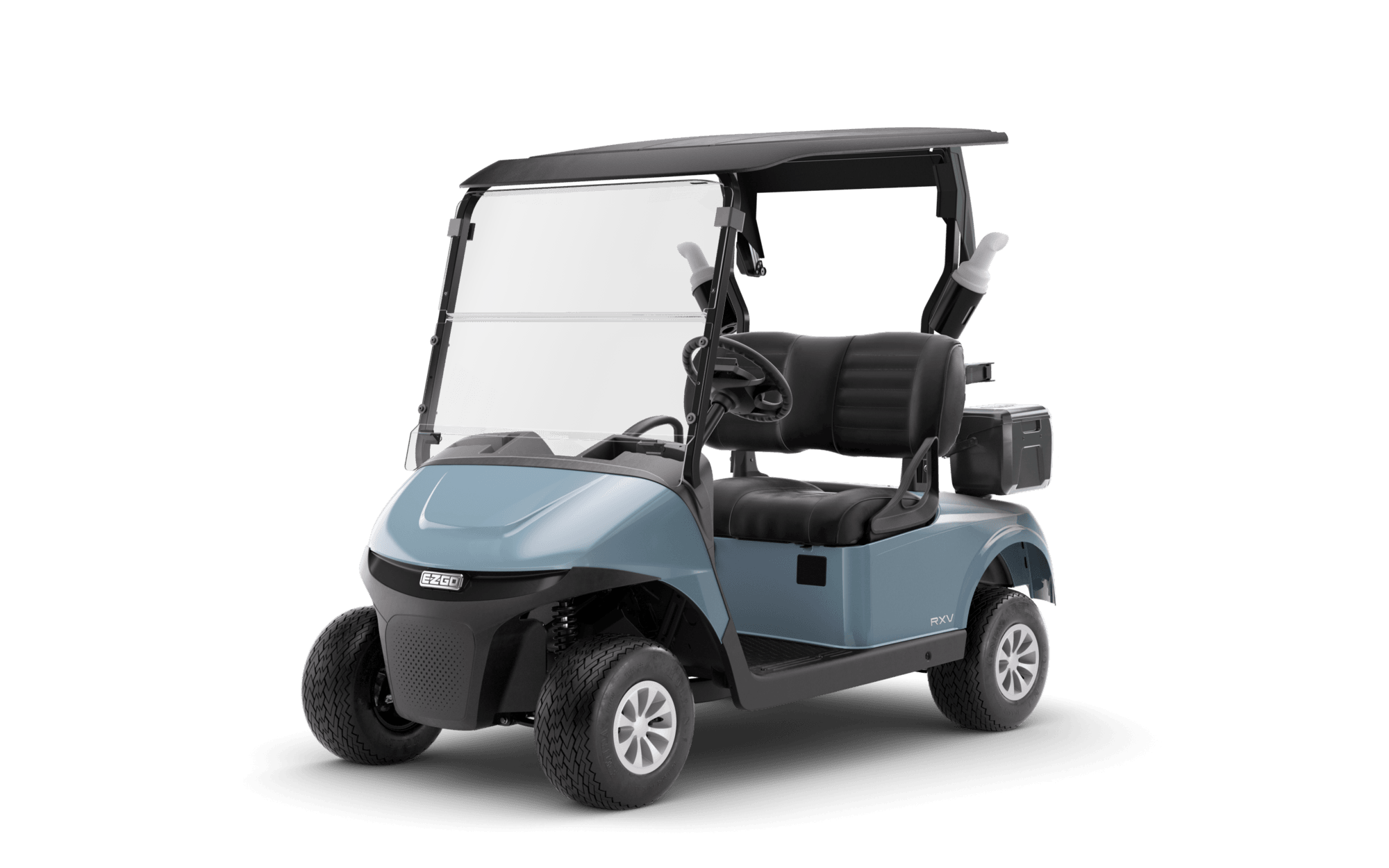

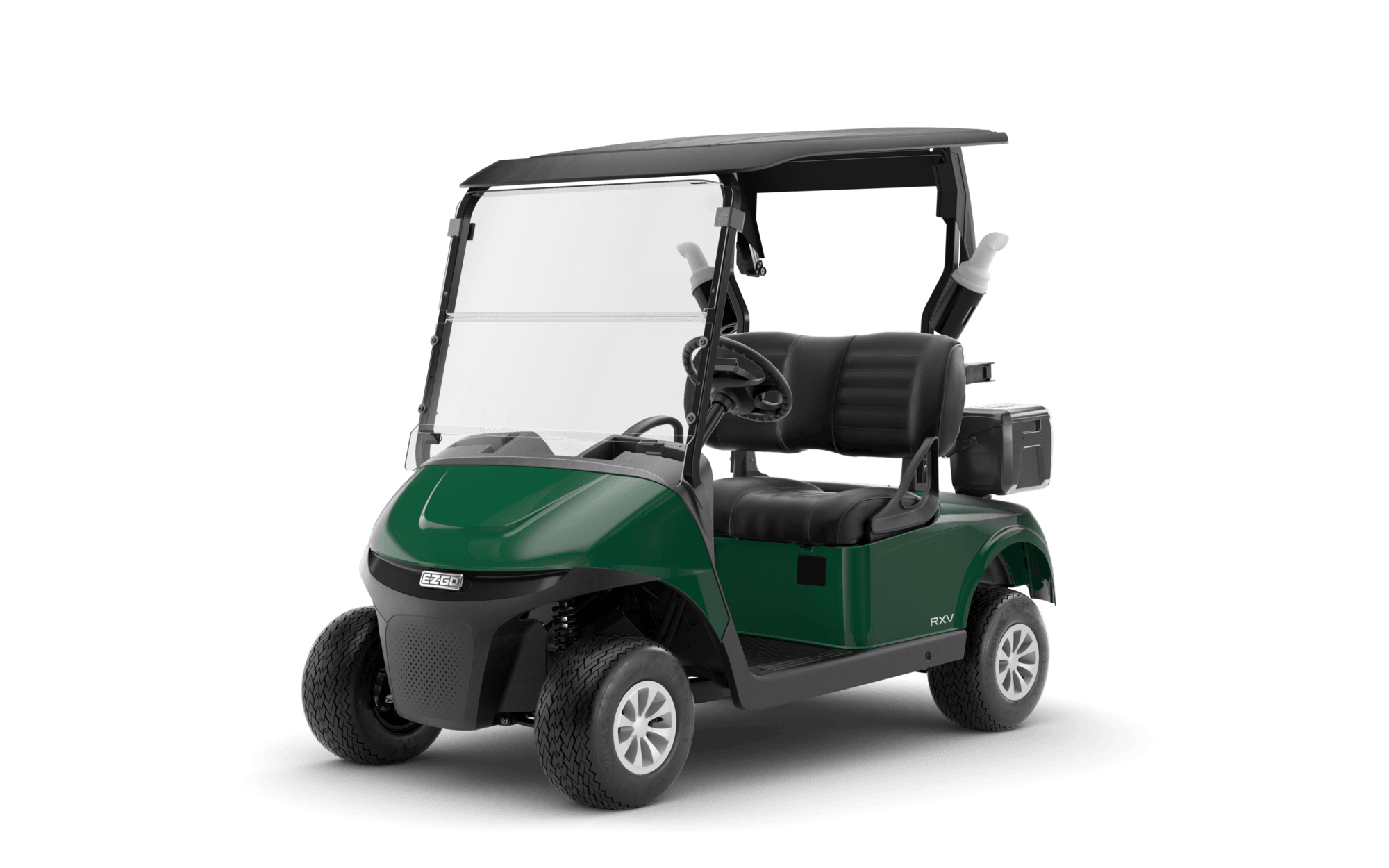

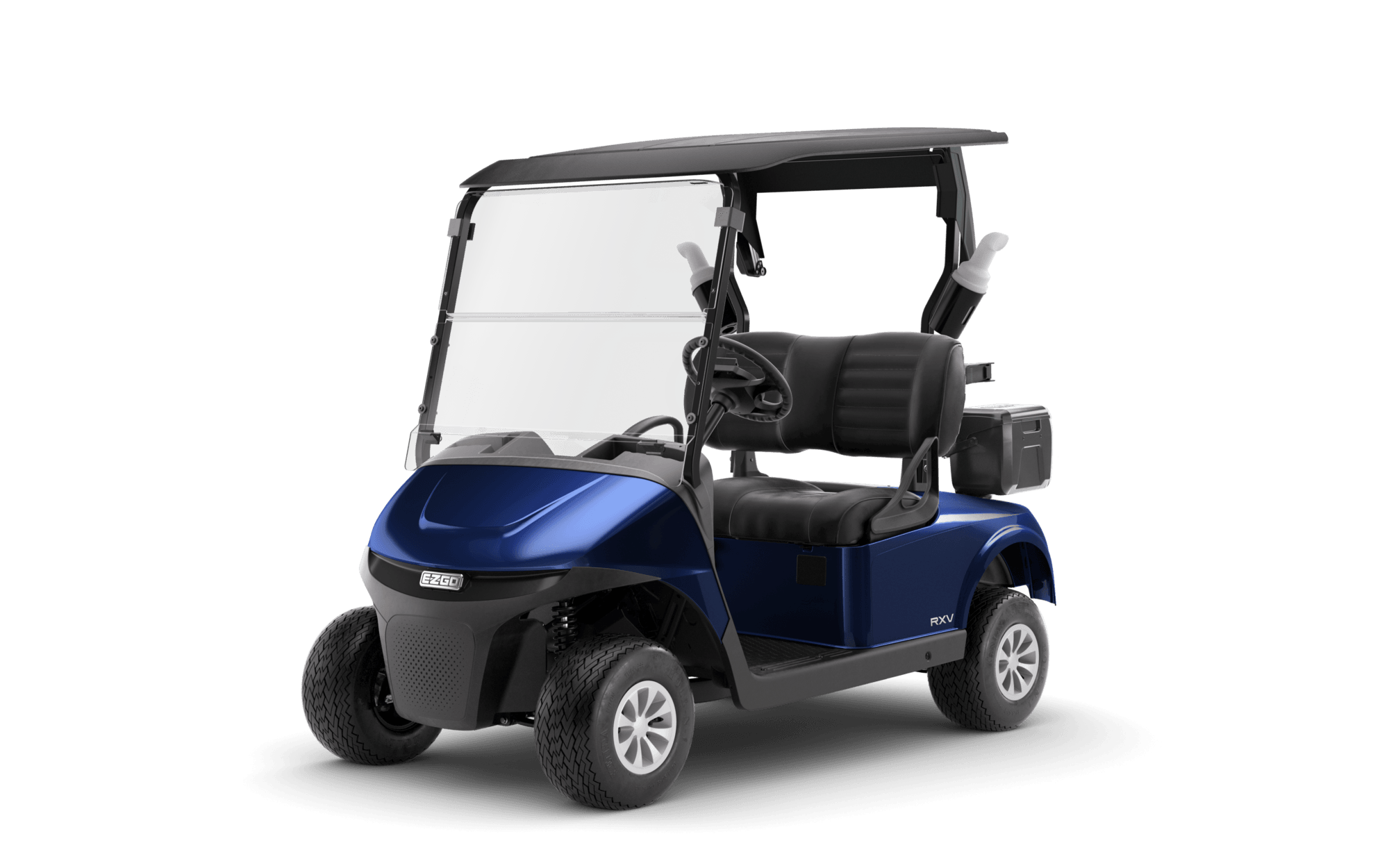

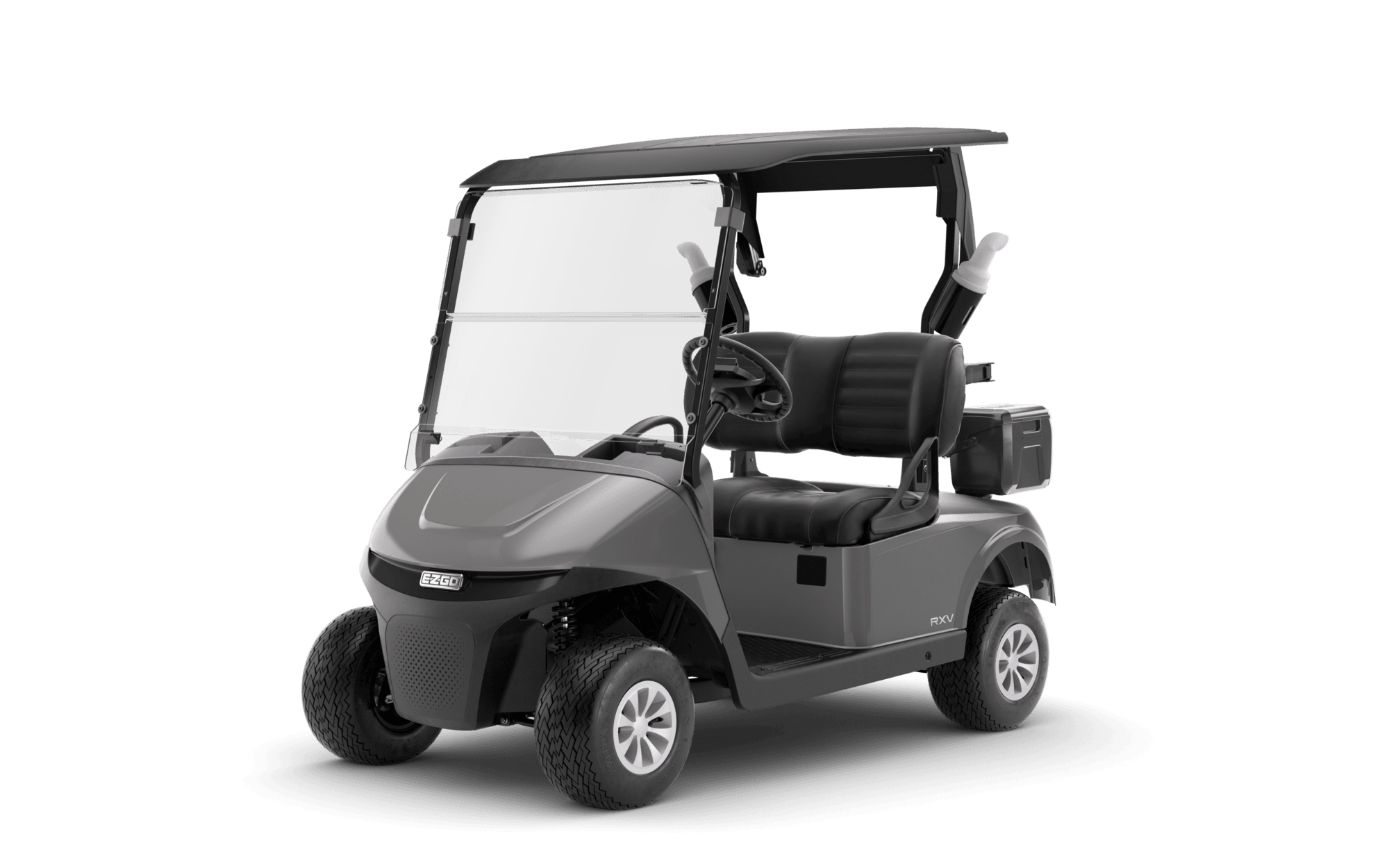

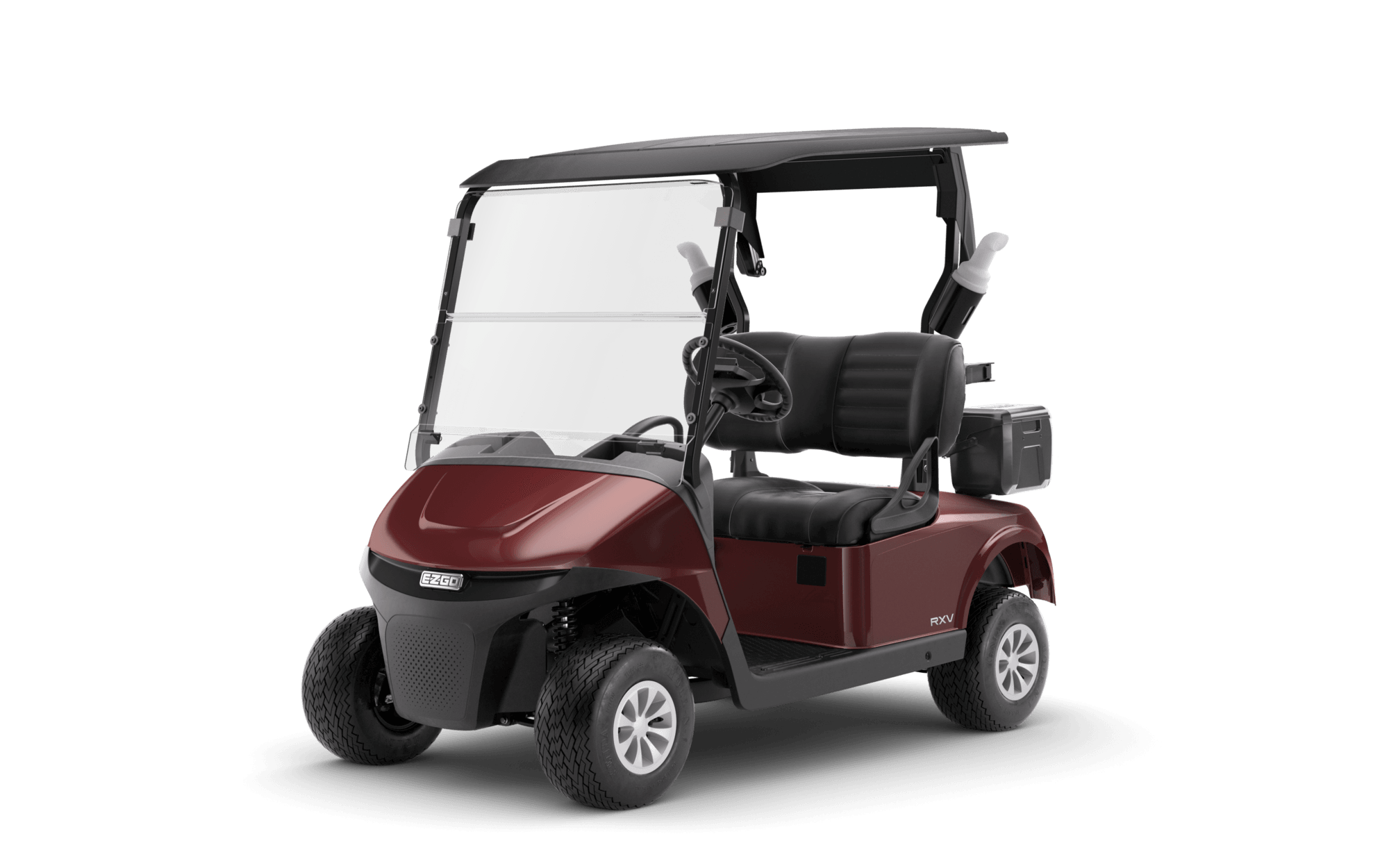

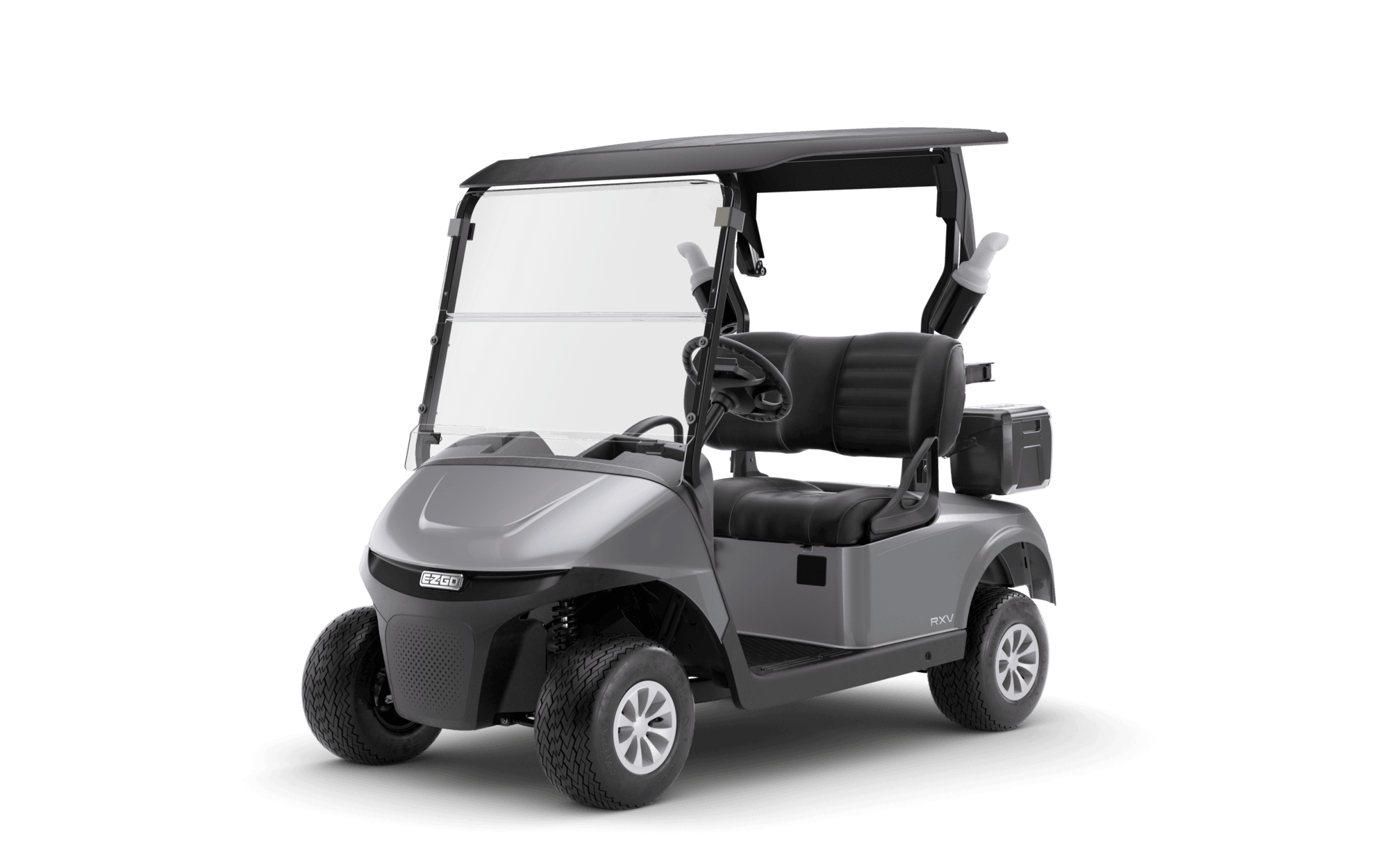

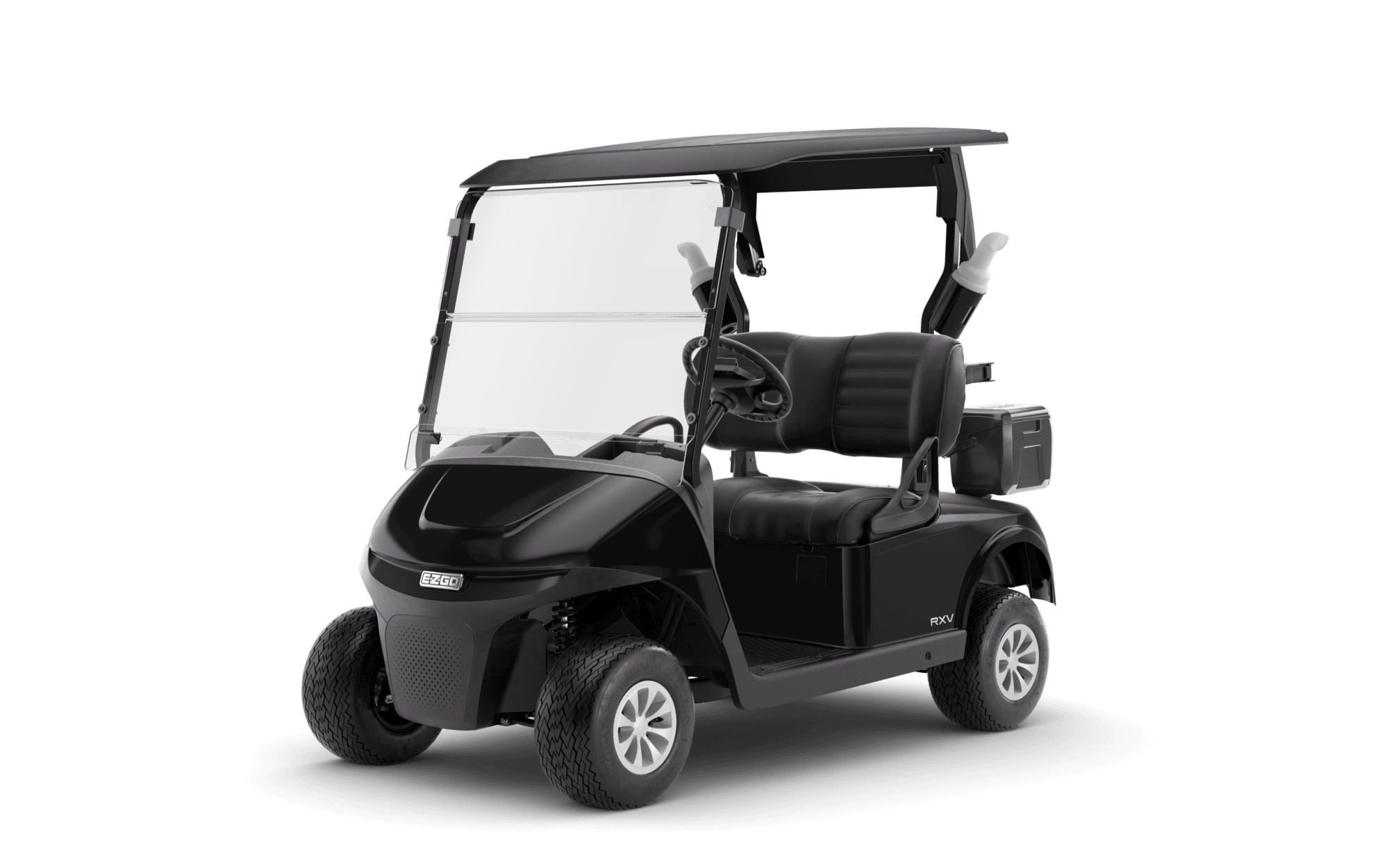

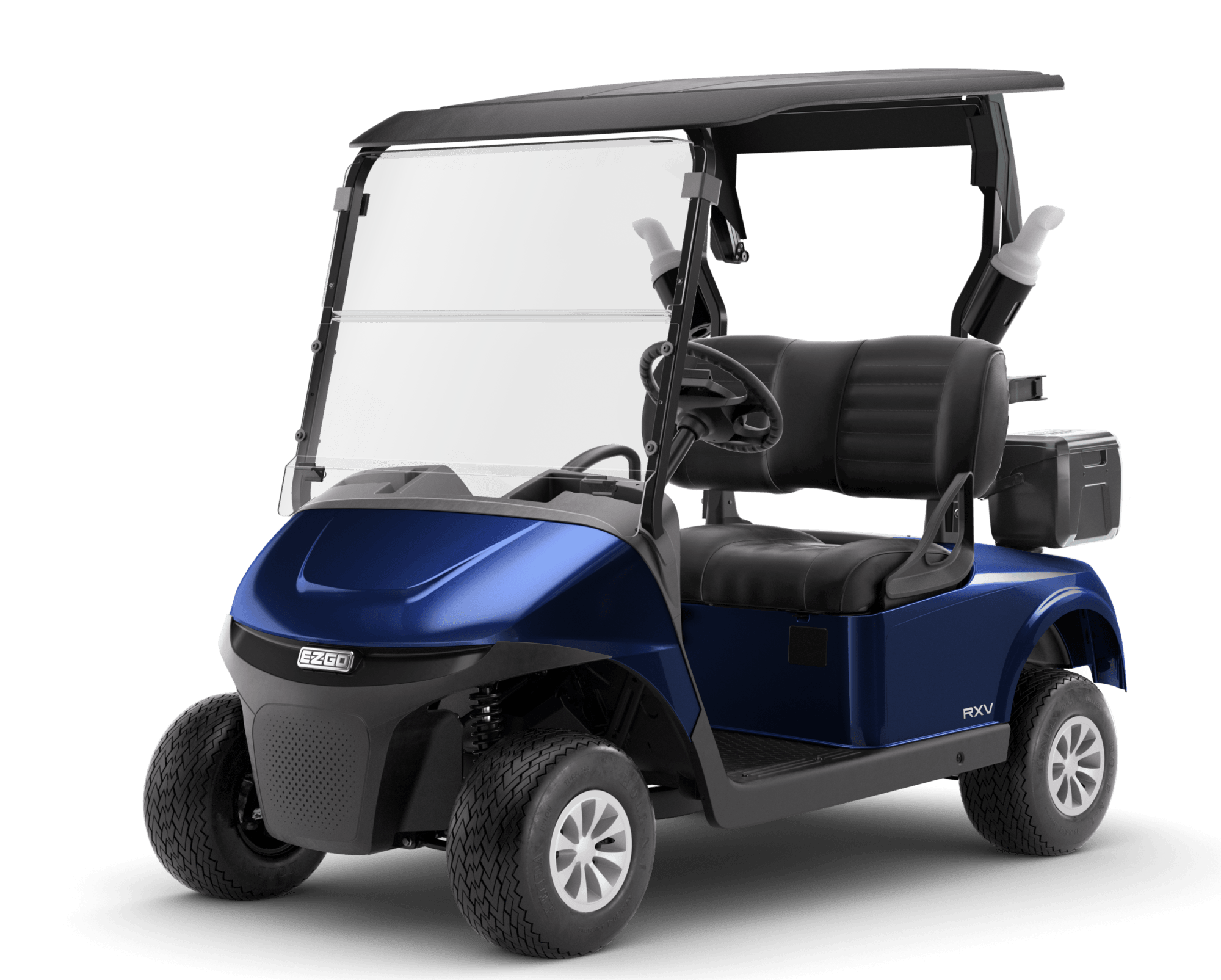

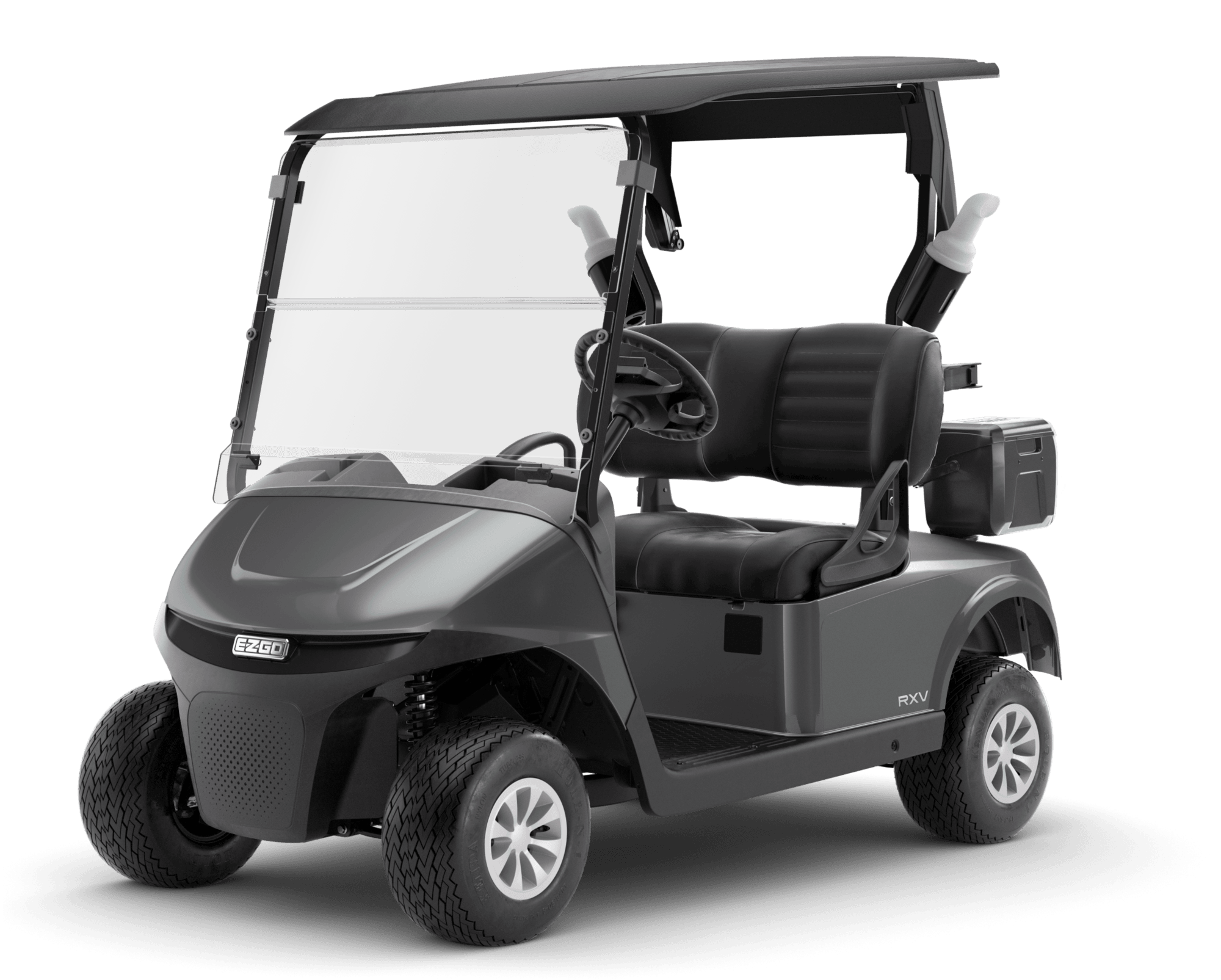

RXV Fleet - Petrol 13 hp

As the long-standing leader in golf car innovation, AC drivetrain efficiency and IntelliBrake technology, the E-Z-GO® RXV® continues to raise the bar on superior golf car performance. No other vehicle delivers reliable, efficient performance and a host of upgraded features like the RXV.

Standard Features

  • Kawasaki 13 hp Single Cylinder Petrol Engine,
  • Top Assembly & Seating ( Choice of Stone Beige, Oyster or Black)
  • 1 x Sand Bottle
  • Split Windshield
  • Low Fuel/Oil Gauge
  • Scuff Guards
  • Injection Moulded TPO Body finish
  • Metallic Hubcaps ( Gold or Silver)
  • Hour Meter
  • Reverse Beeper
  • Choice of Colour

Options/Accessories

  • Sand bucket
  • Club & ball washer
  • Drinks Cooler Esky
  • Message holder
  • Lockable Glovebox doors
  • Rainbag Cover ( Stone Beige, Oyster or Black)
  • Premium Mushroom Seats
  • USB Port

Specifications

Dimensions

Overall Length: 240 cm
Overall Width: 119 cm
Overall Height (no canopy): 116 cm
Overall Height (with canopy): 174 cm
Wheel Base: 167 cm
Front Wheel Track: 90 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 8 cm

Power

Power Source: 4-Cycle 24.5 cu in (401cc) Low Emissions
Valve Train: Single-Cylinder OHV with Hemispheric Combustion Chamber
Horsepower: 13.5 hp (10.1kW) Exceeeds SAE J1940 Std
Electric System: Starter/Generator, Solid State Regulator
Battery (qty/type): One, 12 Volt Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner: Industrial Rated Dry Filter
Lubrication: Pressurized Oil System
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 23.1 Litre
Drive Train: Automatic, Continuously Variable Transmission (CVT)
Transaxle: Differential with helical gears
Gear Selection: Forward-Reverse
Rear Axle Ratio:  FWD - 11.42:1    REV -15.78:1


Performance

Seating Capacity: 2 Person
Dry Weight : 316 Kg
Curb Weight: 339 Kg
Vehicle Load Capacity: 360 Kg
Outside Clearance Circle: 5.8 m
Speed (level ground): 19.3 kph ± 0.8 kph
Towing Capacity: 3 E-Z-GO Golf Cars with Approved permanent tow bar


Steering & Suspension

Steering: Double-ended Rack and Pinion
Front Suspension: Independent A-arm Coil over Shock
Rear Suspension:  Mono Leaf Springs with hydraulic Shocks
Service Brake: Rear Wheel Mechanical Self Adjusting Drum
Parking Brake: Self-compensating, Single Point Engagement
Front Tyres: Turf Tyres 18 x 8.5 - 8 (4 Ply Rated)

Body & Chassis

Frame: Welded steel with powder coat protection
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
Standard Colour: Forest Green
Standard Colour: Almond, Black, Burgundy, Electric Blue, Flame Red, Inferno Red, Ivory, Metallic Charcoal, Orange, Patriot Blue, Platinum, White
Standard Seat Colour: Stone Beige
Optional Seat Colours: Black or Oyster
Pinstriping Colours: Pewter, White, Black, Gold

Download Owners Manual
