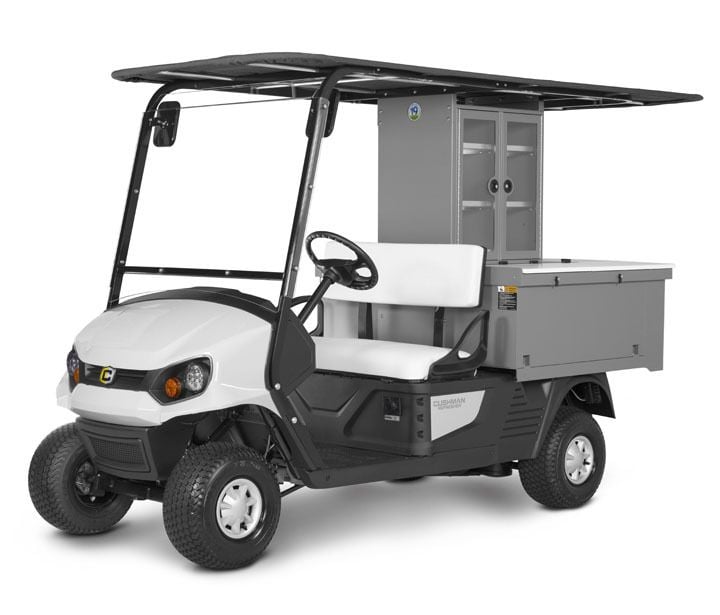

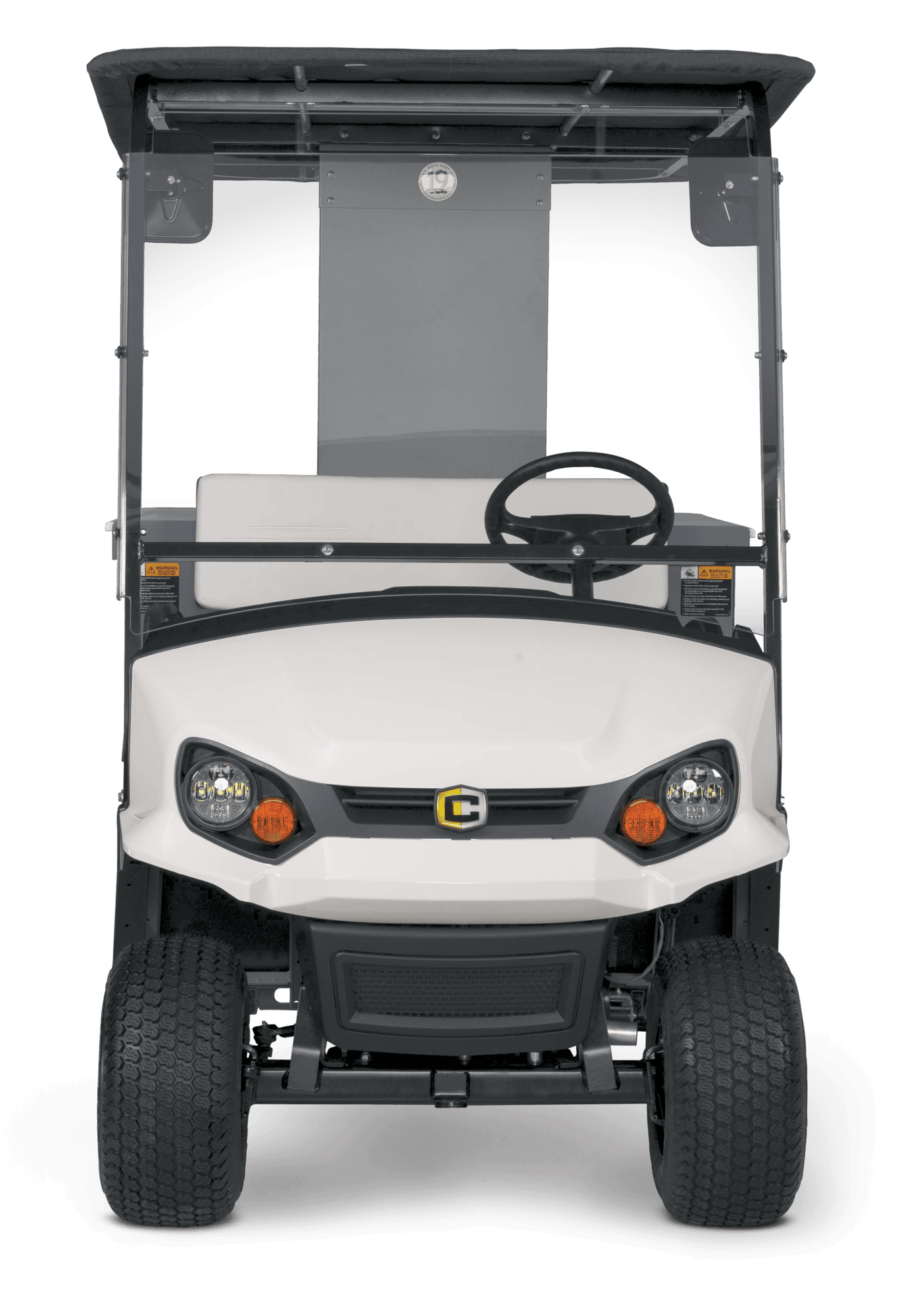

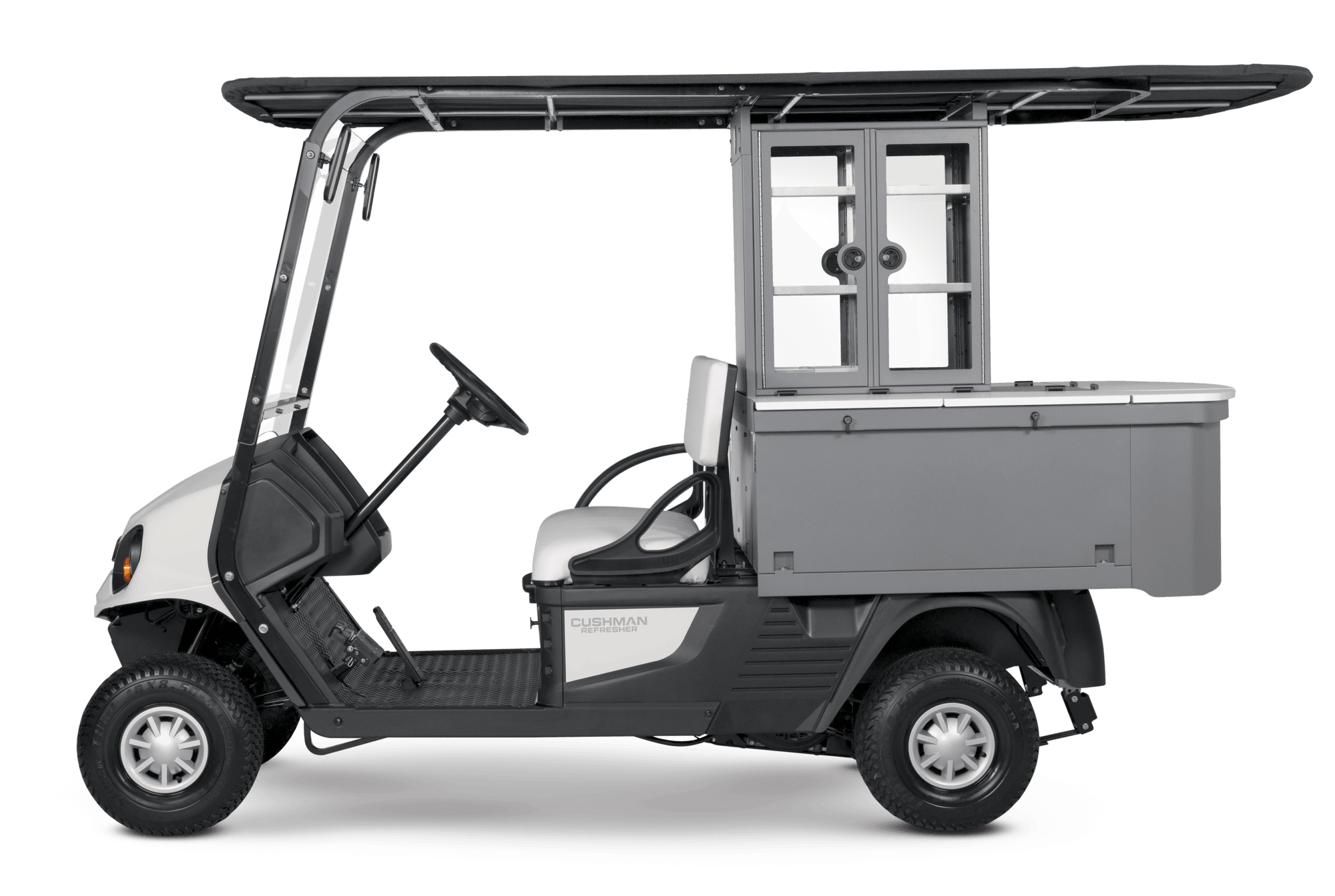

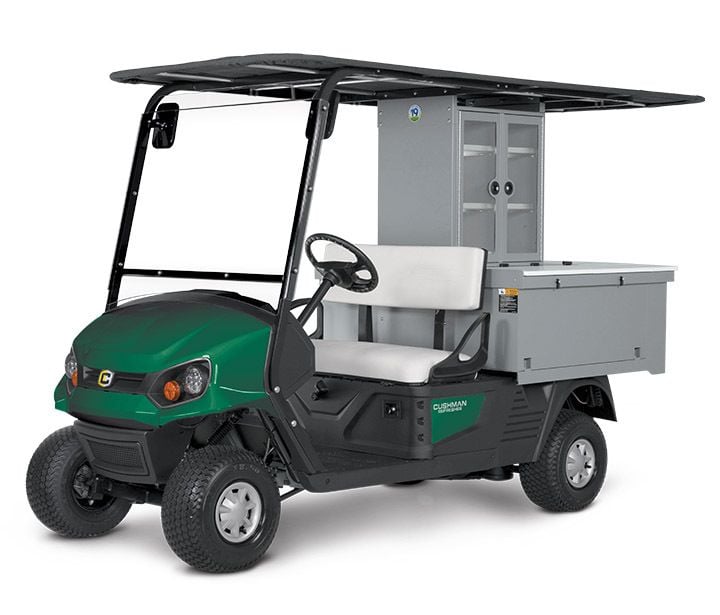

Refresher Oasis - Elite Lithium
The Refresher Oasis was built for long days and busy events. With its industry-leading can capacity and enough merchandising space for your most popular items, stopping to restock is yesterday's problem. Available with a silent, maintenance-free ELiTE® lithium battery powered by Samsung SDI technology the Refresher Oasis leads to unparalleled customer service.
Standard Features
- Samsung Twin Pack Elite Lithium
- AC Motor
- Headlights, Tail & Brake Lights
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- State of Charge Meter
- Hour Meter
- Fender Flares
- Limited Slip Differential with Diff Guard
- 12-Volt Outlet
- Horn and Reverse Beeper
- 18 x 8.5 - 8 (8 Ply-Rated)
- Comfort Grip Steering Wheel
- 4 locking lids in white countertop with hold open brackets
- Drain valve; Extended countertop at rear of deck with trash /recycle storage with lid and hold open bracket
- Solid Windshield with Frame
- Struts and Slate Canopy
- Side Mirrors (left and right)
- Beverage tank with built-in dividers
- 2 plastic removable bins ( 1 blue, 1 green)
- 3.0 Liter Airpots (2)
- Consumable Ice Bin with Lid
Options/Accessories
- Electric Food Warmer
- All Weather Enclosure to Cab
- Colour Options available for Canopy, Unit and
- Vehicle
Specifications
Dimensions
Overall Length: 297.18 cm
Overall Width: 129.03 cm
Overall Height (with canopy): 186.18 cm
Wheel Base: 193.04 cm
Front Wheel Track: 88.9 cm
Rear Wheel Track: 97.79 cm
Ground Clearance (at differential): 8.9 cm
Refresher Unit Material/Finish: 5000 Series Aluminium - Super Durable TGIC Polyester Powder Coating
Power
Power Source: 56.7 V Li-Ion Battery
Motor Type: AC Induction
Horsepower: 14.9 hp
Electric System: 48V, 12V Auxiliary???????
Battery (qty/type): 4.2 ELiTE – Twin Pack???????
Key or Pedal Start: Pedal Start
Battery Charger: 811W World Charger???????
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Neutral-Reverse
Rear Axle Ratio: 16:99:1 (Forward)
Performance
Seating Capacity: 2 Person
Dry Weight (without battery): 461 Kg
Curb Weight: 498 Kg
Vehicle Load Capacity: 541 Kg
Outside Clearance Circle: 6.5 m
Speed (level ground): 17 kph ± 0.8 kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking BrakeAutomatic, Electromagnetic
Tyres: 18 x 8.5 - 8 (8 Ply-Rated)
Body & Chassis
Frame: Welded steel with E-Shield ecoat plus Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Standard Colour: Forest Green/Patriot Blue
)
)
