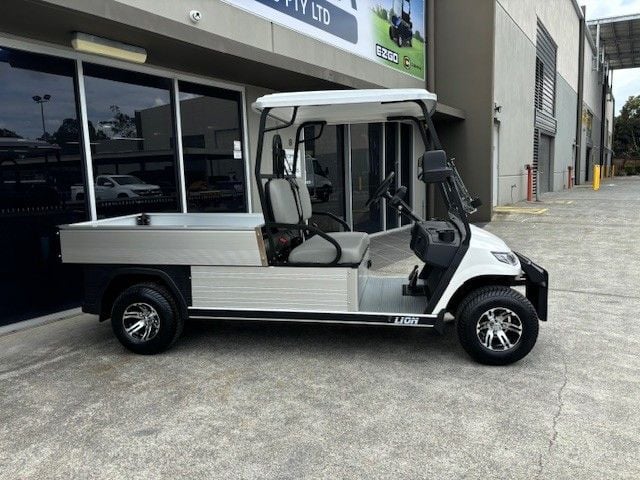

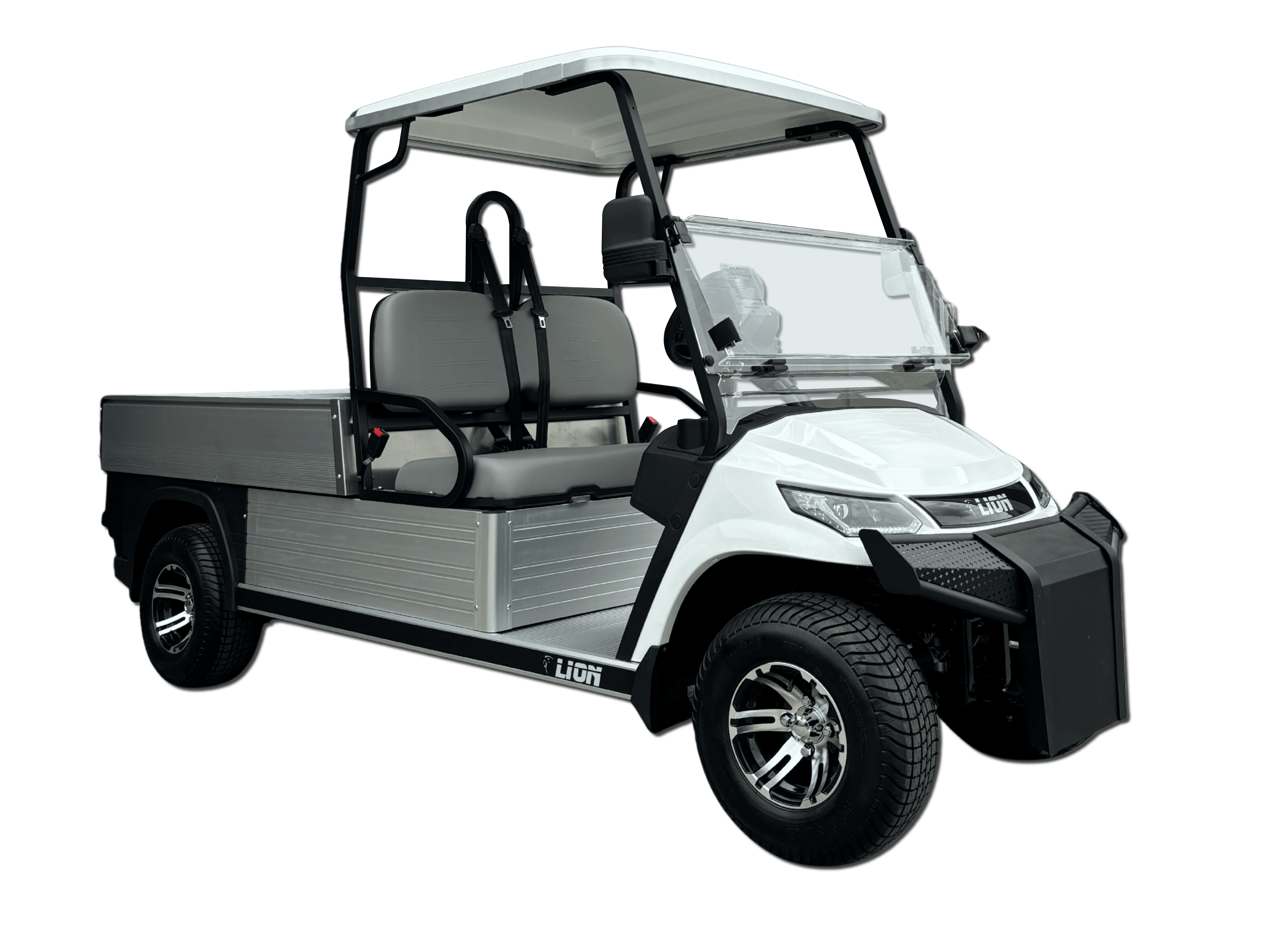

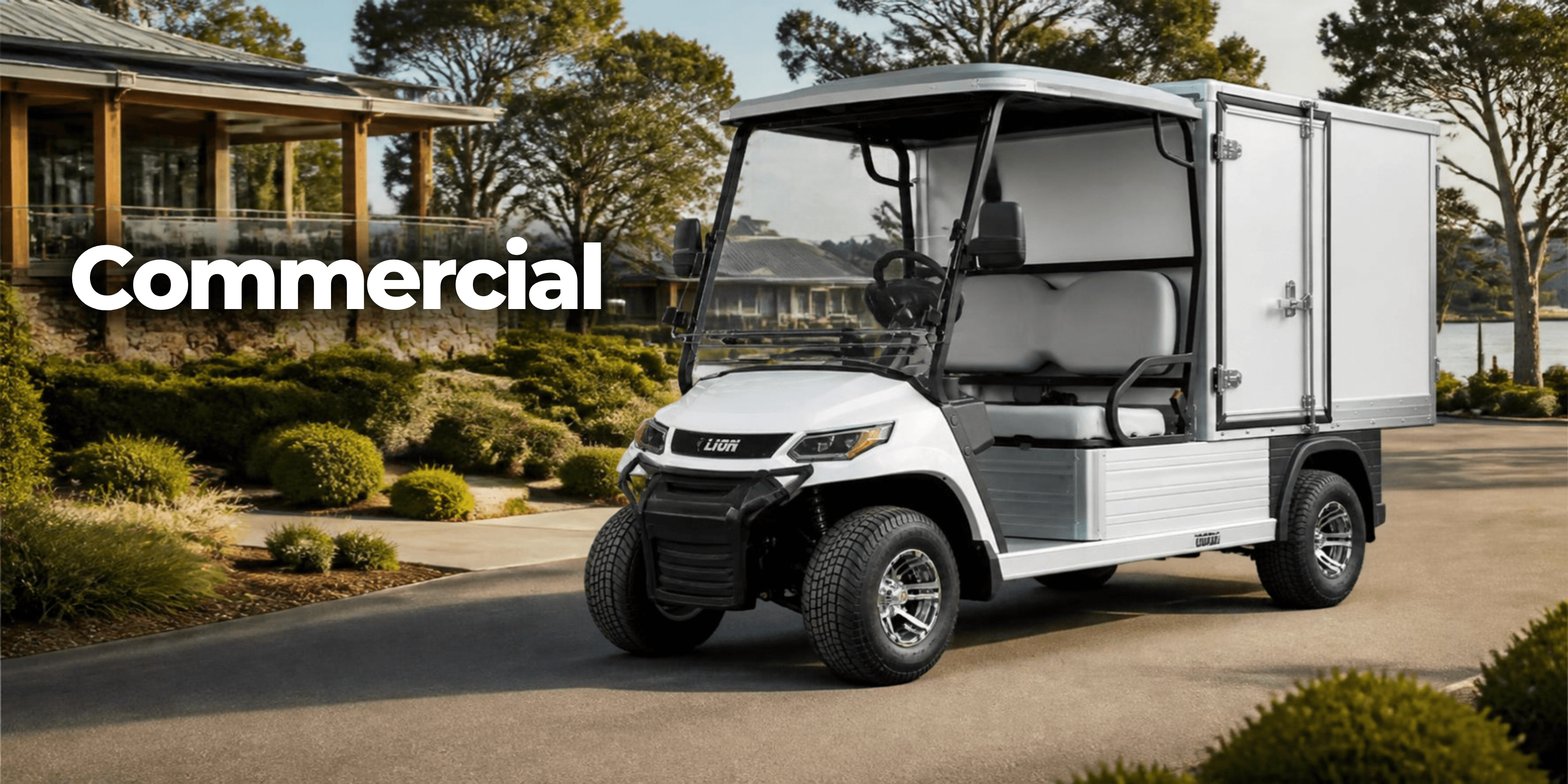

Ready for work! The Carrymax range is the perfect choice for your utility needs. Right at home at sporting clubs/ caravan parks/warehouse/gardens/schools and universities. Long battery life and reliability, a real standout on this allrounder. Our popular Carrymax comes standard with a 1400mm tray, ready to transport a large range of goods and services.

STANDARD INCLUSIONS

• Metallic bodywork
• Deluxe LED lighting system

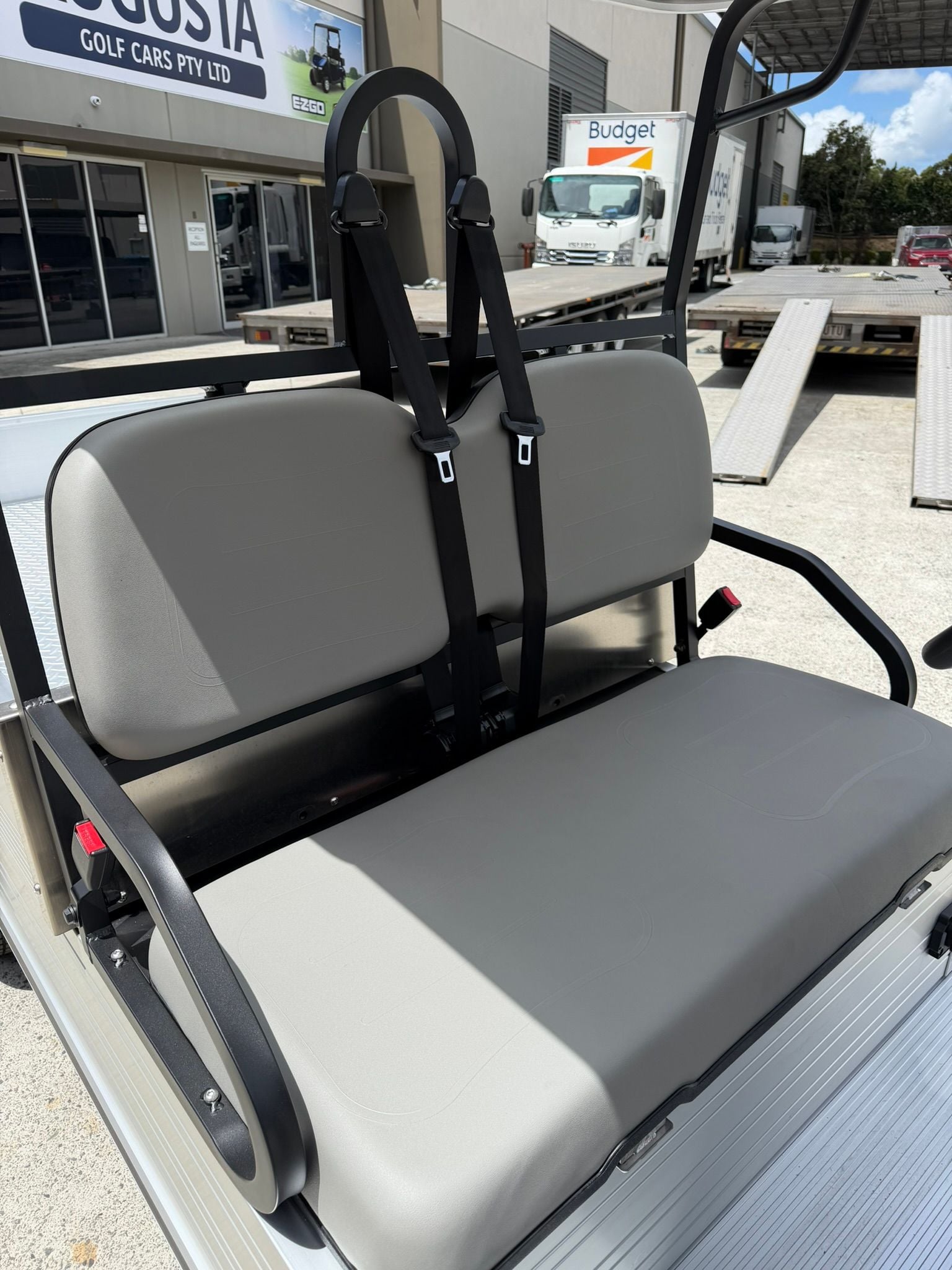

• Seatbelts

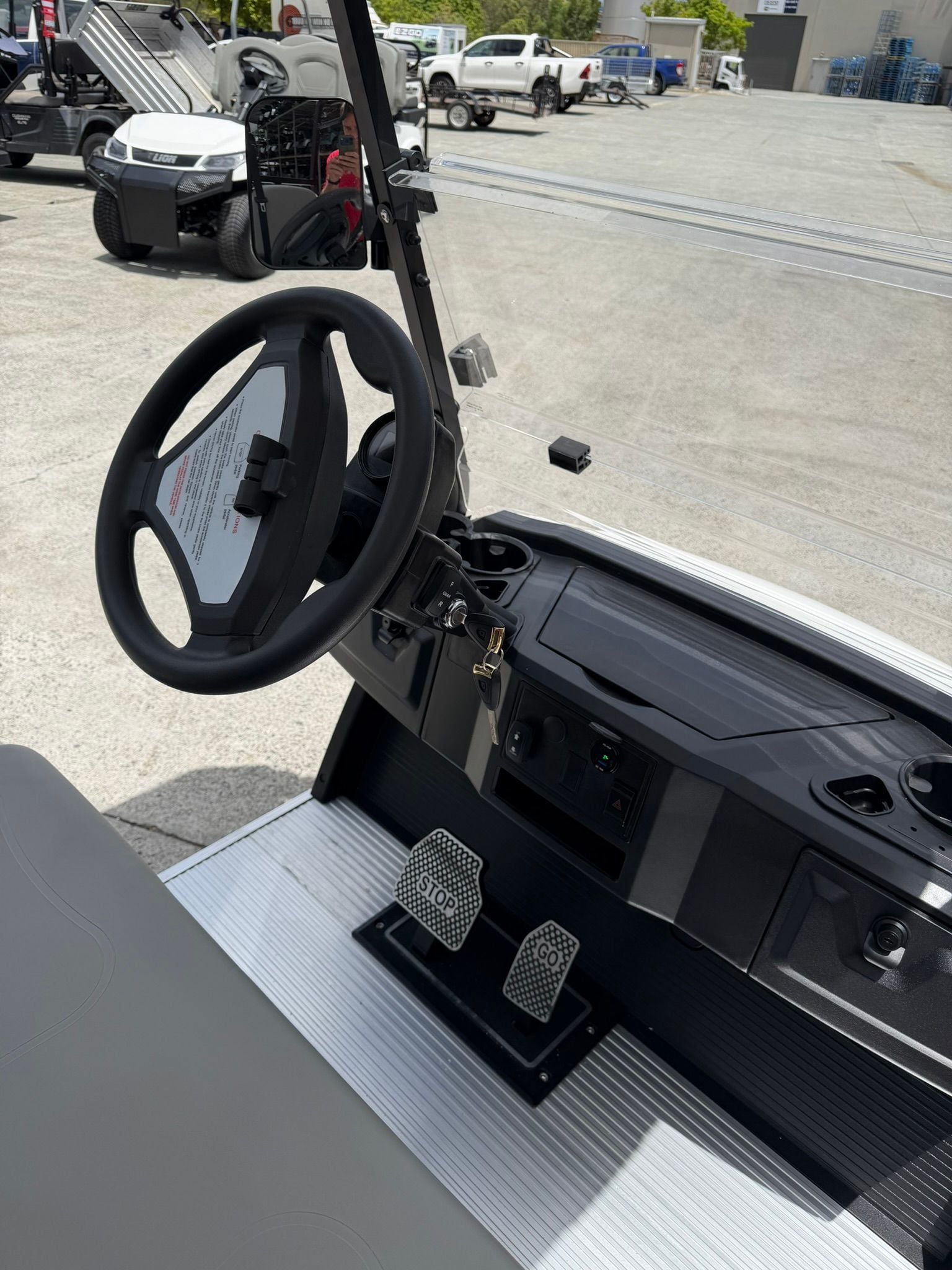

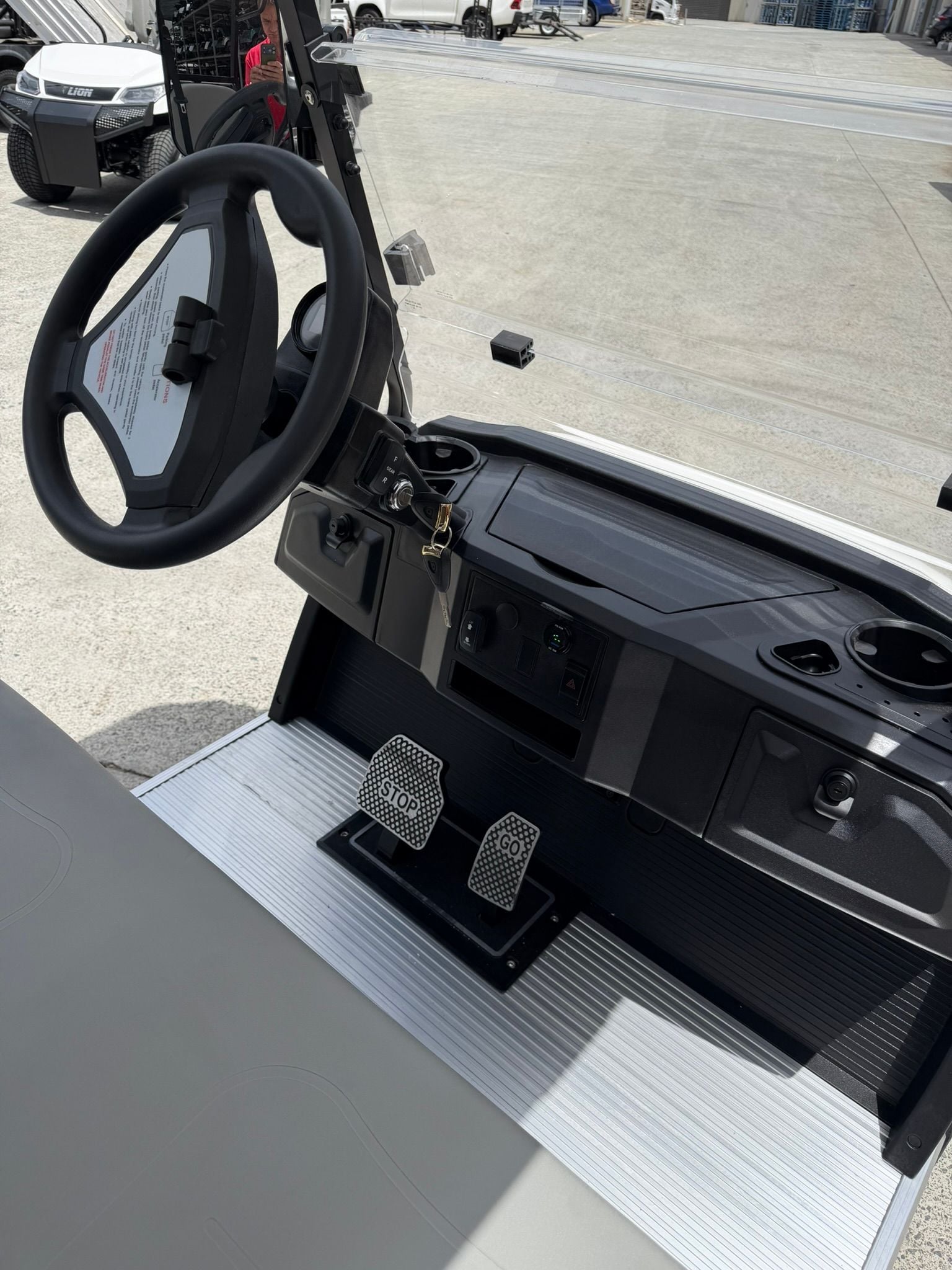

• Speedometer & state of charge meter
• Mag wheels
• Onboard charger
• Dual USB port
• Mirrors

PERFORMANCE

• Seating - 2 person
• Max speed - Adjustable up to 25KPH
• Turning circle - 5.1m
• Climbing availability - 25%
• Brake distance - <5m

KEY COMPONENTS

• Advanced 105ah Lithium pack OR Advanced 150ah HD Lithium Pack
• 350A LEV AC Controller
• Motor - 4.0KW AC motor
• Matched RCM complied charger

DIMENSIONS

• Length - 3210mm
• Width - 1210mm ? Height- 1890mm
• Weight - 545kg w/105ah battery or 570kg with 150ah battery
• Ground clearance - 210mm
• Tray size 1410mm(L) 1150mm(W) 265mm(H)

LOAD RATINGS

• Tray capacity 500kg
• Tray tipping capacity 220kg
• Towing capacity 300kg

BRAKING/SUSPENSION/STEERING

• Hydraulic 4 wheel disc brakes
• 10’’ alloy mag wheels
• 205/65-10 4 ply tyres
• Electro magnetic park brake
• Fully independent suspension
• Rack & pinion steering

CARRYMAX INCLUSIONS

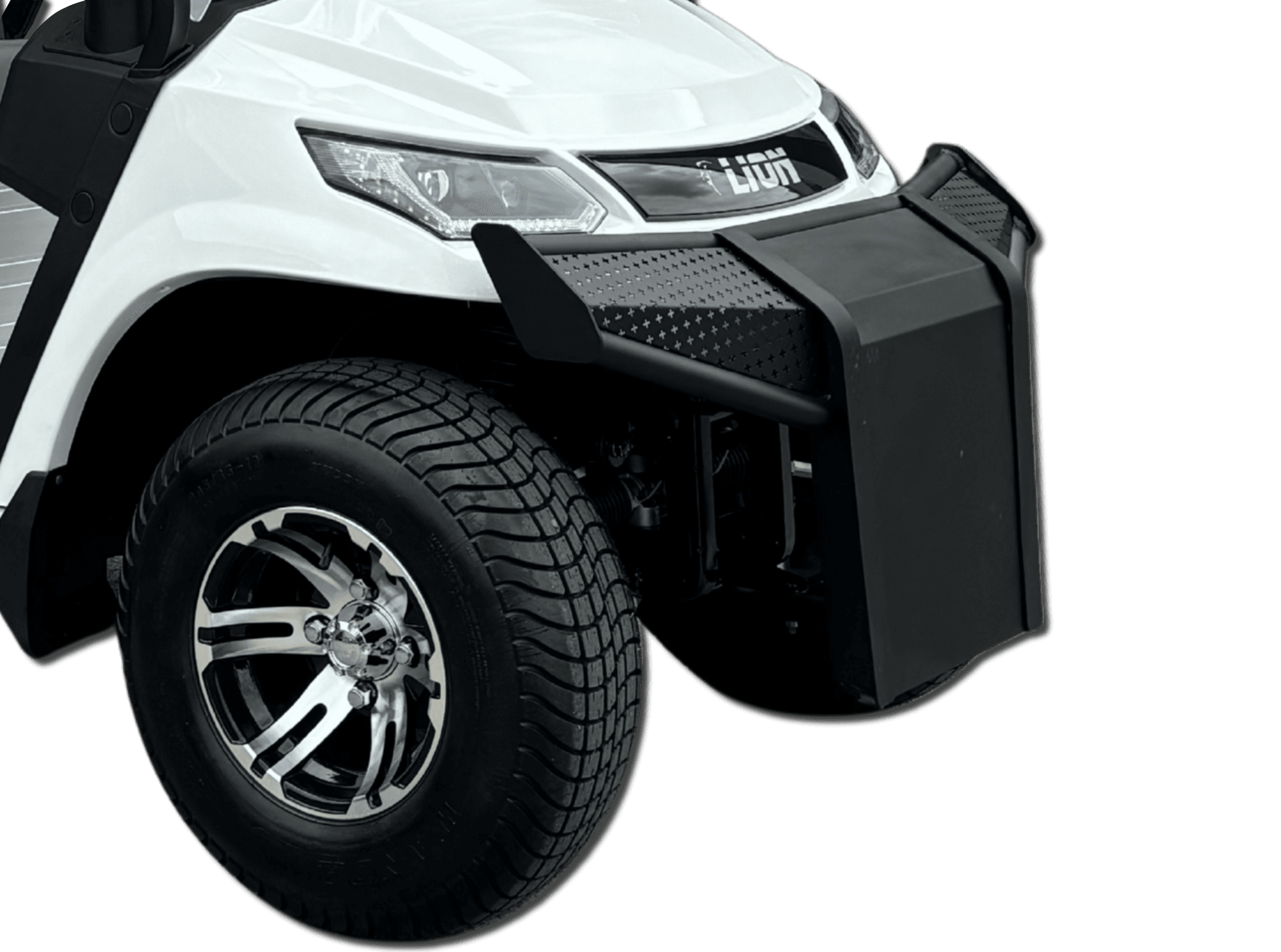

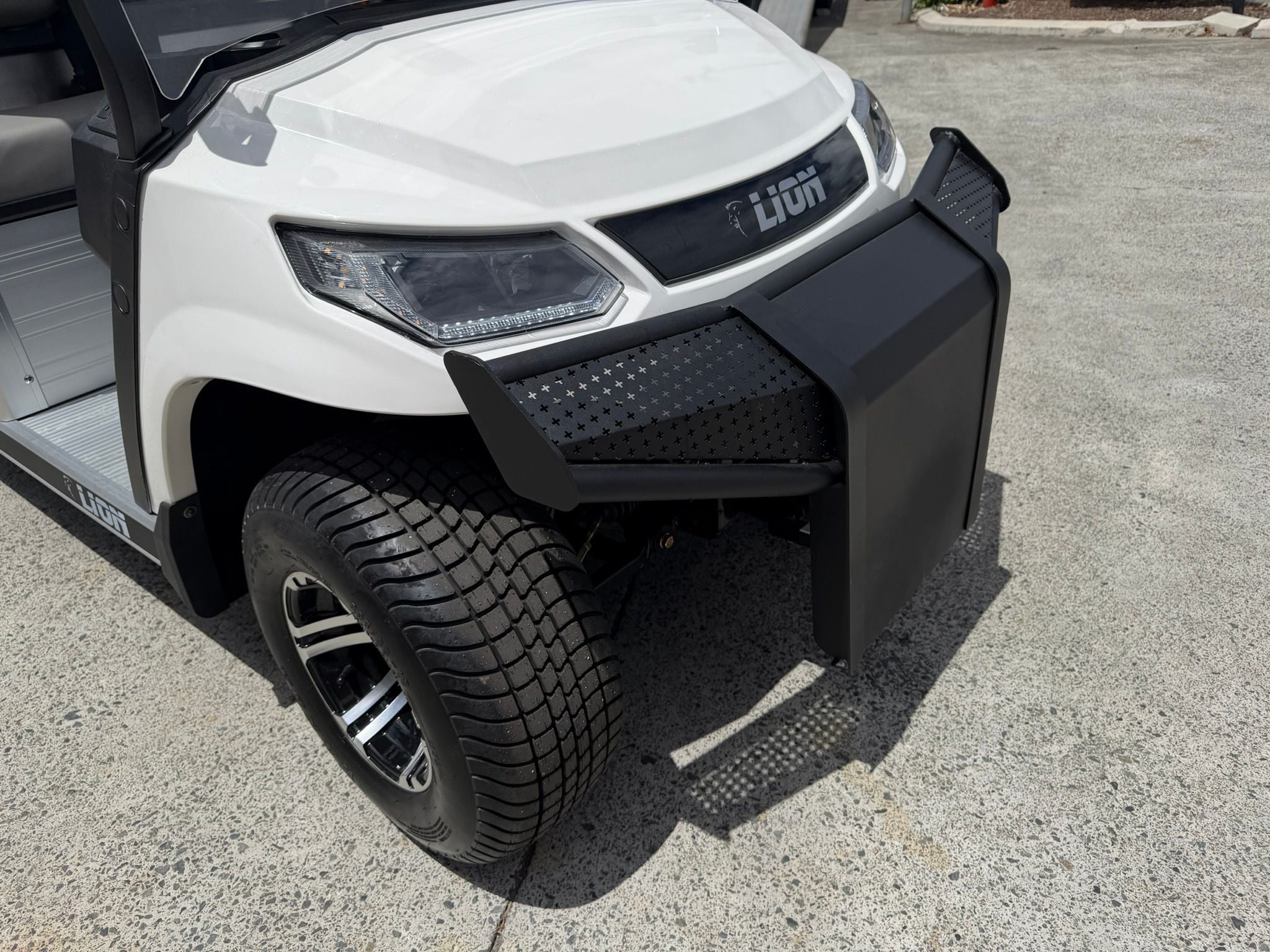

• Front bulbar
• Towbar
• Electric tray tipper

OPTIONAL EXTRAS

• Rotating beacon
• Tailor made all weather curtains

Ready for work! The Carrymax XL is the perfect choice for your utility needs. Right at home at sporting clubs/ caravan parks/warehouse/gardens/schools and universities. Long battery life and reliability, a real standout on this allrounder. Our popular Carrymax XL has the longer tray length at 1800mm. Ready to transport a large range of goods and services.

STANDARD INCLUSIONS

• Metallic bodywork
• Deluxe LED lighting system
• Seatbelts
• Speedometer & state of charge meter
• Mag wheels
• Onboard charger
• Dual USB port
• Mirrors

PERFORMANCE

• Seating - 2 person
• Max speed - Adjustable up to 25KPH
• Turning circle - 5.1m
• Climbing availability - 25%
• Brake distance - <5m KEY

COMPONENTS

• Advanced 105ah Lithium pack OR Advanced 150ah HD Lithium Pack
• 350A LEV AC Controller
• Motor - 4.0KW AC motor
• Matched RCM complied charger

DIMENSIONS

• Length - 3610mm
• Width - 1210mm
• Height- 1890mm
• Weight - 565kg w/105ah battery or 590kg with 150ah battery
• Ground clearance - 210mm
• Tray size 1410mm(L) 1150mm(W) 265mm(H)

LOAD RATINGS

• Tray capacity 500kg
• Tray tipping capacity 220kg
• Towing capacity 300kg

BRAKING/SUSPENSION/STEERING

• Hydraulic 4 wheel disc brakes
• 10’’ alloy mag wheels
• 205/65-10 4 ply tyres
• Electro magnetic park brake
• Fully independent suspension
• Rack & pinion steering

CARRYMAX INCLUSIONS

• Front bulbar
• Towbar
• Electric tray tipper

OPTIONAL EXTRAS

• Rotating beacon
• Tailor made all weather curtains
